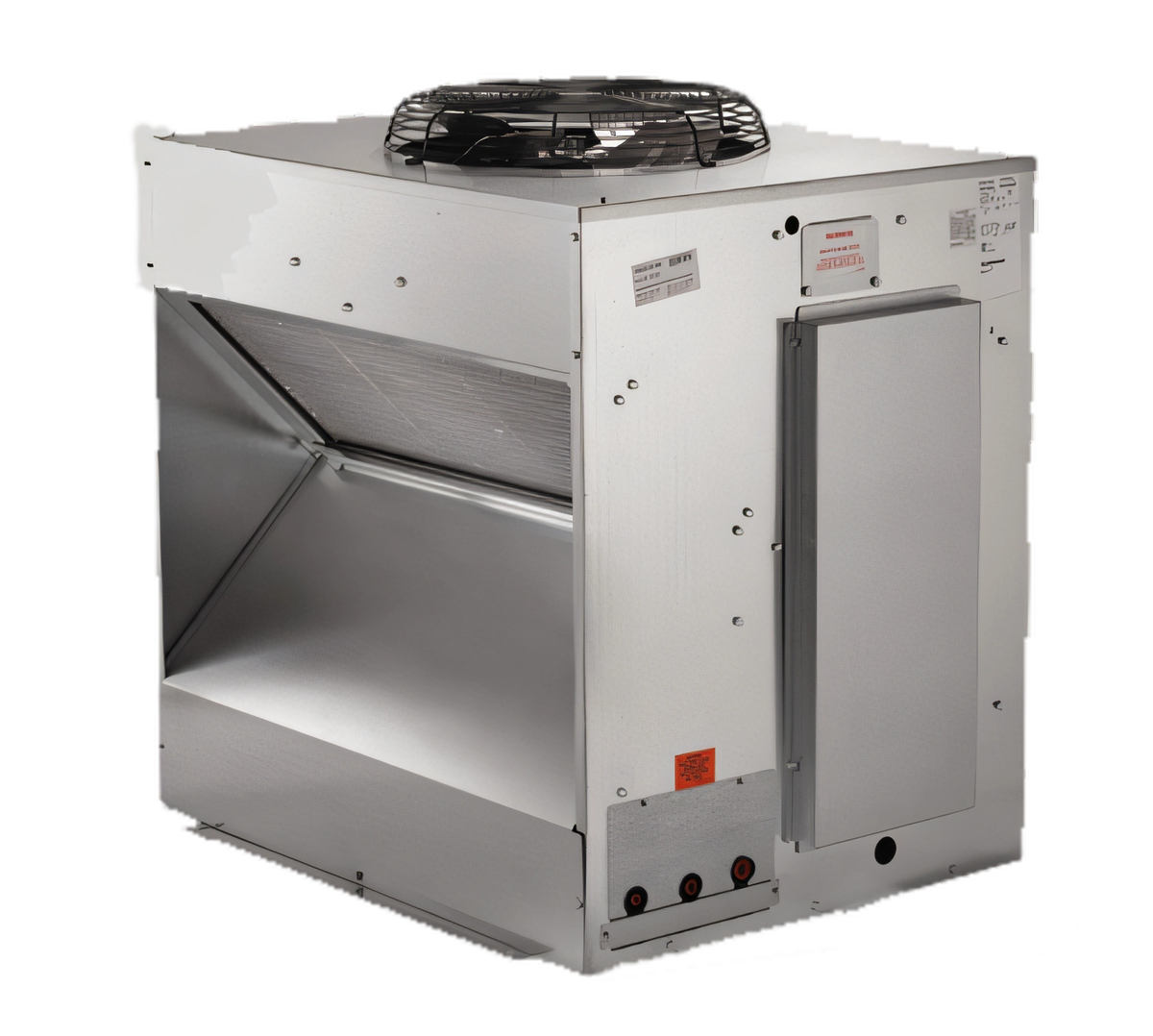

Scotsman Eclipse® ECC1410-32 Remote Air-Cooled Condensing Unit for Prodigy Plus Eclipse Ice Machine, 208-230V, 1-Phase, Up to 1,425 lb/Day
- Product type
- Remote air-cooled condensing unit
- Application
- Prodigy Plus Eclipse ice maker
- Maximum listed ice production
- Up to 1,425 lb/24 hours at 70°F air and 50°F water with EH430SL-1
- Voltage / frequency / phase
- 208-230 V / 60 Hz / 1 phase
- Current
- 14.5 A
- Maximum fuse size / HACR circuit breaker
- 30 A
Specifications
Description
ECC1410-32 is a remote air-cooled condensing unit dedicated to the Prodigy Plus Eclipse ice maker.
It is specified for 208-230 V, 60 Hz, single-phase operation and up to 1,425 lb of ice production per 24 hours when matched to the applicable ice machine.
- One-piece design helps simplify installation and service.
- Designed to dissipate heat away from the ice machine and minimize air-conditioning load.
- Specified for operation across an outdoor temperature range of -20°F to 120°F.
Overall Dimensions:
39.09"W x 32.06"D x 39.75"HProduct Weight:
310.0 lbRemote air-cooled condensing unit
Dedicated condensing unit for a Prodigy Plus Eclipse ice maker.
One-piece design
Designed to make installation and service easier.
Heat dissipation
Dissipates heat away from the ice machine and minimizes air-conditioning load.
Outdoor operating range
Able to operate from -20°F to 120°F.
Electrical configuration
208-230 V, 60 Hz, single phase, with 14.5 A specified current.
Energy-efficient components
Uses components identified as energy efficient to help save on utility costs.
Corrosion resistance
Designed with improved corrosion resistance to increase unit life.
