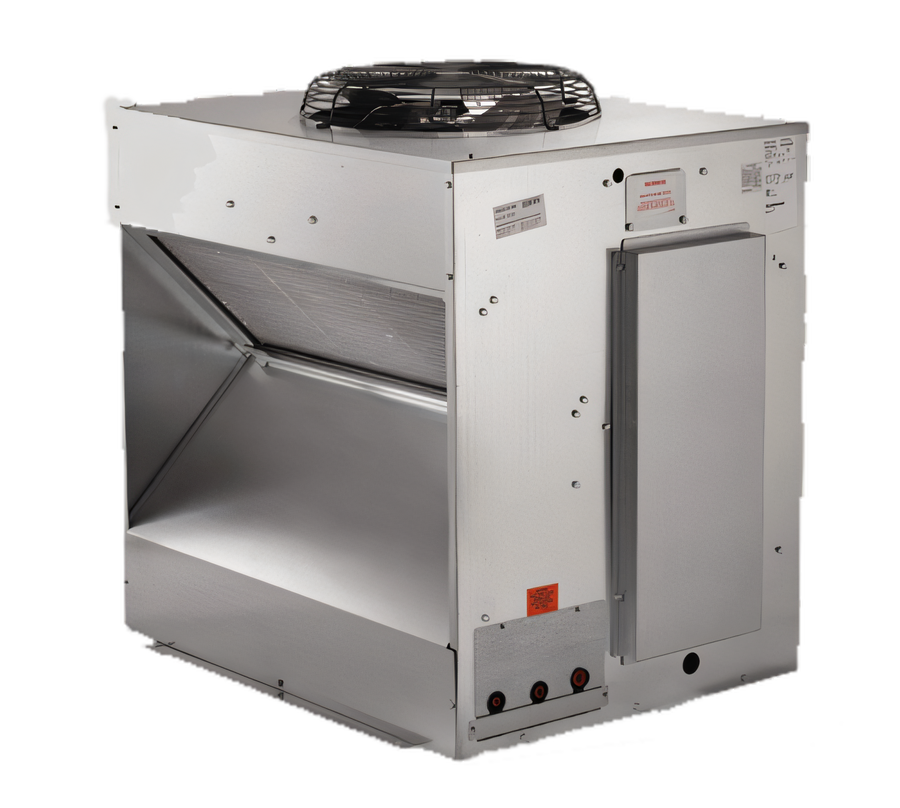

Scotsman Eclipse ECC1410-3 Air Cooled Remote Condensing Unit for Prodigy Plus Eclipse Ice Makers

208-230 Volts, 3-Phase, Up to 1,425 lb per 24 Hours

By moving heat away from the ice maker, this remote condenser helps drive higher output, quieter operation, and lower HVAC load.

  • Dedicated remote condensing unit for Prodigy Plus Eclipse modular ice heads.
  • Supports up to 1,425 lb of ice production per 24 hours with compatible heads.
  • Air-cooled design helps dissipate heat away from the ice machine and reduce air conditioning load.
  • Quiet operation makes it suitable for dining and working environments.
  • One-piece construction simplifies installation and service.
  • Wide outdoor operating range from -20°F to 120°F.
  • Available insulated line sets make installation planning easier.

Overall Dimensions:

39.0"W x 32.0"D x 40.0"H

Product Weight:

310.0 lb

Dedicated Eclipse Condensing Unit

Designed for use with Prodigy Plus Eclipse modular ice heads.

Air Cooled Remote Design

Rejects heat away from the ice machine to help improve production and reduce HVAC load.

High Production Support

Works with compatible ice heads to deliver up to 1,425 lb of ice per 24 hours.

Energy-Efficient Components

Helps reduce utility costs.

Better Corrosion Resistance

Built to better resist corrosion for longer service life.

One-Piece Construction

Simplifies installation and service.

Quiet Operation

Helps keep noise down in dining and working areas.

Wide Operating Temperature Range

Operates in outdoor temperatures from -20°F to 120°F.

Ice-Machine Controlled

Designed to be controlled by the ice machine it is connected to.

Type Remote Condensing Unit
Style Air Cooled
Voltage 208-230 Volts
Hertz 60 Hz
Phase 3-Phase
Amps 9.1 Amps
Breaker Size 20 Amps
Capacity 1,425 lb per 24 Hours
Contains Headmaster Yes
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 33.5 Inches
Shipping Depth 42 Inches
Shipping Height 45.5 Inches
Shipping Weight 332 lb.

Certifications & Compliance

Warranty & Protection

3 years parts and labor on all components

Documents

PDF Cutsheet PDF Download PDF Flyer PDF Download PDF Full line brochure PDF Download PDF Parts manual PDF Download PDF Owner's manual PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is a dedicated condensing unit for Prodigy Plus Eclipse modular cube ice heads, including EH222SL-1 and EH430SL-1.
With the EH430SL-1 ice head, it can support up to 1,425 lb of ice per 24 hours under 70°F air and 50°F water conditions.
The unit is 208-230 Volts, 60 Hz, 3-phase, and is listed at 9.1 amps with a 20 amp breaker size.
Insulated line sets are available in 20 ft, 35 ft, 50 ft, and 75 ft lengths; refrigerant and brazing are required.
The unit can operate in outdoor temperatures from -20°F to 120°F.
The warranty is 3 years parts and labor on all components for commercial installations in North, South, and Central America. Residential applications are covered for 1 year parts and labor.
