Scotsman Eclipse ECC1200-32 Air-Cooled Remote Condensing Unit for Prodigy Plus Eclipse Ice Makers, 1330 lb/24 Hours, 208-230V, 1-Phase

SKU: ECC1200-32
$5,833.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Disposable Tableware Disposables & Consumables New Arrivals Scotsman

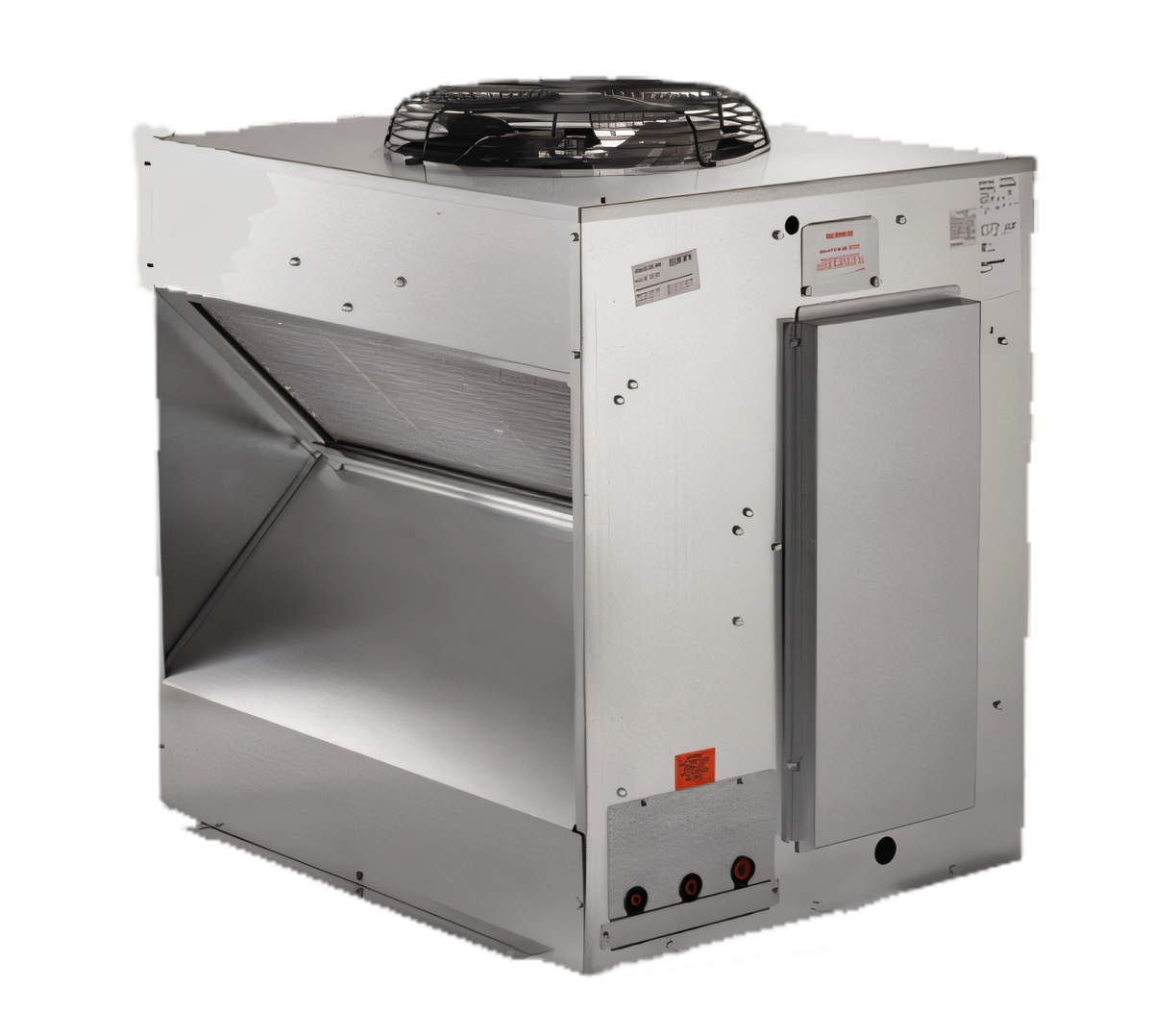

Scotsman Eclipse ECC1200-32 Air-Cooled Remote Condensing Unit for Prodigy Plus Eclipse Ice Makers, 1330 lb/24 Hours, 208-230V, 1-Phase

Dedicated remote condenser; line sets sold separately.

Built for Prodigy Plus Eclipse ice makers, this remote condensing unit helps deliver high ice output while moving heat and noise away from the machine.

  • Dedicated remote condensing unit for Prodigy Plus Eclipse ice machines.
  • Supports up to 1330 lb of ice per 24 hours under 70°F air/50°F water conditions.
  • Air-cooled design helps maximize ice production and reduce air-conditioning load.
  • Energy-efficient components and corrosion resistance are designed to improve operating value and service life.
  • One-piece construction simplifies installation and service.
  • Quiet operation makes it well suited for dining and working environments.
  • Designed to operate in outdoor temperatures from -20°F to 120°F.

Overall Dimensions:

39.0"W x 32.0"D x 40.0"H

Product Weight:

310.0 lb

Dedicated Eclipse Compatibility

Made as a dedicated condensing unit for Prodigy Plus Eclipse ice machines.

Air-Cooled Remote Design

Moves heat away from the ice machine to help maximize production and reduce room heat gain.

Energy-Efficient Components

Designed to help lower utility costs over time.

Corrosion Resistance

Built to better resist corrosion for improved longevity.

One-Piece Construction

Simplifies installation and makes service easier.

Quiet Operation

Helps keep noise down in dining and working environments.

Wide Operating Temperature Range

Able to operate in outdoor ambient temperatures from -20°F to 120°F.

Insulated Line Set Options

Available line sets include 20 ft, 35 ft, 50 ft, and 75 ft lengths; refrigerant and brazing are required.

Type Remote Condensing Unit
Style Air Cooled
Capacity 1330 lb per 24 Hours
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 17.7 Amps
Breaker Size 30 Amps
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 42 Inches
Shipping Depth 33.5 Inches
Shipping Height 45.5 Inches
Shipping Weight 310 lb.

Certifications & Compliance

Warranty & Protection

3 years parts and labor on all components.

Documents

PDF Cutsheet PDF Download PDF Parts manual PDF Download PDF Full line brochure PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It is a dedicated condensing unit for Prodigy Plus Eclipse ice machines, and the document lists EH330SL-1 as a compatible modular ice head option.
This model is an air-cooled remote condensing unit.
The ECC1200-32 supports up to 1330 lb per 24 hours at 70°F air and 50°F water conditions.
It requires 208-230V, 60 Hz, 1-phase power and is listed with 17.7 amps and a 30 amp max fuse or HACR circuit breaker.
No. Insulated line sets are sold separately in 20 ft, 35 ft, 50 ft, and 75 ft lengths, and refrigerant plus brazing are required.
The unit is designed to operate in outdoor temperatures from -20°F to 120°F.
