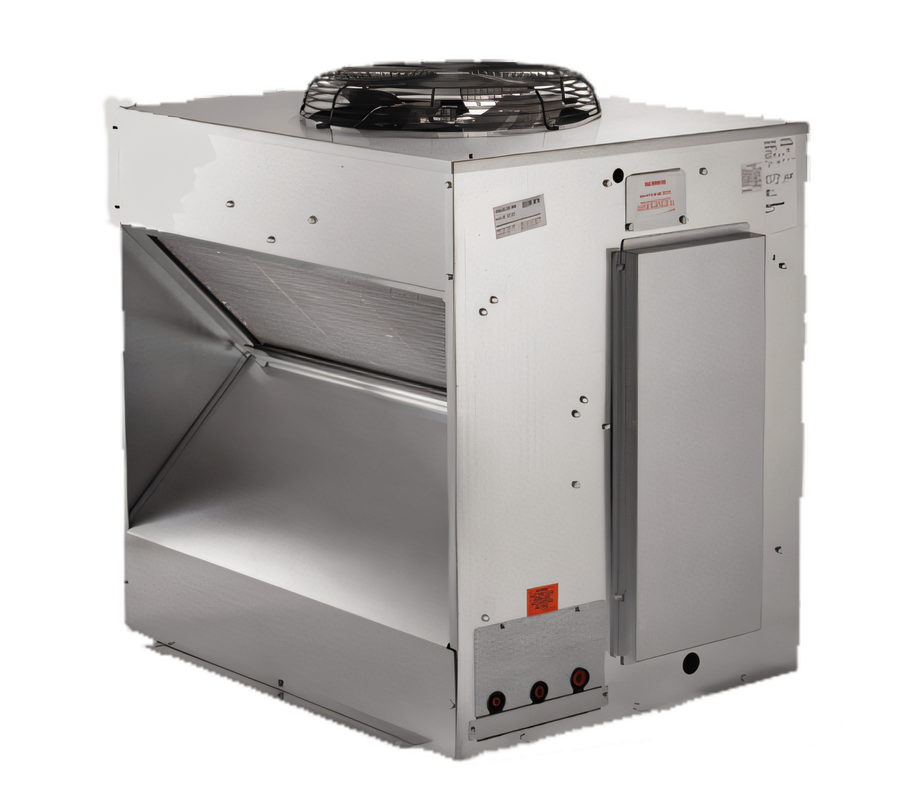

Scotsman Eclipse® ECC0800-3 Remote Air-Cooled Condensing Unit, 850 lb/24 Hr, 208-230V, 3-Phase
- Application
- Remote condensing unit for Prodigy Eclipse ice maker
- Condenser type
- Air-cooled, remote
- Listed ice production
- 700 lb/24 hours at 90°F air/70°F water; 850 lb/24 hours at 70°F air/50°F water
- Electrical
- 208-230 V / 60 Hz / 3 phase
- Minimum circuit ampacity
- 10.6 A
- Maximum fuse or HACR circuit breaker
- 15 A
Specifications
Description
Scotsman ECC0800-3 is a remote, air-cooled condensing unit for a Prodigy Eclipse ice maker. With the listed EH222SL-1 modular ice head pairing, it produces 850 lb of ice per 24 hours at 70°F air and 50°F water conditions.
Its remote configuration dissipates heat away from the ice machine to minimize air-conditioning load and support quieter operation in dining and working environments.
- 208-230/60/3-phase electrical service
- 10.6 A minimum circuit ampacity
- One-piece design for easier installation and service
- Listed outdoor operating range of -20°F to 120°F
- Headmaster included according to the exact-model specifications
Overall Dimensions:
39.09"W x 32.06"D x 39.75"HProduct Weight:
310.0 lbRemote air-cooled condensing
Dedicated remote condensing unit for a Prodigy Eclipse ice maker.
Remote heat dissipation
Dissipates heat away from the ice machine to minimize air-conditioning load and support quieter operation in dining and working environments.
One-piece design
The one-piece design is intended to make installation and service easier.
Wide outdoor operating range
Able to operate in an outdoor temperature range from -20°F to 120°F.
Headmaster
The exact-model specifications list a headmaster.
