Sapphire 48-Inch Underbar Ice Bin With 10-Circuit Cold Plate, 161 lb. Capacity
Sapphire 48-Inch Underbar Ice Bin With 10-Circuit Cold Plate, 161 lb. Capacity
12-Inch Deep Insulated Bin, 4-Inch Backsplash, 304 Stainless Steel
This 48-inch underbar ice bin combines a 10-circuit cold plate, insulated stainless steel construction, and built-in drainage for efficient bar service.
- 48-inch underbar ice bin with 161 lb. ice capacity.
- Pre-mix aluminum 10-circuit cold plate with stainless steel tubing helps keep product colder during service.
- 18-gauge 304 stainless steel construction with galvanized steel support components for durability.
- Includes a two-piece sliding lid, interior bottle holders, and a 13/16" drain pipe.
- Ships K.D. for easier freight handling and simple assembly.
Overall Dimensions:

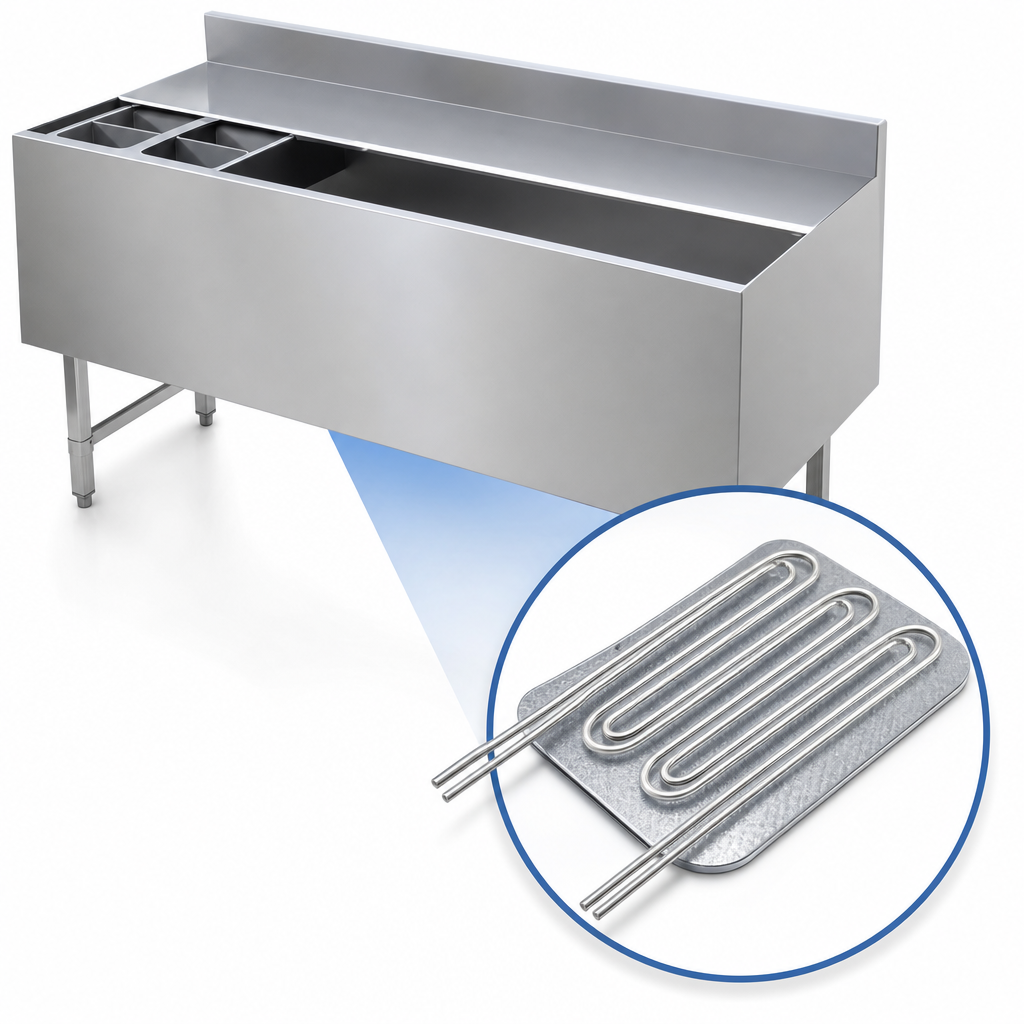

48.0"W x 18.5"D x 30.0"H10-Circuit Cold Plate
Pre-mix aluminum cold plate with stainless steel tubing helps maintain cold product during service.

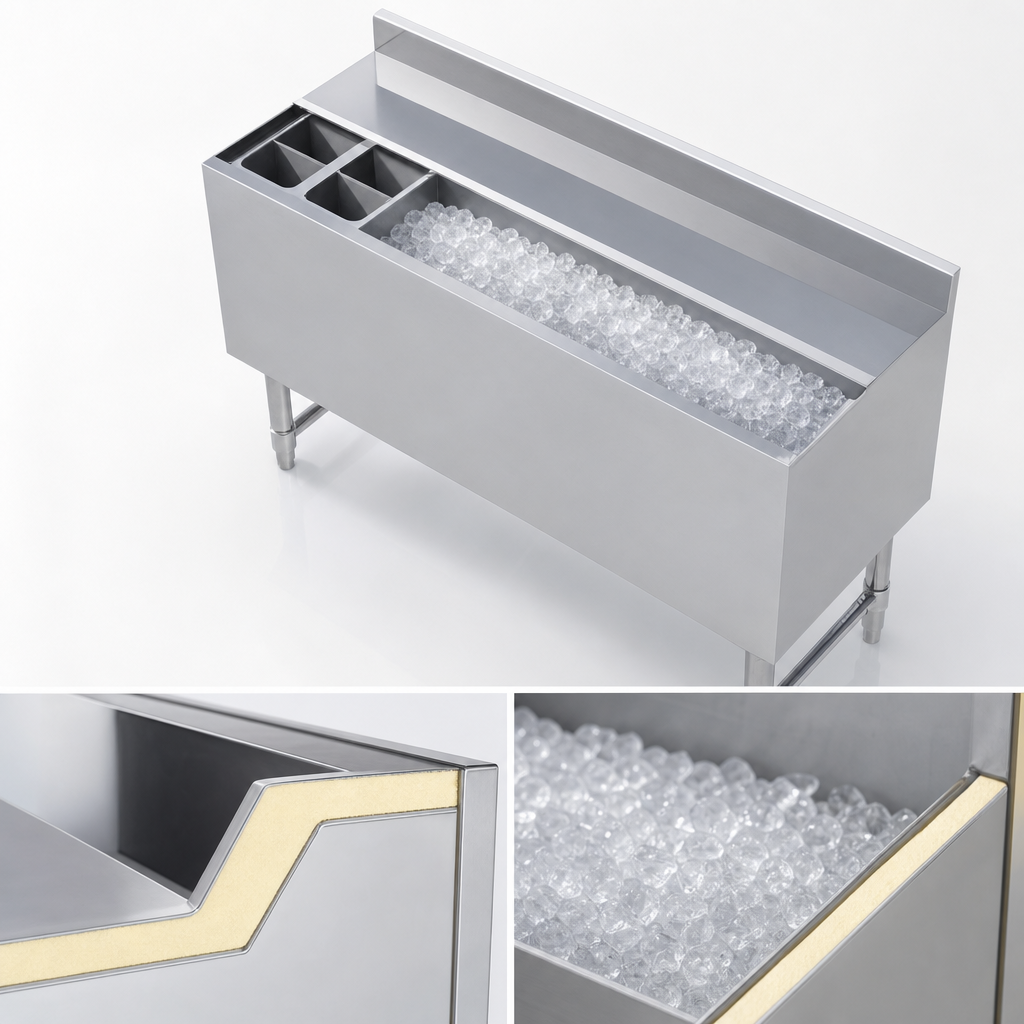

Insulated Ice Bin
12-inch deep bin is insulated with polyurethane foam to help reduce ice melt.
4-Inch Backsplash
Top includes a 4-inch backsplash and flat front edge for bar installation.
304 Stainless Steel Construction
Top, bin, apron, bottom, rear, and sliding lid are built from 18-gauge 304 stainless steel.
Two-Piece Sliding Lid
Includes a two-piece 18-gauge sliding lid for convenient access to the bin.
Galvanized Steel Base Support
Galvanized steel legs, sockets, and adjustable cross-bars add strength and stability.
Adjustable Bullet Feet
1-inch adjustable plastic bullet feet help level the unit during installation.
Built-In Drain
Includes a 13/16-inch drain-pipe with 1-inch IPS drain connection.
Interior Bottle Holders
Two plastic bottle holders are included inside the bin for organization.
Ships Knocked Down
Unit ships K.D. but is designed for easy assembly.
