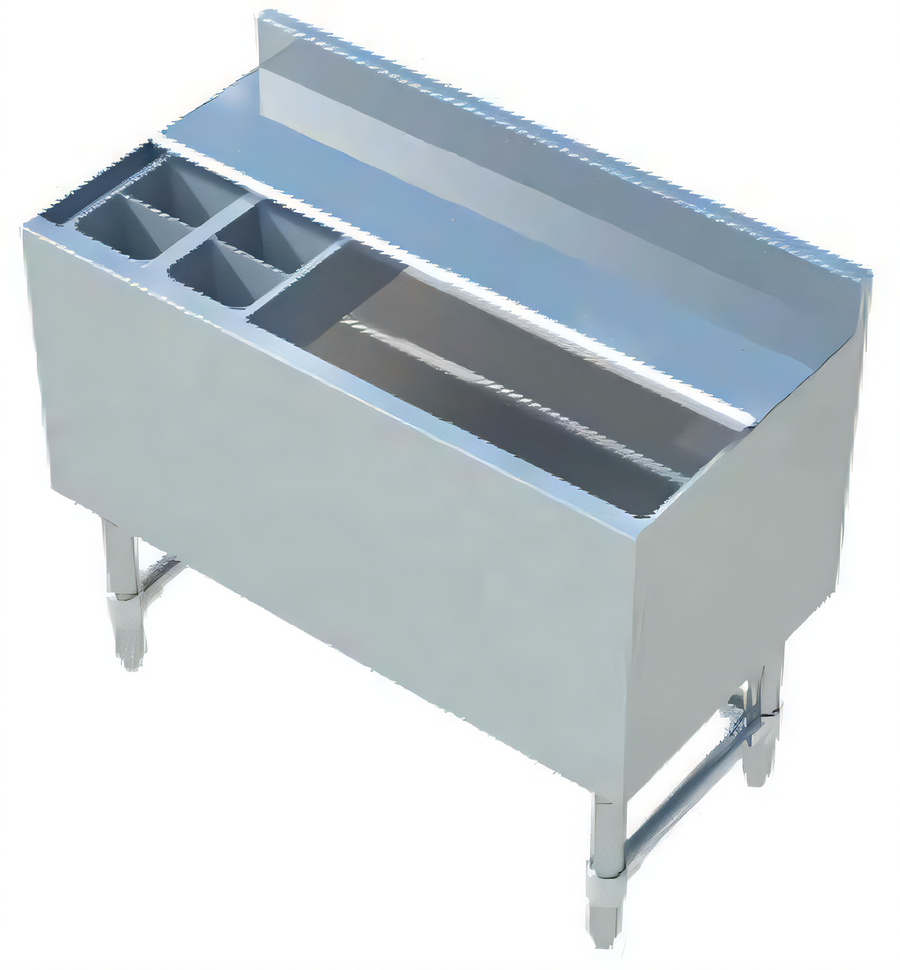

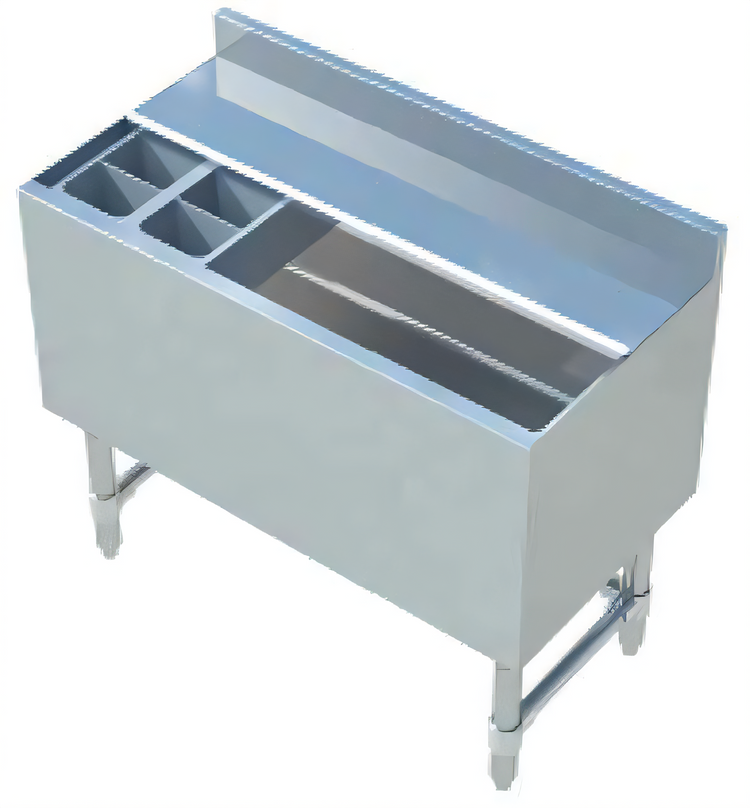

Sapphire 36-Inch Underbar Ice Bin with 10-Circuit Cold Plate, 12-Inch Deep, 304 Stainless Steel
Sapphire 36-Inch Underbar Ice Bin with 10-Circuit Cold Plate, 12-Inch Deep, 304 Stainless Steel
Insulated Bin with Two-Piece Sliding Lid and 119 lb Capacity
Built for busy bars, this insulated underbar ice bin combines a 10-circuit cold plate, durable 304 stainless steel construction, and a convenient sliding lid for efficient beverage service.
- 36-inch underbar ice bin designed for high-volume beverage service.
- Integrated 10-circuit cold plate helps keep drinks chilled while ice is stored.
- 18-gauge 304 stainless steel construction supports long-term commercial use.
- Polyurethane foam insulation helps reduce ice melt and maintain bin temperature.
- Includes a two-piece sliding lid, interior bottle holders, and a 13/16-inch drain pipe.
- Galvanized steel legs with adjustable bullet feet help provide stable, level support.
- Ships K.D. for easier freight handling and straightforward assembly.
Overall Dimensions:

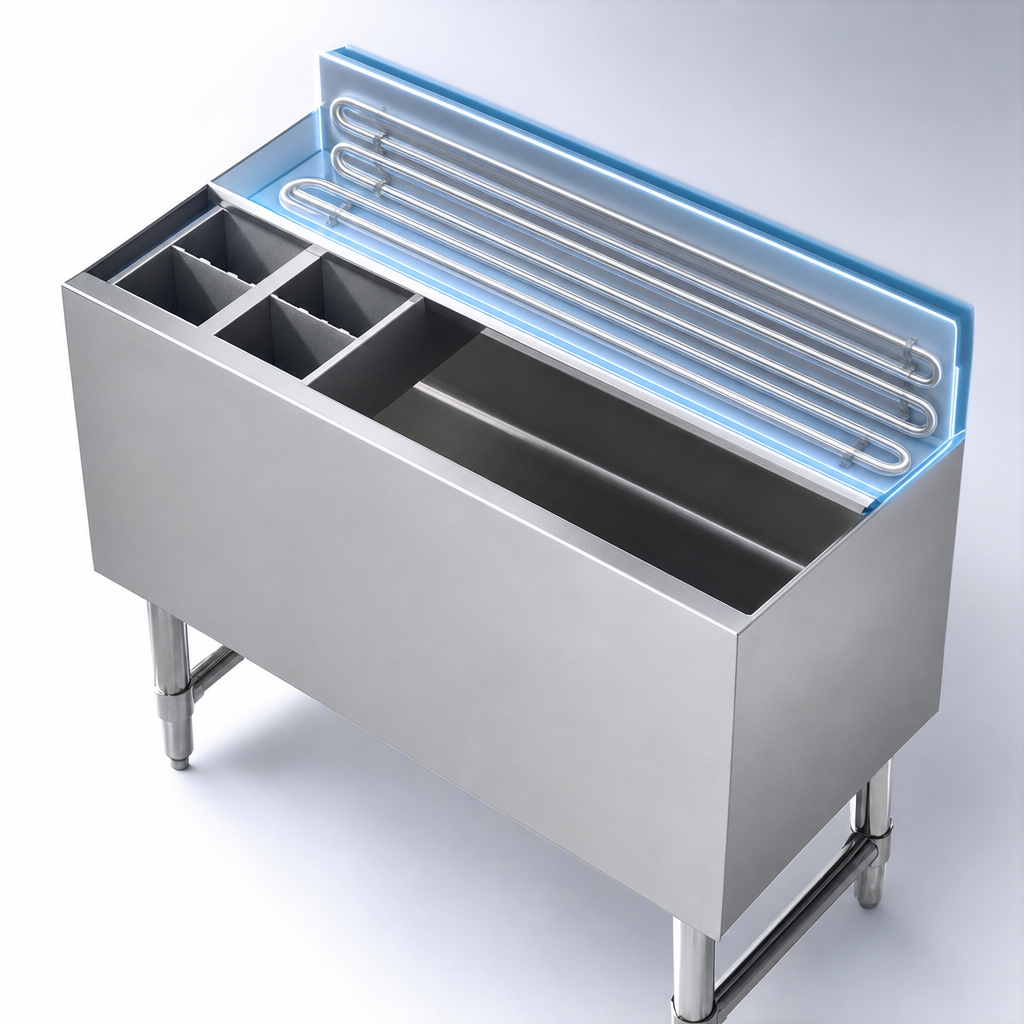

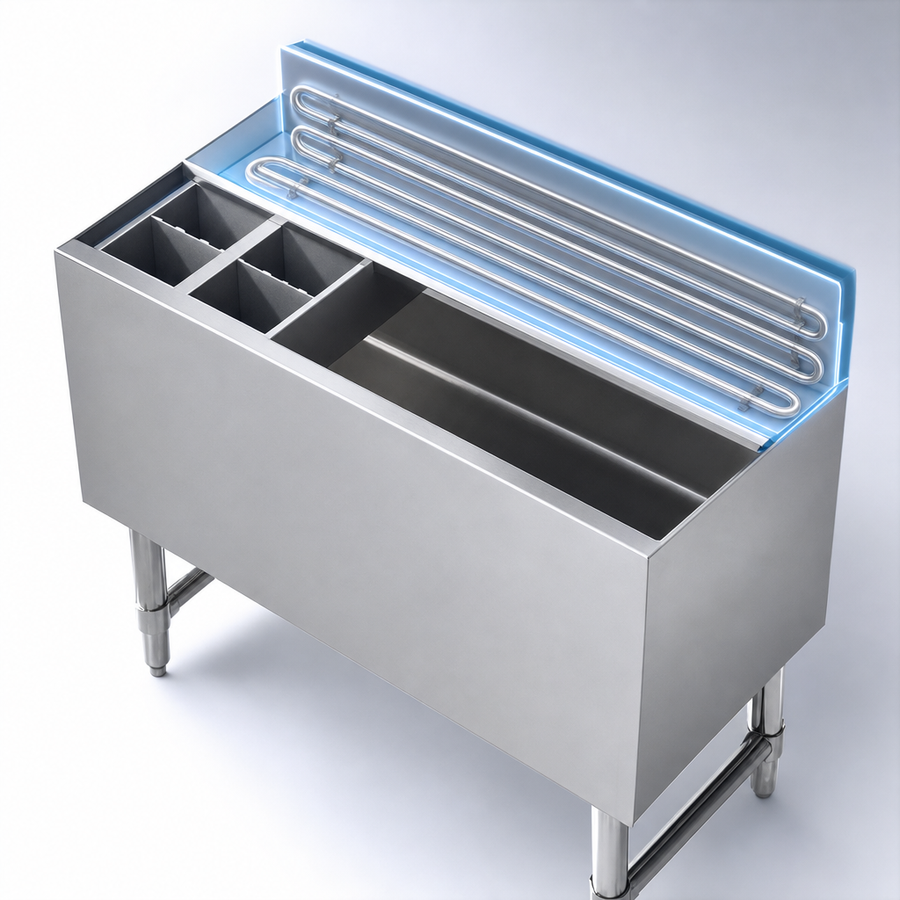

36.0"W x 18.5"D x 30.0"H10-Circuit Cold Plate
Pre-mix aluminum cold plate with stainless steel tubing helps support efficient beverage cooling.

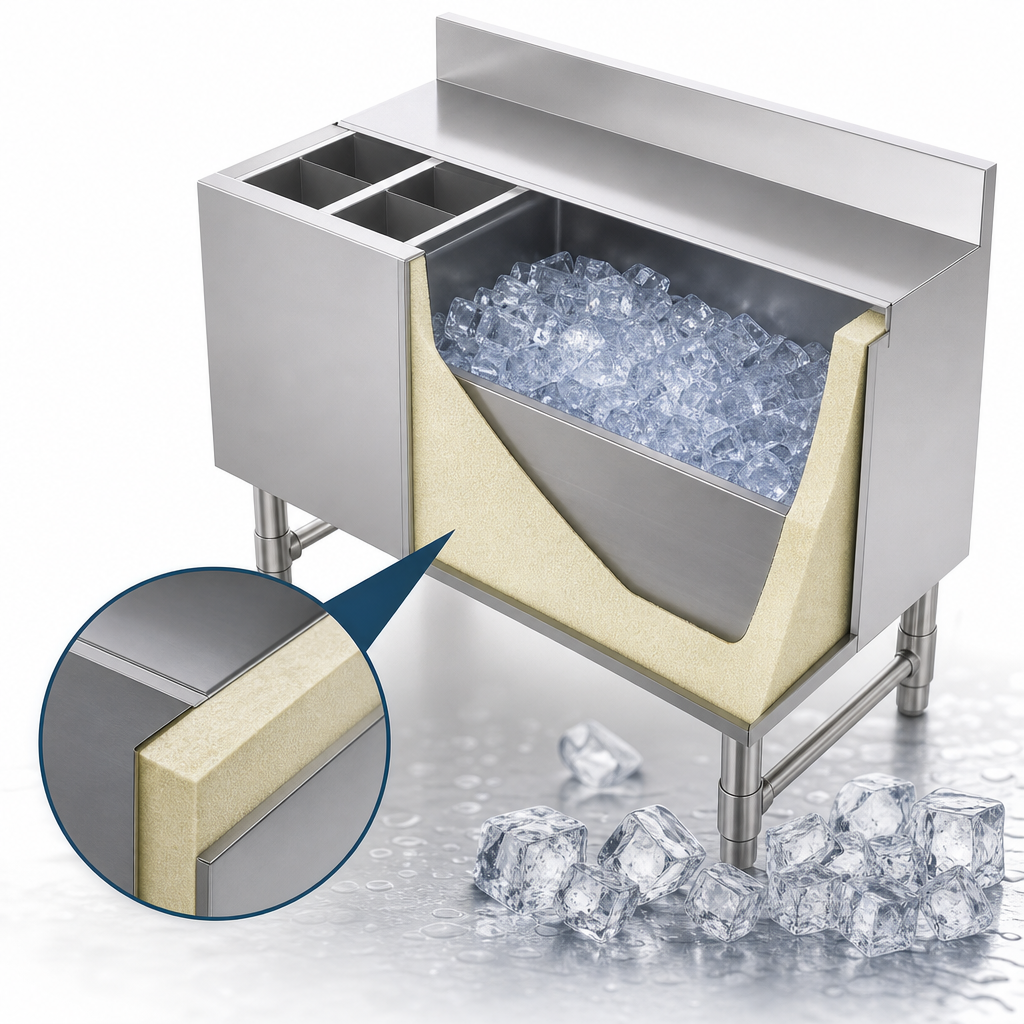

Insulated Ice Bin
Polyurethane foam insulation helps retain cold temperatures and reduce ice melt.
304 Stainless Steel Construction
Top, bin, apron, sides, bottom, rear, and sliding lid are fabricated from 18-gauge 304 stainless steel.
Two-Piece Sliding Lid
Included sliding lid provides convenient access to the bin while helping cover stored ice.
Sanitary Top Design
Coved corners, a 4-inch backsplash, and polished welded areas support a cleanable bar-service surface.
Reinforced Galvanized Base
Galvanized steel legs, sockets, and cross-bars add stability and support.
Adjustable Bullet Feet
1-inch adjustable plastic bullet feet help level the unit on uneven floors.
Built-In Drain
Includes a 13/16-inch drain pipe with a 1-inch IPS drain connection.
Interior Bottle Holders
Two interior plastic bottle holders are included for added organization inside the bin.
Knock-Down Shipment
Unit ships K.D. and is designed for easy assembly.
