Sapphire Manufacturing Three-Compartment Underbar Sink with Right Drainboard, 48-Inch, 304 Stainless Steel

SKU: SMBS-3R
$625.04
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Beverage Equipment Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Sapphire Manufacturing Underbar Equipment

Sapphire Manufacturing Three-Compartment Underbar Sink with Right Drainboard, 48-Inch, 304 Stainless Steel

10" x 14" x 10" bowls, 4" backsplash, includes faucet and overflow kit

A durable 3-compartment underbar sink built for high-volume beverage service, with a right-side drainboard and included faucet package.

  • Three-compartment underbar sink designed for efficient bar and beverage prep.
  • 12-inch right-side drainboard provides a convenient landing area for glassware and dishes.
  • 20-gauge 304 stainless steel top, bowls, backsplash, and apron help resist corrosion and wear.
  • Includes a 4-inch center splash-mount faucet with 12-inch swing spout, basket drains, and overflow tube kit.
  • Galvanized steel legs, welded leg sockets, and adjustable plastic bullet feet add stability.
  • Ships knocked down for easier handling and assembly.
  • NSF certified for commercial foodservice use.

Overall Dimensions:

48.0"W x 18.75"D x 32.0"H

Three Compartment Layout

Provides three separate sink bowls for washing, rinsing, and sanitizing tasks.

Three Compartment Layout

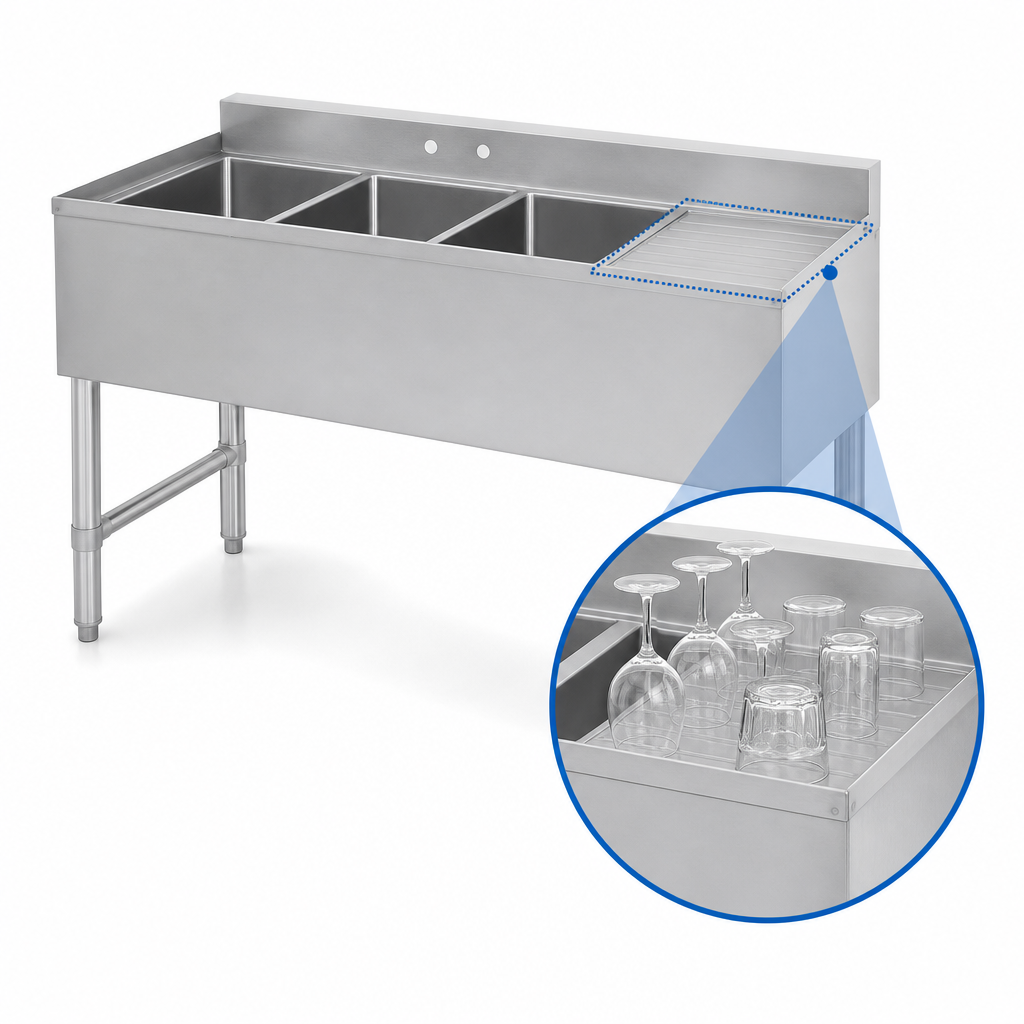

Right-Side Drainboard

Includes a 12-inch drainboard on the right for staging and drying glassware or dishes.

Right-Side Drainboard

304 Stainless Steel Construction

Top, bowls, backsplash, and apron are made from 20-gauge 304 stainless steel for durability and corrosion resistance.

4-Inch Backsplash

The 4-inch high backsplash helps protect the wall behind the sink from splashes.

Included Faucet Package

Supplied with a 4-inch center splash-mount faucet with 12-inch swing spout, item TWMF-412, and a two-year warranty.

Included Drain Components

Includes three 1-1/2-inch basket drains and an overflow tube kit.

Stability-Focused Base

Welded stainless steel leg sockets, galvanized steel legs, cross-bars, and adjustable plastic bullet feet provide support and leveling.

Knocked Down Shipment

Ships K.D. for easier transport and on-site assembly.

Type Underbar Sink
Style 3 Compartment Bar Sink
Installation Type Floor Model
Material 304 Stainless Steel
Finish Sanitary #4
Compartments 3
Pan Size 10 Inches x 14 Inches x 10 Inches
Backsplash Height 4 Inches
Drainboard Side Right
Shipping Width 48 Inches
Shipping Depth 19 Inches
Shipping Height 32 Inches
Shipping Weight 85 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Two-year warranty on the included faucet

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Each compartment is 10 inches deep, 14 inches front-to-back, and 10 inches high.
Yes. The SMBS-3R includes a 12-inch drainboard on the right side.
It includes a 4-inch center splash-mount faucet with 12-inch swing spout, three basket drains, and an overflow tube kit.
The top, bowls, backsplash, and apron are 20-gauge 304 stainless steel, and the legs are galvanized steel.
Yes. The unit ships knocked down and is designed for easy assembly.
Yes. The sink is NSF certified.
