Sapphire Manufacturing

Sapphire SMBS-3D18 72-Inch Three-Compartment Underbar Sink with Left & Right Drainboards

SKU: SMBS-3D18
$672.72
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

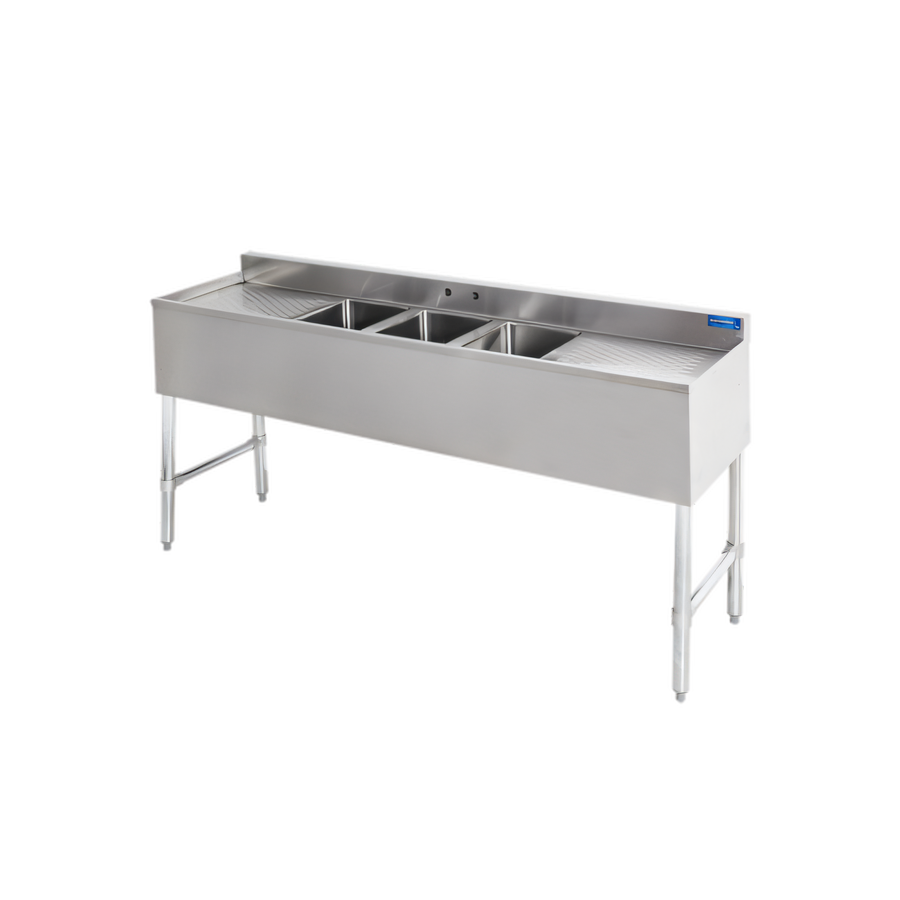

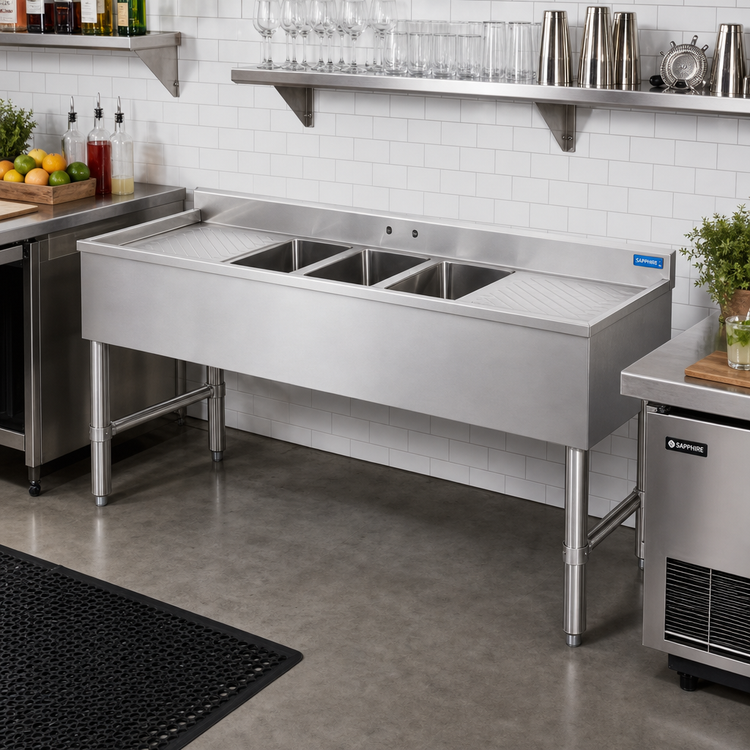

Sapphire SMBS-3D18 72-Inch Three-Compartment Underbar Sink with Left & Right Drainboards

10 x 14 x 10 bowls, 19-inch drainboards, 304 stainless steel construction

Built for busy bars, this 72-inch underbar sink combines three roomy compartments, dual drainboards, and a full stainless-steel build in one easy-to-assemble package.

  • Three 10 x 14 x 10 compartments provide dedicated sink space for bar cleanup.
  • 19-inch drainboards on both the left and right add useful landing and drying space.
  • 20 gauge 304 stainless steel top, bowls, backsplash, and apron help resist corrosion.
  • Includes a center-mount faucet, overflow kit, and basket drains for a complete setup.
  • Galvanized steel legs with adjustable plastic bullet feet provide stable support.
  • Ships knocked down for easier delivery and assembly.
  • NSF certified for commercial sanitation requirements.

Overall Dimensions:

72.0"W x 18.75"D x 32.0"H

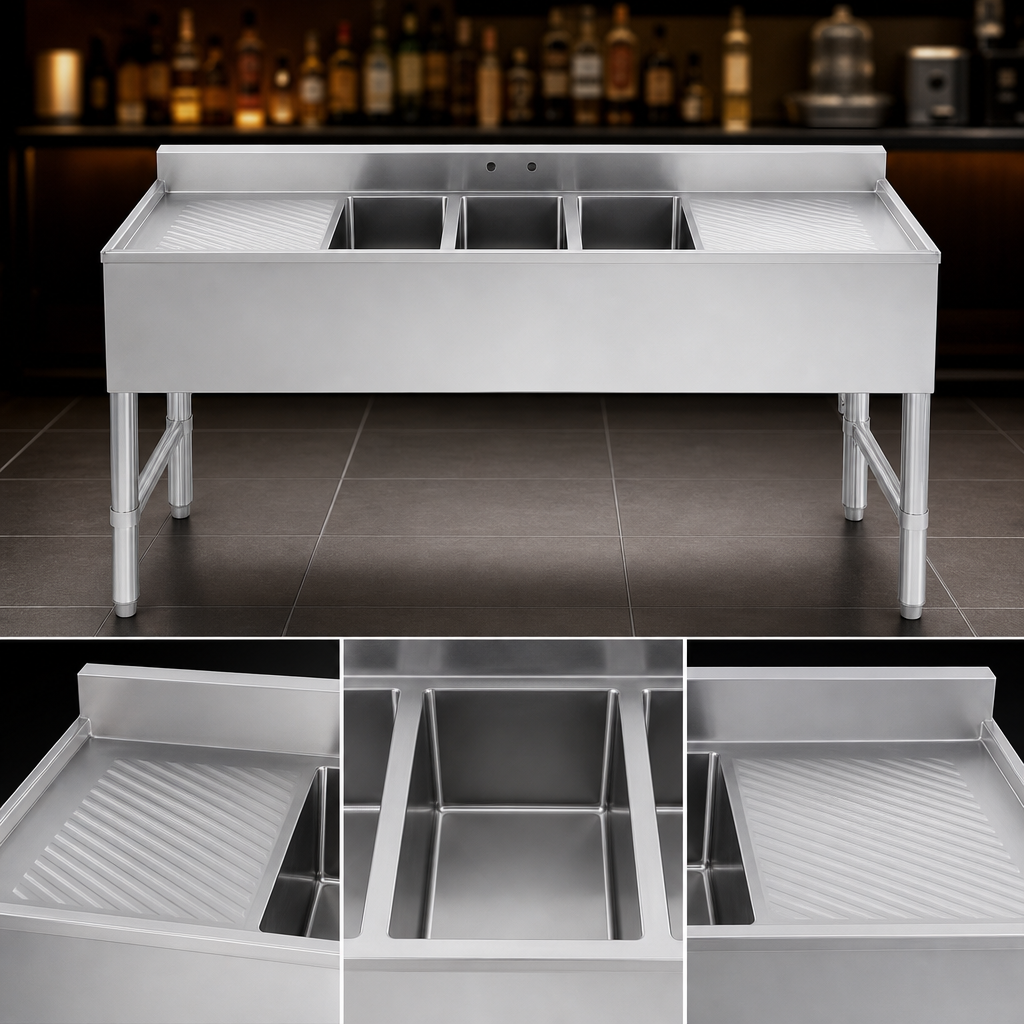

Three-Compartment Sink Design

Includes three separate compartments with 10 x 14 x 10 bowl sizes for efficient bar service.

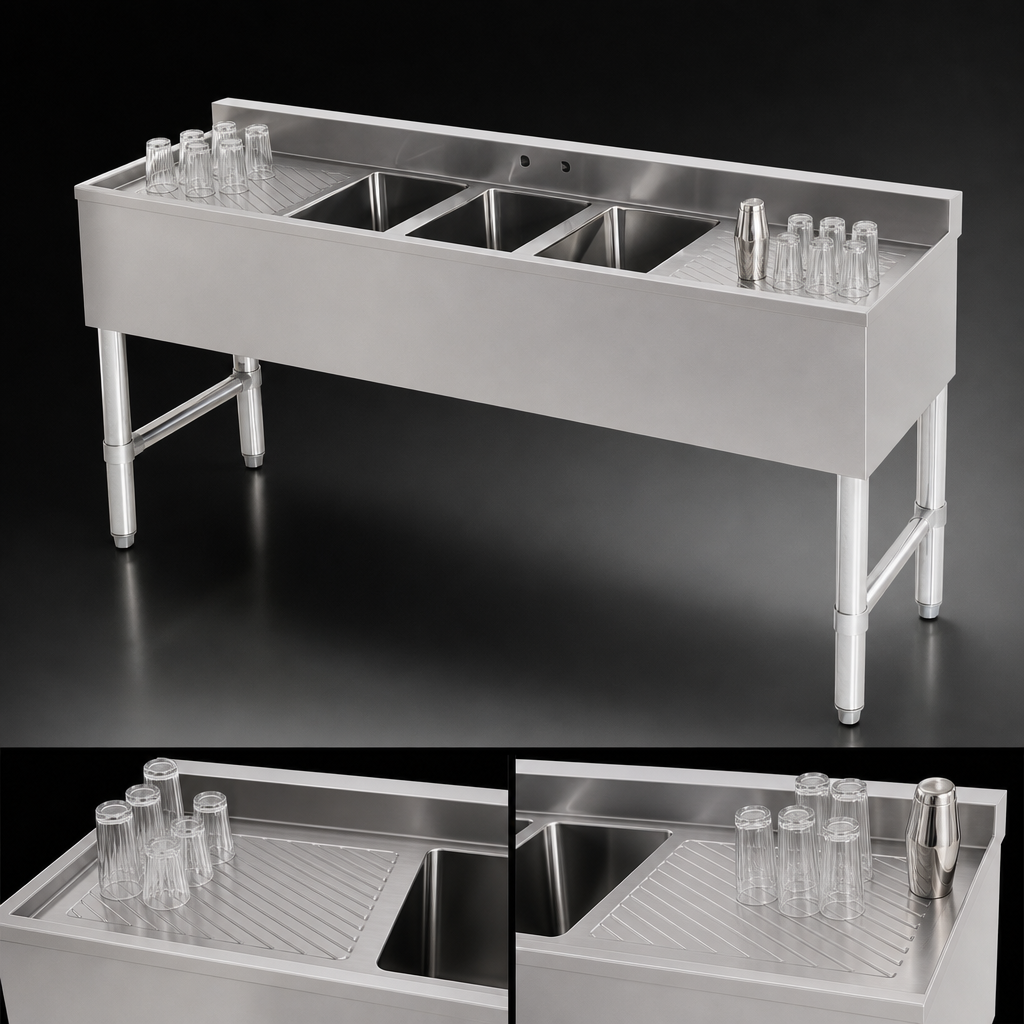

Dual 19-Inch Drainboards

Drainboards on both the left and right sides provide extra space for glassware, prep, and drying.

304 Stainless Steel Construction

Top, bowls, backsplash, and apron are made from 20 gauge 304 stainless steel for durability and easy cleaning.

Included Faucet Package

Supplied with a 4-inch center wall-mount faucet and 12-inch swing spout, Tap item #TWMF-412.

Overflow And Drain Hardware Included

Includes an overflow tube kit and three 1-1/2-inch basket drains for installation.

Heavy-Duty Base Support

Features galvanized steel legs, welded leg sockets, adjustable plastic bullet feet, and cross-bars for added stability.

Knocked-Down Shipping

Ships K.D. and is designed for easy assembly on site.

NSF Certified

Certified to NSF STD. 2 for commercial sanitation compliance.

Type Underbar Sink
Style Three Compartment
Installation Type Floor Model
Material 304 Stainless Steel
Finish Sanitary #4
Compartments 3
Bowl Size 10 Inches x 14 Inches x 10 Inches
Backsplash Height 4 Inches
Drainboard Length 19 Inches Each Side
Leg Material Galvanized Steel
Selling Unit Each
Units Per Case 1
Shipping Width 72 Inches
Shipping Depth 19 Inches
Shipping Height 32 Inches
Shipping Weight 85 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Included faucet carries a two-year warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has three compartments with 10 x 14 x 10 bowls.
Yes. It includes 19-inch drainboards on both the left and right sides.
The package includes a 4-inch center wall-mount faucet with 12-inch swing spout, three 1-1/2-inch basket drains, and an overflow tube kit.
The top, bowls, backsplash, and apron are 20 gauge 304 stainless steel, and the legs are galvanized steel.
It ships K.D. (knocked down) and is designed for easy assembly.
Yes, it is NSF certified.
