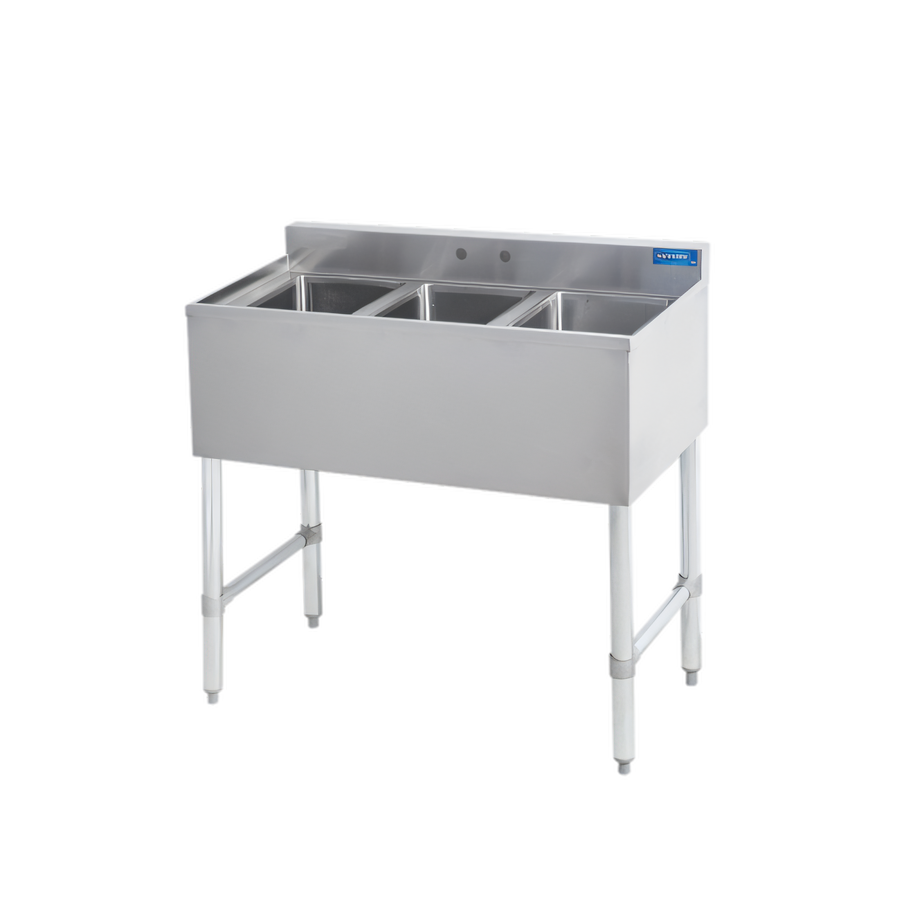

Sapphire Manufacturing Three Compartment Stainless Steel Underbar Bar Sink, No Drain Board

Model SMBS-3, 38 Inch Wide, Includes Faucet and Overflow Kit

A compact three-bowl underbar sink built from 304 stainless steel and supplied with faucet and overflow accessories for efficient beverage service.

  • Three-compartment sink is designed for busy bar and beverage stations.
  • 20-gauge 304 stainless steel top, bowls, apron, and backsplash for long-term durability.
  • No drain board design maximizes working space in tight underbar layouts.
  • Includes a 4-inch center-mount faucet with 12-inch swing spout, basket drains, and overflow kit.
  • Ships knocked down with galvanized support legs and adjustable bullet feet for easier handling.
  • NSF Standard 2 certified for commercial foodservice use.

Overall Dimensions:

38.0"W x 18.75"D x 32.0"H

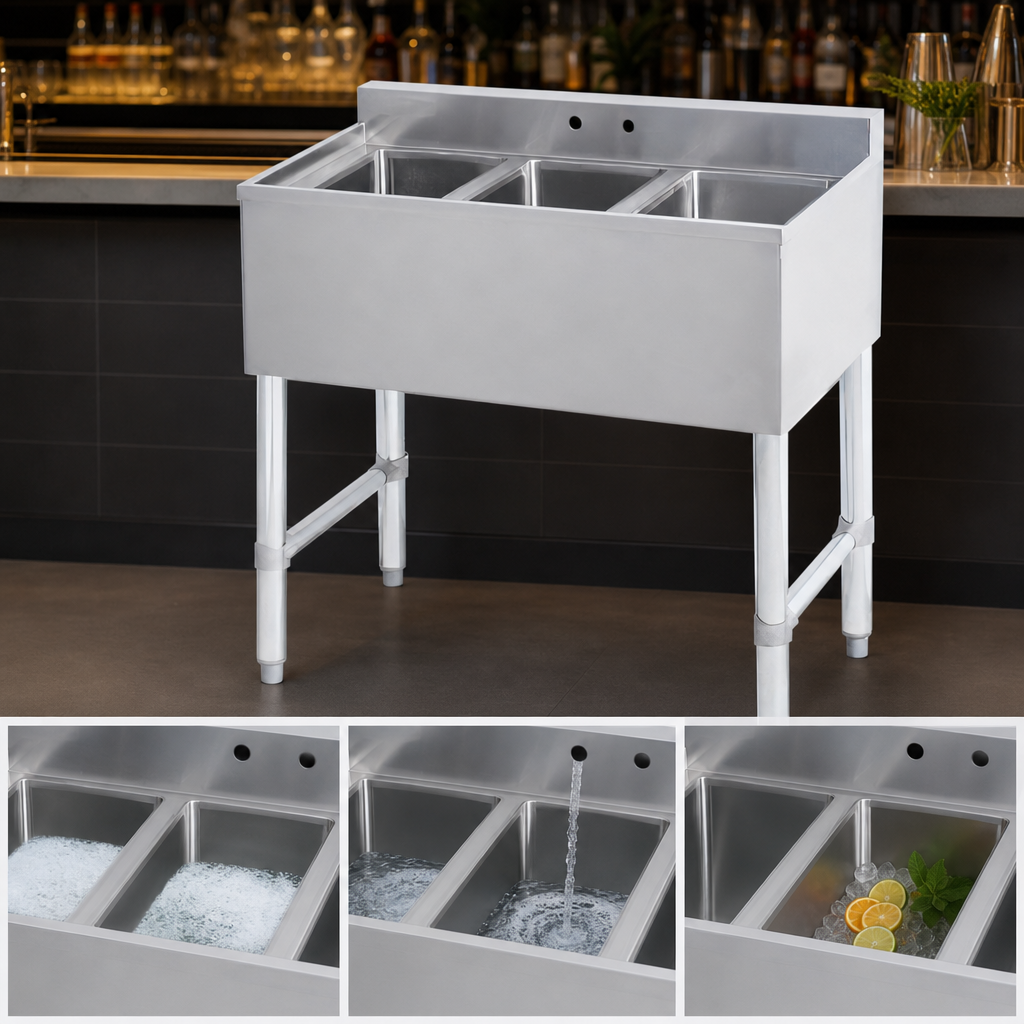

Three Compartment Layout

Provides three separate bowls for washing, rinsing, and prep tasks.

Three Compartment Layout

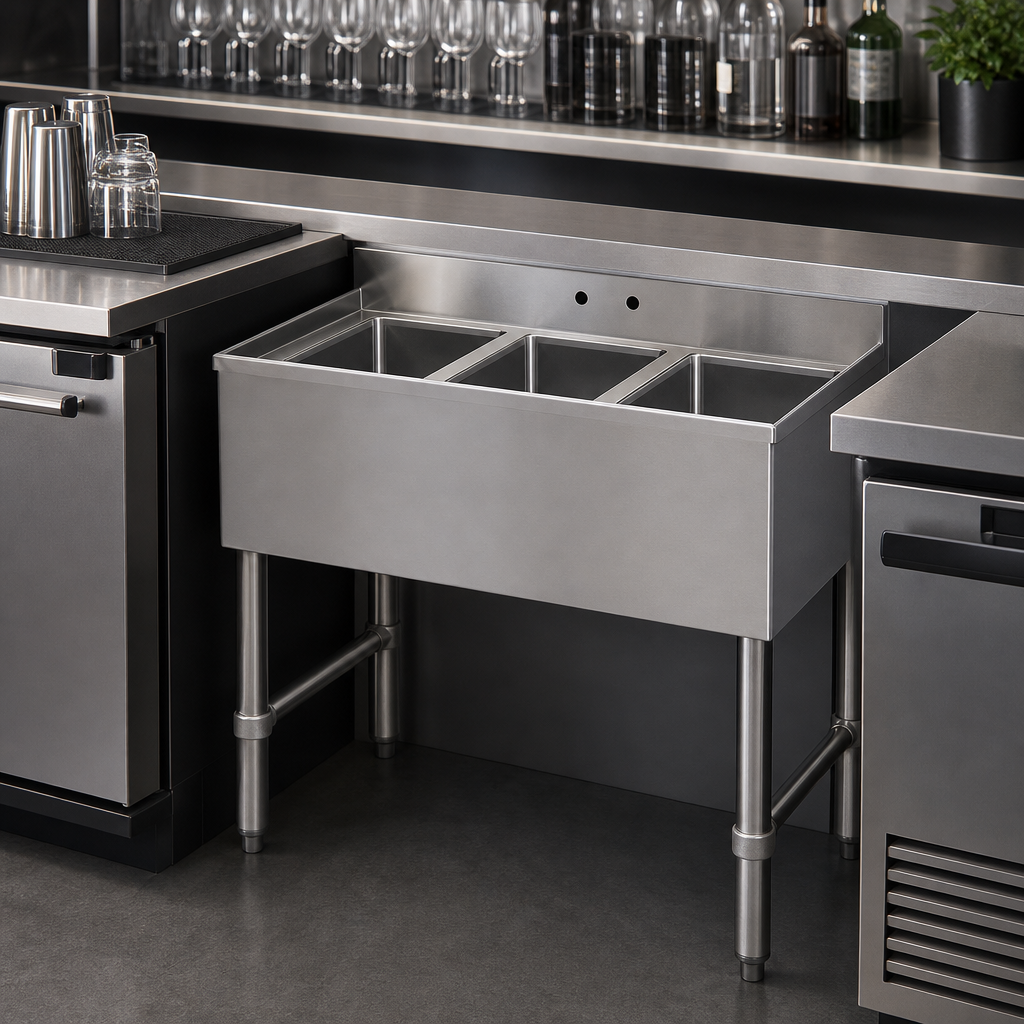

No Drain Board Design

Compact footprint is ideal for underbar installations where workspace is limited.

No Drain Board Design

304 Stainless Steel Construction

Top, bowls, and apron are made from 20-gauge 304 stainless steel for durability and corrosion resistance.

4-Inch Backsplash With Center Faucet Holes

Helps protect the wall behind the sink while providing a centered faucet mounting location.

Offset Corner Bowl Drains

Drain placement supports easier use with brush-type glasswashers.

Smooth Polished Welds

Exposed welded areas are polished to a sanitary brush finish for a cleaner appearance.

Heavy-Duty Support Frame

Welded stainless steel leg sockets, galvanized cross-bars, and galvanized legs add stability.

Adjustable Bullet Feet

Plastic bullet feet can be adjusted for leveling on uneven floors.

Ships Knocked Down

Delivered K.D. for easier transport and assembly on site.

NSF Standard 2 Certified

Meets NSF Standard 2 requirements for commercial bar sink applications.

Type Underbar Sink
Style No Drain Board
Installation Type Floor Model
Compartments 3
Bowl Size 10 Inches x 14 Inches x 10 Inches
Material 304 Stainless Steel
Finish Brush Finish
Leg Material Galvanized Steel
Shipping Width 38 Inches
Shipping Depth 19 Inches
Shipping Height 32 Inches
Shipping Weight 85 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Two-year warranty on included faucet

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is a three-compartment underbar bar sink with no drain board.
Each compartment measures 10 inches x 14 inches x 10 inches.
It includes a 4-inch center splash mount faucet with a 12-inch swing spout, three 1-1/2 inch basket drains, and an overflow tube kit.
No. It ships knocked down (K.D.) and is easily assembled.
Yes, it is NSF Standard 2 certified.
The top, bowls, apron, and backsplash are 20-gauge 304 stainless steel, with galvanized steel legs and adjustable plastic bullet feet.
