Sapphire SE-CCB48 NG/LP 48-Inch Countertop Radiant Gas Charbroiler, Manual Controls, 4 U-Shaped Burners, 120,000 BTU
- Control Type
- Manual
- Heating Source
- Radiant
- Fuel Type
- Natural gas / LP
- Burner Configuration
- 4 U-shaped burners
- Burner Rating
- 30,000 BTU/hr per burner
- Total Input
- 120,000 BTU
Specifications
Description

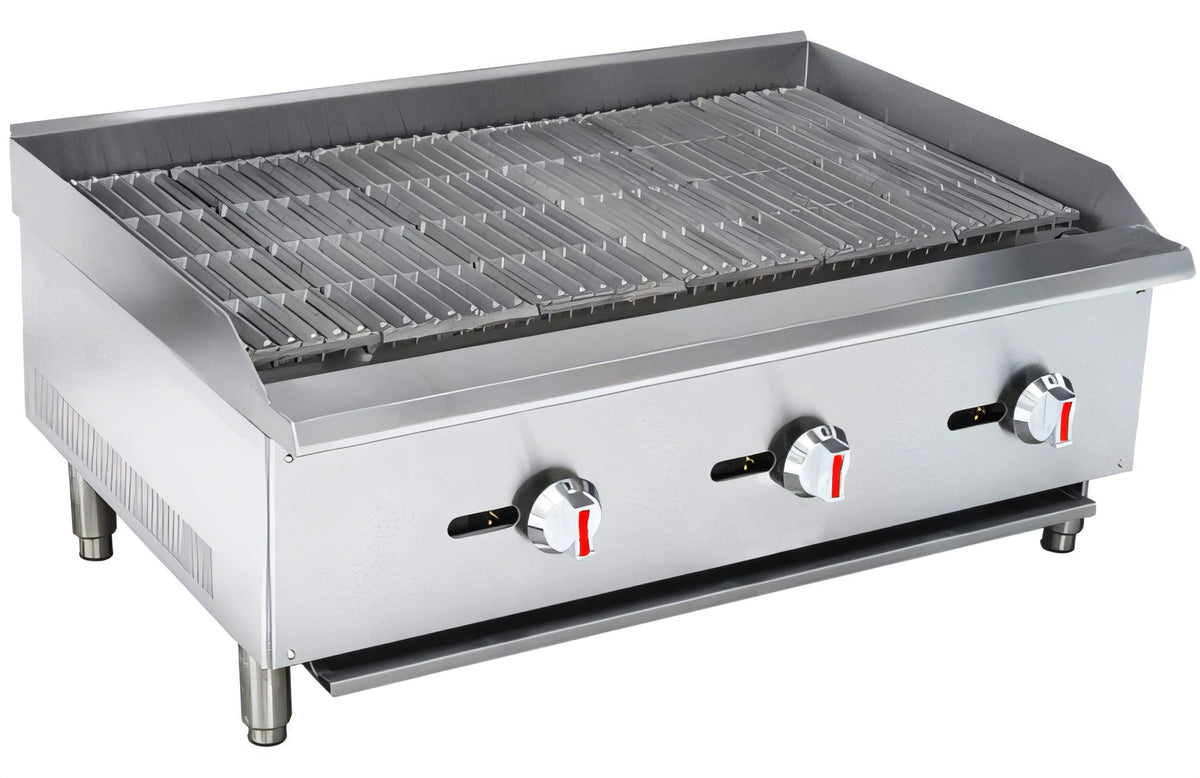

The Sapphire SE-CCB48 NG/LP is a 48-inch countertop radiant gas charbroiler with manual controls, four U-shaped burners, and 120,000 BTU of listed input.
- Uses a cast iron cooking grate that can be reversed and adjusted in height.
- Includes a hot rolled steel radiant cover, standby pilot, grease collector pan, and three-sided stainless steel splash guard.
- Features a stainless steel front, aluminized steel sides, adjustable legs, and a brass control valve.
- Provides a rear 3/4 in NPT gas connection and is identified for natural gas and LP operation.
- The cutsheet specifies that a field gas conversion kit is included.
Overall Dimensions:
48.0"W x 26.0"D x 15.75"HProduct Weight:
359.0 lbManual controls
Manual controls are listed for this model.
Radiant heating
The listed heating source is radiant.

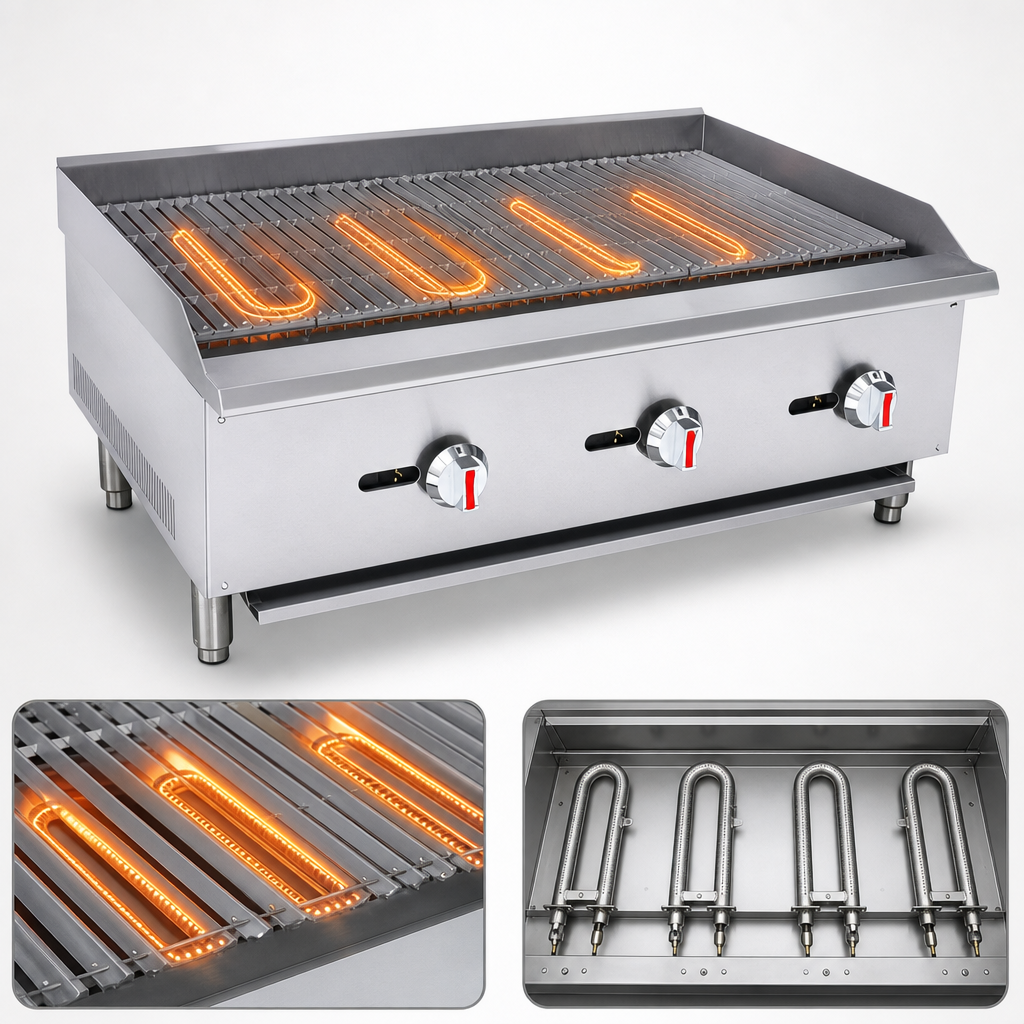

U-shaped burners
Four U-shaped burners are specified, with 120,000 BTU of total listed input.
Natural gas and LP compatibility
The model is identified as NG/LP; the cutsheet lists natural gas at 4.0 in. W.C. and propane at 10.0 in. W.C.

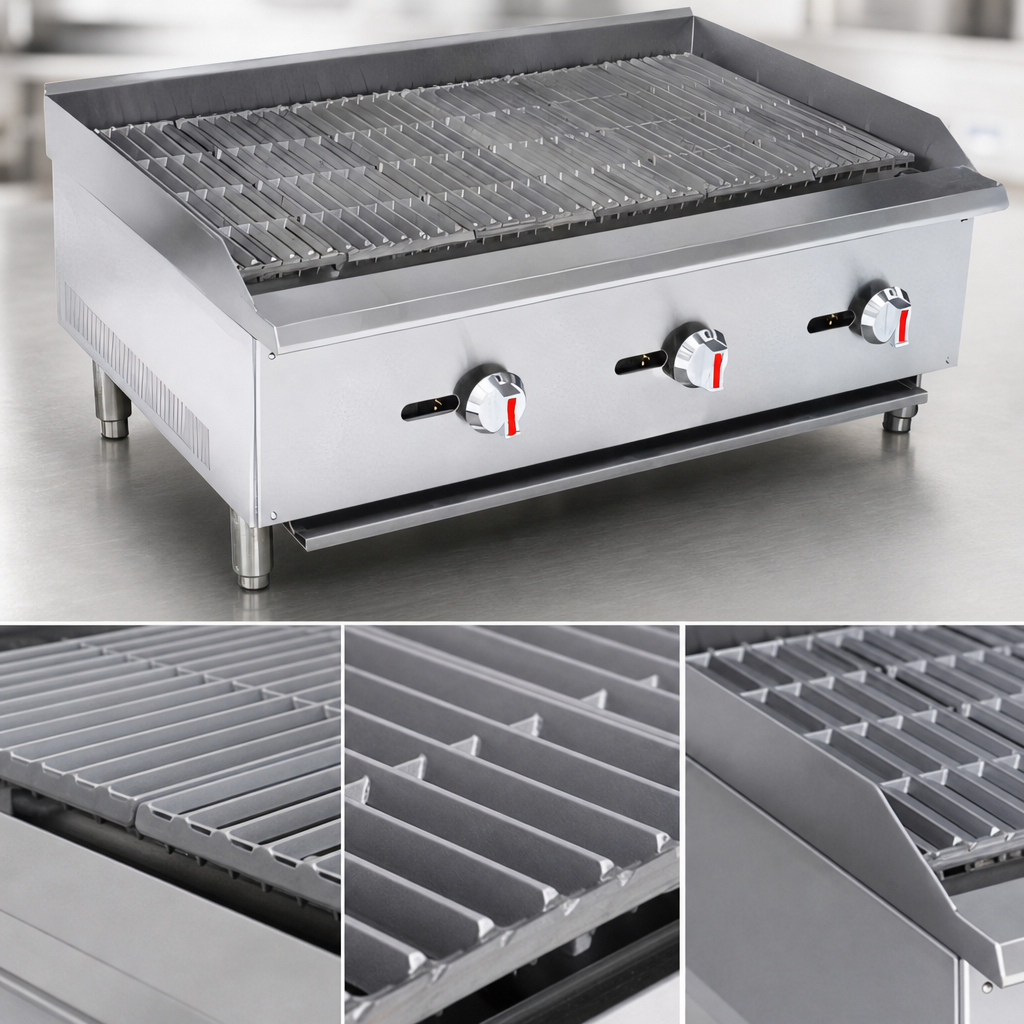

Cast iron cooking grate
The grate can be reversed and adjusted in height.
Hot rolled steel radiant cover
A hot rolled steel radiant cover is specified.
Standby pilot
The unit includes a standby pilot.
Grease collection and splash protection
A grease collector pan and three-sided stainless steel splash guard are specified.
Construction materials
The front is stainless steel and the sides are aluminized steel.
Gas connection and legs
The unit has a rear 3/4 in NPT gas connection and adjustable legs.
