RPI Industries

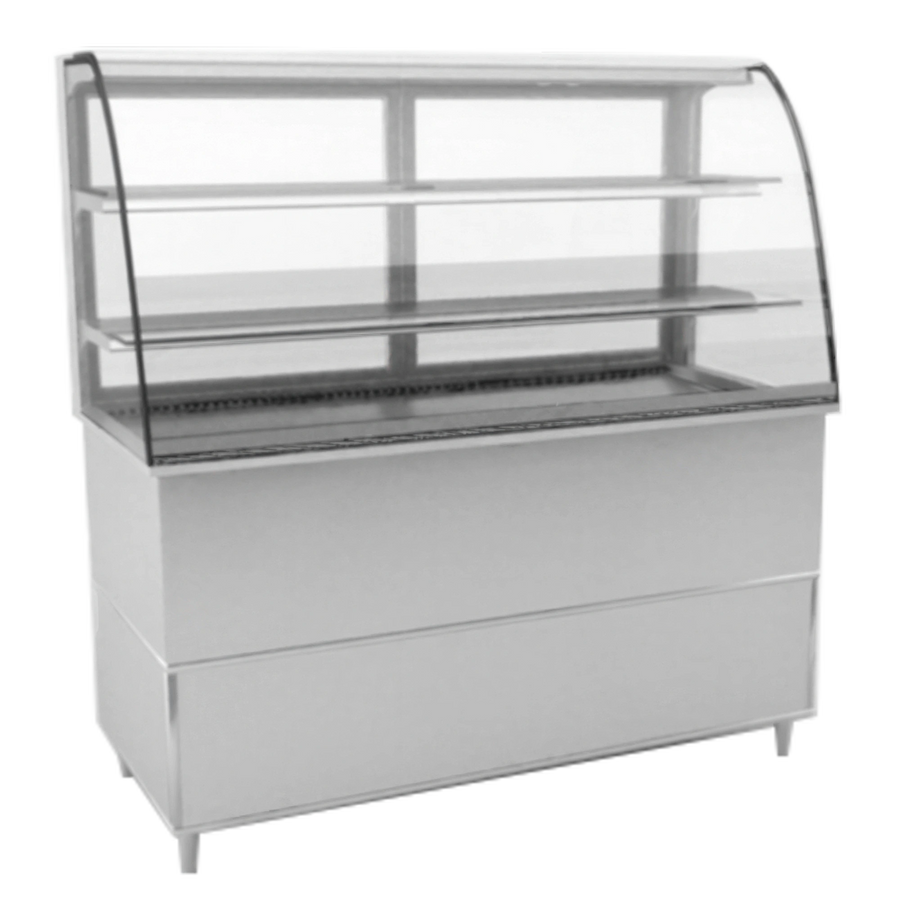

RPI Industries Vienna VICD4-27-R-CV-SC-INS Full-Service Refrigerated Deli Display Case, 57-1/8"W, Curved Glass, Self-Contained

SKU: VICD4-27-R-CV-SC-INS
$26,023.97
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Deli Cases Display Refrigeration New Arrivals Refrigerated Deli, Bakery & Sushi Cases Refrigerated Display Case Equipment Refrigeration & Ice Restaurant Equipment RPI Industries

The Vienna VICD4-27-R-CV-SC-INS is a full-service refrigerated display case designed for slide-in or drop-in installation. It has a curved glass profile with an insulated glass front, top, and side panels.

This self-contained case includes two hinged rear see-through doors, two adjustable tempered glass shelves, tilt-out front glass, programmable digital refrigeration control, and LED interior lighting.

  • 304 stainless steel exterior
  • Bottom-mount self-contained refrigeration with R448A refrigerant
  • Fan-assisted cooling system and rear air ventilation kit
  • Removable deck pans and lift-up evaporator for service access
  • Condensate pan included for self-contained operation

Overall Dimensions:

57.13"W x 27.38"D x 55.88"H

Product Weight:

653.0 lb

Full-service format

A full-service refrigerated display merchandiser designed for slide-in or drop-in installation.

Curved insulated glass

Features a curved glass profile with an insulated glass front, top, and side panels.

Rear access doors

Includes two hinged rear see-through access doors.

Adjustable shelving

Includes two adjustable tempered glass shelves that can tilt up to 7 degrees.

Tilt-out front glass

The insulated front glass tilts out for access.

Self-contained refrigeration

Uses bottom-mount self-contained refrigeration with R448A refrigerant and a fan-assisted cooling system.

Digital control and LED lighting

Includes a programmable digital refrigeration controller and LED interior lighting.

Stainless steel construction

The exterior is constructed from 304 stainless steel.

Service and cleaning access

Includes removable deck pans, a lift-up evaporator, and a condensate pan for self-contained operation.

Ventilation

Includes a rear air ventilation kit.

Width 57.13 in.
Depth 27.38 in.
Height 55.88 in.
Weight 653 lb
Service Type Full service
Installation Style Slide-in or drop-in
Refrigeration Type Bottom-mount self-contained
Glass Profile Curved
Front Glass Insulated, tilt-out
Rear Access Two hinged rear see-through doors
Shelves Two adjustable tempered glass shelves; tilt up to 7 degrees
Controller Programmable digital refrigeration controller
Lighting LED interior lighting
Exterior Material 304 stainless steel
Compressor Motor 3/8 HP
Refrigerant R448A
Voltage 115 V
Amperage 8.2 A
Plug 5-15P
Cooling System Fan-assisted

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It is a full-service refrigerated display case for slide-in or drop-in installation.
The case is 57.13 inches wide, 27.38 inches deep, and 55.88 inches high.
It uses bottom-mount self-contained refrigeration with R448A refrigerant.
It has two hinged rear see-through doors and tilt-out front glass.
The case includes two adjustable tempered glass shelves that can tilt up to 7 degrees.
The listed electrical specifications are 115 V, 8.2 A, and a 5-15P plug.
The cutsheet lists a 5-year compressor warranty.
