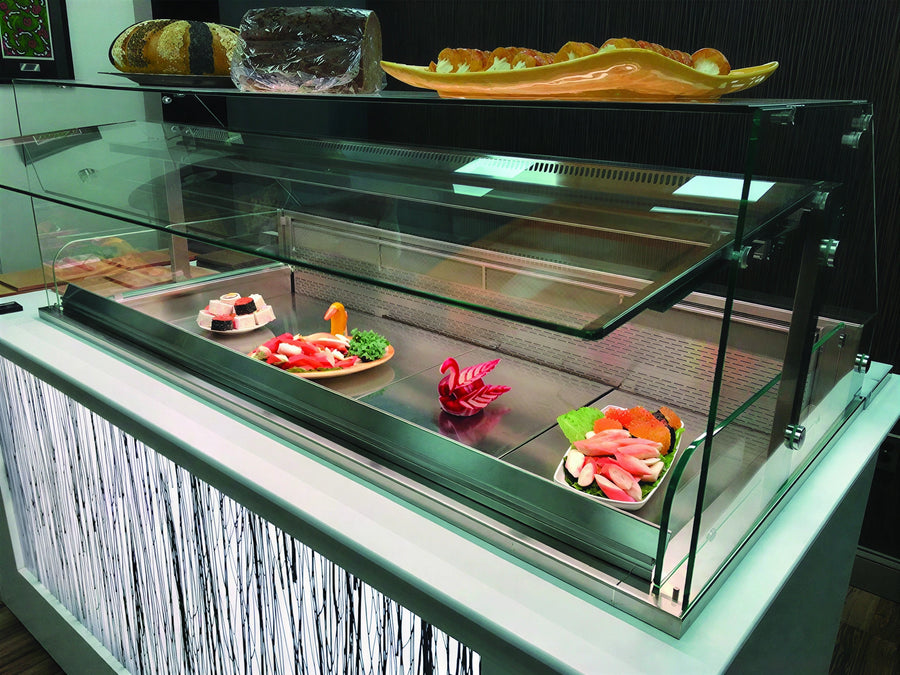

RPI Industries VIAP3-R-SC-SWITCH-VFC Refrigerated Open-Air Display Case, 44 1/8"W, Assisted/Self-Service, Tempered Safety Glass

SKU: VIAP3-R-SC-SWITCH-VFC
$34,915.06
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Display Refrigeration New Arrivals Open-Air Coolers Open-Air Refrigerated Merchandisers Refrigerated Merchandiser Equipment Refrigeration & Ice Restaurant Equipment RPI Industries

The RPI Industries VIAP3-R-SC-SWITCH-VFC is a refrigerated display case for assisted service or self-service. Its switch-over function supports changing from refrigerated air over pan to heated operation.

  • Service flexibility: Unique pivoting front glass supports self-service or operator service positions.
  • Cooling and control: Self-contained R448A refrigeration, speed-controlled low-voltage fans, electronic digital temperature display, and fully automatic defrosting.
  • Cleaning access: Adjustable and removable base decks, removable rear sliding acrylic doors, and a required floor drain.
  • Construction: 304 stainless steel exterior, stainless steel interior, and tempered safety glass.
  • Storage: Two ambient open storage shelves and a rear cutting board.
  • Lighting: Interior lighting combined with a heat bridge.

Overall Dimensions:

44.13"W x 35.75"D x 52.75"H

Product Weight:

560.0 lb

Switch-over function

Supports changing from refrigerated air over pan to heated operation.

Assisted and self-service configuration

Unique pivoting front glass supports self-service or operator service positions.

Self-contained refrigeration

Uses R448A refrigerant.

Digital temperature control

Electronic control with digital temperature display.

Automatic defrost

Fully automatic defrosting.

Speed-controlled fans

Low-voltage, speed-controlled fans provide forced-air cooling.

Tempered safety glass

Includes tempered safety glass and a pivoting front glass system.

Cleaning access

Adjustable and removable base decks and removable rear sliding acrylic doors support cleaning access.

Interior lighting

Interior lighting is combined with a heat bridge.

Operator-side storage

Includes two ambient open storage shelves and a rear cutting board.

Stainless steel construction

304 stainless steel exterior with stainless steel interior.

Rear ventilation

Base includes a rear ventilation kit.

Service mode Assisted service/self-service
Case configuration Slide-in refrigerated display case
Glass Tempered safety glass
Switch-over operation Refrigerated air over pan to heated operation
Refrigeration system Self-contained
Refrigerant R448A
Fan control Speed-controlled, low-voltage
Temperature control Electronic digital control with temperature display
Defrost Fully automatic
Lighting Interior lighting with heat bridge
Doors Rear sliding removable acrylic doors on operator side
Base decks Adjustable/removable
Operator-side storage 2 ambient open storage shelves
Cutting board Rear cutting board
Drain requirement Floor drain required
Ventilation Base with rear ventilation kit
Electrical service 115/208–230 V, 12 A, 4-wire L14-20P
Exterior finish 304 stainless steel
Interior finish Stainless steel

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

5-year compressor warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Yes. The pivoting front glass supports self-service or operator service positions.
Yes. The switch-over function changes from refrigerated air over pan to heated operation.
The case is 44 1/8 in wide, 35 3/4 in deep, and 52 3/4 in high, with a weight of 560 lb.
It uses R448A refrigerant.
Yes. A floor drain is required.
The specified electrical service is 115/208–230 V, 12 A, with a 4-wire L14-20P connection.
The cutsheet states a 5-year compressor warranty.
