RPI Industries

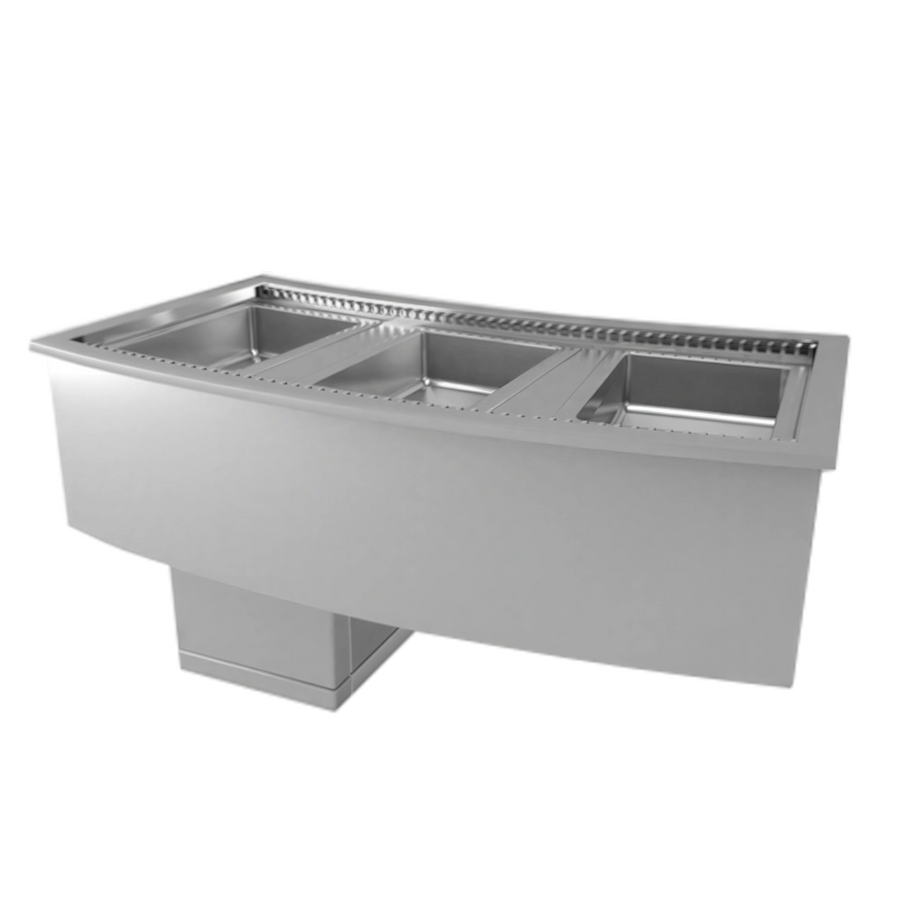

RPI Industries Vienna VIAP3-0-R-CV-SC 3-Pan Curved Drop-In Refrigerated Cold Well, Self-Contained, Stainless Steel, 55-1/4"W

SKU: VIAP3-0-R-CV-SC
$24,672.05
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Vienna VIAP3-0-R-CV-SC is a 3-pan curved drop-in cold well with self-contained refrigeration and a forced-air cooling system.

  • Programmable digital refrigeration controller
  • Adjustable deck pan
  • Removable top trim ring
  • Stainless steel exterior

Overall Dimensions:

55.25"W x 28.0"D x 25.75"H

Product Weight:

341.0 lb

Curved drop-in design

Configured for a 55-1/4-inch-wide drop-in installation with a curved layout.

Self-contained refrigeration

The refrigeration system is self-contained within the unit.

Forced-air cooling

Uses a forced-air cooling system.

Digital refrigeration controller

Includes a programmable digital refrigeration controller.

Adjustable deck pan

The deck pan is adjustable.

Removable top trim ring

Includes a removable top trim ring.

Stainless steel exterior

Built with a stainless steel exterior.

Related Searches

Best Sellers Cold Well Cold Wells & Serving Stations Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Prep & Cold Holding Refrigerated Cold Wells & Pan Rails Refrigeration & Ice Restaurant Equipment RPI Industries Steam Tables & Food Wells
Installation Drop-in
Design Curved
Pan quantity 3 pans
Refrigeration Self-contained
Cooling system Forced air
Controller Programmable digital refrigeration controller
Exterior Stainless steel
Compressor horsepower 1/3 hp
Refrigerant R448A
Voltage and frequency 120/60
Amperage 4.7 A
Plug 5-15P
Drain 1-inch diameter

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

5-year compressor warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The unit measures 55.25 in W × 28 in D × 25.75 in H and weighs 341 lb.
It is a 3-pan model.
It uses self-contained refrigeration with forced-air cooling and a programmable digital refrigeration controller.
The specified refrigerant is R448A.
The exact-model specification lists 120/60, 4.7 A, and a 5-15P plug.
Yes. The cutsheet specifies a 1-inch drain that must be run to a floor drain during installation.
Standard hotel and foodservice pans are to be purchased separately.
