RPI Industries Vienna VIAP3-0-R-CV-SC-AT 3-Pan Curved Drop-In Refrigerated Air Pan, Self-Contained, 55-1/4"W
- Amperage
- 5.84 A
- Dimensions
- 55.25"W × 28.0"D × 29.25"H
- Product weight
- 363 lb
- Shipping weight
- 363 lb
- Pan configuration
- 3-pan
- Installation type
- Drop-in
Specifications
Description

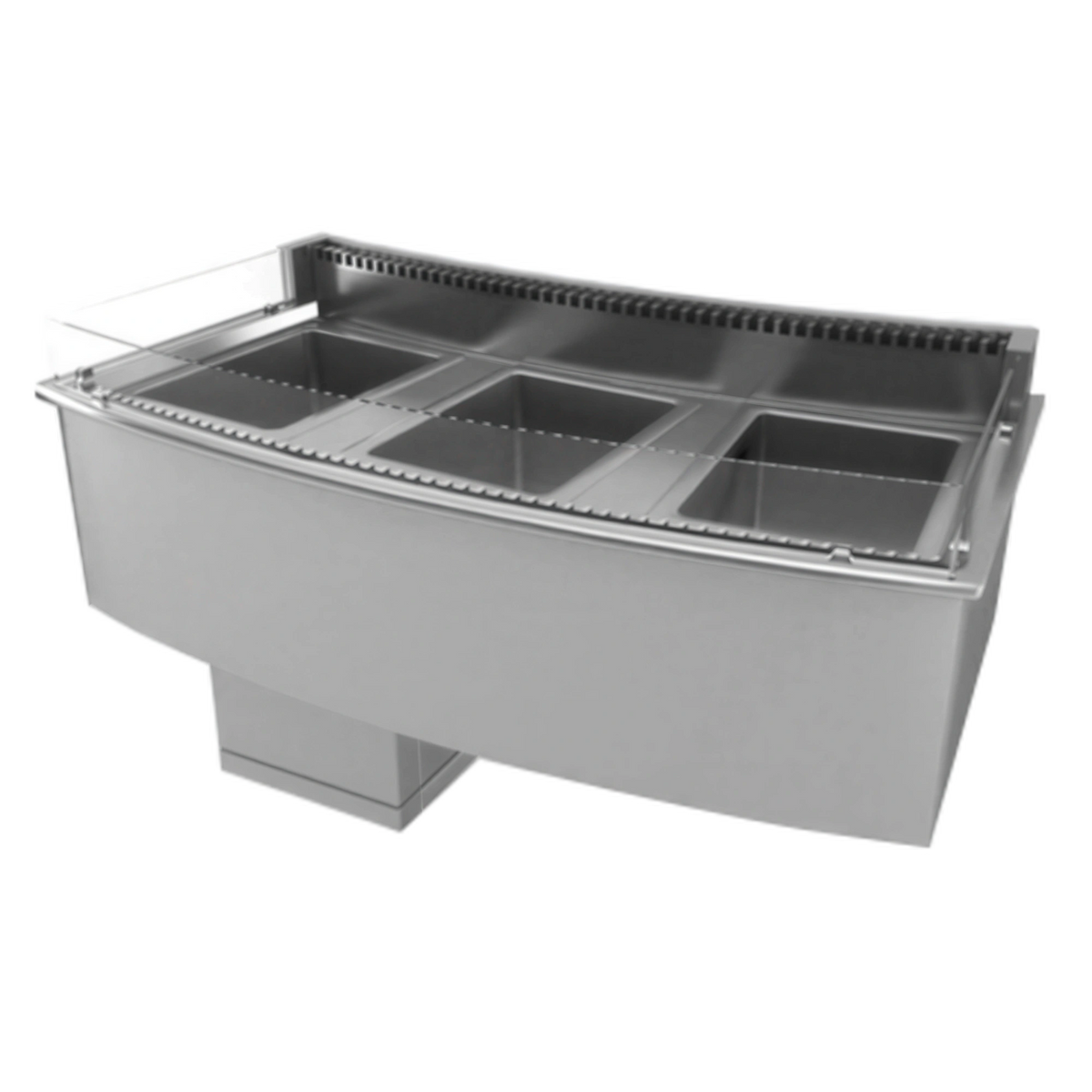

The Vienna VIAP3-0-R-CV-SC-AT is a 55-1/4-inch curved, drop-in refrigerated air pan with an air tower, self-contained refrigeration, and forced-air cooling.
It features a programmable digital refrigeration controller, an adjustable deck pan that converts to a slanted display, removable deck pans for cleaning, and a lift-up evaporator. The unit has a stainless steel exterior, a 1/3 hp compressor, and R448A refrigerant.
The three-pan unit accommodates standard hotel and foodservice pans, which are to be purchased by others. Installation requires a floor drain and cabinet or counter ventilation for the condensing unit.
Overall Dimensions:
55.25"W x 28.0"D x 29.25"HProduct Weight:
363.0 lbCurved drop-in design
Designed for drop-in installation with a curved display configuration.
Air tower
Provides higher air coverage for taller product.
Self-contained refrigeration
Refrigeration is integrated into the unit.
Forced-air cooling
Circulates refrigerated air over the product in the display area.
Programmable digital controller
Provides programmable digital refrigeration control.
Adjustable deck pan
Adjusts to convert the display to a slanted configuration.
Lift-up evaporator
The lift-up mechanism supports access for rinsing the inner pan.
Removable deck pans
Deck pans can be removed for cleaning.
