Customize Royal Range of California Model no. TB-860

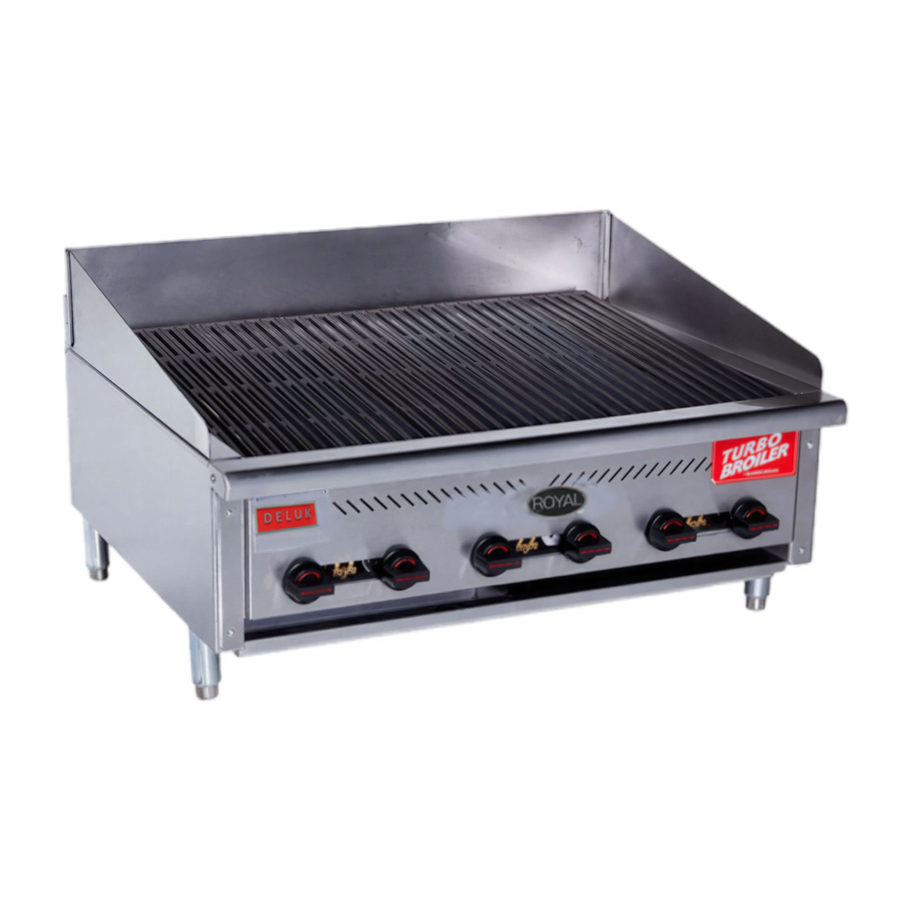

Royal Range of California Turbo Broiler TB-860 60-Inch Gas Countertop Charbroiler, Radiant, Manual Controls
The TB-860 is a 60-inch gas countertop infrared radiant broiler with manual controls, stainless steel radiants, and a fully welded frame with 1,200°F mineral wool insulation.
- Heating: Ten burners provide 145,000 BTU total input.
- Cooking surface: The broiling grid measures 23 inches by 57 inches.
- Construction: Stainless steel front, ends, and side splash with cast iron grates.
- Service features: Removable stainless steel radiants, a full-width removable crumb pan, and an independent removable firebox assembly.
- Installation: Includes 4-inch legs and a 3/4-inch NPT gas connection at the right rear.
Overall Dimensions:
60.0"W x 28.5"D x 14.0"HProduct Weight:
460.0 lbInfrared radiant heating
Removable stainless steel radiants produce infrared heat.
Ten-burner configuration
The TB-860 has 10 burners with 145,000 BTU total input.
Manual burner controls
Individual burner controls are provided every 6 inches.
Cast iron grates
Heavy-duty cast iron reversible top grates are elevated at the rear with cast-in feet.
Fully welded frame
The frame uses a fully welded construction with 1,200°F mineral wool insulation.
Removable cooking components
The stainless steel radiants, full-width crumb pan, and independent firebox assembly are removable.
Standing pilots
Standing pilots provide ignition for the burners.
Stainless steel exterior sections
The front, ends, and side splash are stainless steel.
Certifications & Compliance
Warranty & Protection
Two-year parts and labor limited warranty.
