Customize Royal Range of California Model no. TB-836-SM

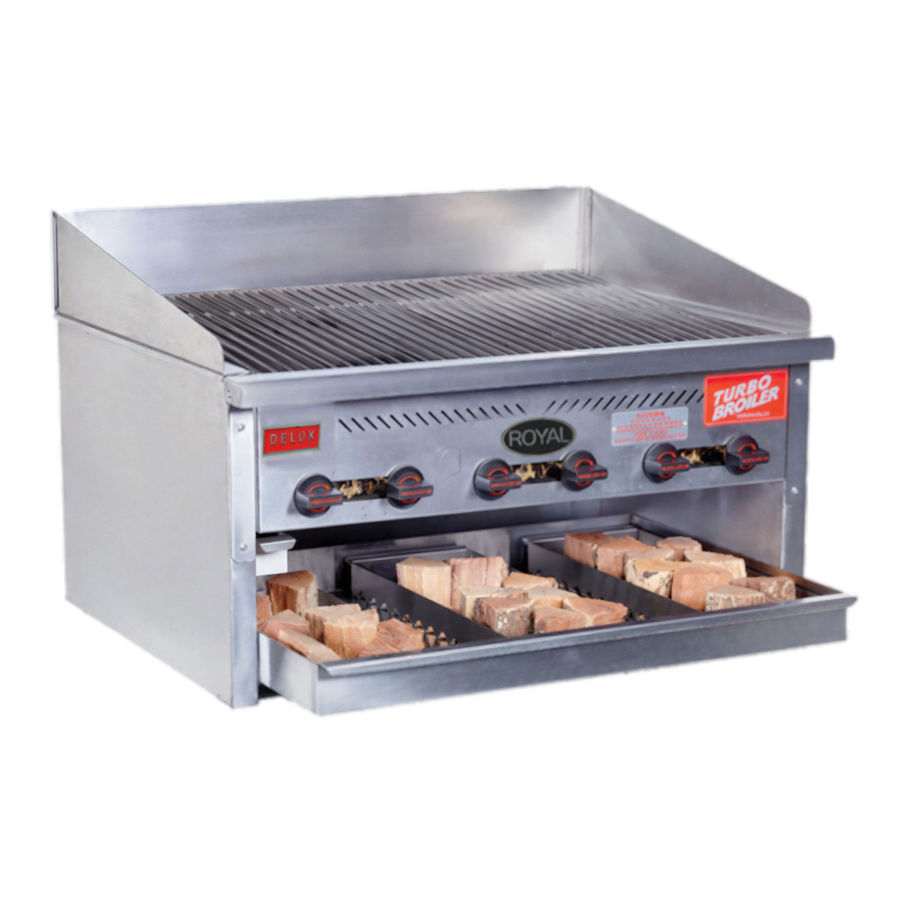

Royal Range of California Turbo Broiler TB-836-SM Gas Countertop Charbroiler/Smoker with Stainless Steel Radiants, 35-3/4"
The TB-836-SM is a gas countertop infrared radiant broiler with smoker. It combines removable stainless steel radiants with heavy-duty cast iron reversible top grates and a 23 in x 32 in broiling area.
A full-width removable stainless steel water pan supports wood-chip or soaked-log smoking. The model is listed with one water pan and three chip pans.
- Fully welded frame with 1,200°F mineral wool insulation.
- Manual individual burner controls spaced every 6 in.
- Heavy cast iron burners rated at 14,500 BTU/hr each, with 87,000 BTU total input.
- Removable and replaceable independent firebox assembly.
- Standing pilots and stainless steel tubing for the burners and pilots.
Overall Dimensions:
35.75"W x 28.5"D x 17.5"HProduct Weight:
372.0 lbInfrared radiant cooking
Removable heavy-gauge welded stainless steel radiants produce infrared rays for cooking.
Smoking setup
A full-width removable stainless steel water pan is provided for wood chips or soaked logs; the model data lists one water pan and three chip pans.
Manual burner controls
Individual burner controls are spaced every 6 in.
Cast iron grates
Heavy-duty cast iron reversible top grates are specified.
Welded construction and insulation
The frame is fully welded and uses 1,200°F mineral wool insulation.
Serviceable firebox
The independent firebox assembly is removable and replaceable.
Gas heating system
Heavy cast iron burners are rated at 14,500 BTU/hr each, with 87,000 BTU total input.
Ignition and burner tubing
The unit has standing pilots and stainless steel tubing for the burners and pilots.
Certifications & Compliance
Warranty & Protection
Two-year limited warranty covering parts and labor for the original purchaser.
