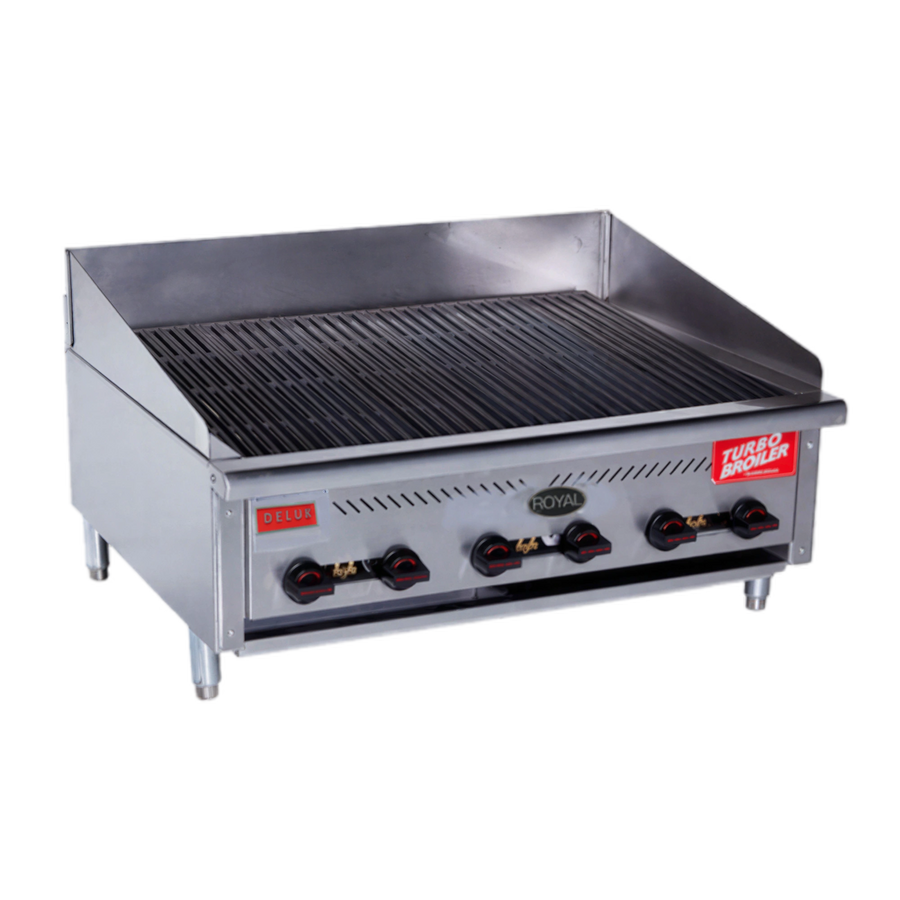

Royal Range of California Turbo Broiler TB-821 Countertop Gas Charbroiler with Stainless Steel Radiants, 21-Inch

SKU: TB-821
$5,998.00
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Charbroilers Commercial Grills Cooking Equipment Equipment Gas Charbroilers New Arrivals Restaurant Equipment Royal Range of California

The Royal Range of California Turbo Broiler TB-821 is a countertop gas charbroiler with stainless steel radiants, three burners, and 43,500 BTU total input.

  • Construction: Fully welded frame with 1,200°F mineral wool insulation, stainless steel front, ends and side splash, and a front valve panel.
  • Cooking surface: Heavy-duty cast iron reversible top grates with removable stainless steel radiants.
  • Controls: Individual burner controls and standing pilots.
  • Installation: Four-inch adjustable heavy-duty legs are included.
  • Cleaning: Full-width removable stainless steel crumb pan.

Overall Dimensions:

21.0"W x 28.5"D x 14.0"H

Product Weight:

181.0 lb

Stainless steel radiants

Removable, heavy-gauge welded stainless steel radiants produce infrared rays.

Three gas burners

Three heavy cast iron burners are rated at 14,500 BTU/hr each, for 43,500 BTU total.

Individual burner controls

Individual burner controls are provided every 6 inches.

Cast iron grates

Heavy-duty cast iron reversible top grates.

Welded insulated frame

Fully welded frame with 1,200°F mineral wool insulation.

Removable crumb pan

Full-width removable stainless steel crumb pan.

Standing pilots

Standing pilots are included for ignition.

Adjustable legs

Four-inch high adjustable heavy-duty legs are included.

Fuel type Gas
Gas options Natural gas or LP
Installation type Countertop
Control type Manual controls
Heating method Radiant
Radiant material Stainless steel
Burners 3
Burner input 14,500 BTU/hr each
Total input 43,500 BTU
Broiling grid 23 in x 18 in
Grates Heavy cast iron reversible top grates
Frame Fully welded
Insulation 1,200°F mineral wool
Construction materials Stainless steel front, ends and side splash; balance aluminized steel
Gas connection 3/4 in NPT on the right-hand rear
Gas pressure 5 in W.C. natural gas; 10 in W.C. propane
Legs 4 in adjustable heavy-duty legs
Overall dimensions 21 in W x 28.5 in D x 14 in H
Weight 181 lb
Clearance to combustibles 8 in rear; 12 in sides
Clearance to non-combustibles 0 in rear and sides

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The overall dimensions are 21 in W x 28.5 in D x 14 in H.
It has three heavy cast iron burners rated at 14,500 BTU/hr each, for 43,500 BTU total.
It is a gas unit specified for natural gas or LP. The listed pressures are 5 in W.C. for natural gas and 10 in W.C. for propane.
The TB-821 has stainless steel radiants and heavy-duty cast iron reversible top grates.
The gas connection is 3/4 in NPT on the right-hand rear of the appliance.
Yes. The product is specified with manual controls and individual burner controls every 6 inches.
The specified clearances are 8 in at the rear and 12 in at the sides for combustible surfaces, and 0 in at the rear and sides for non-combustible surfaces.
