Royal Range of California

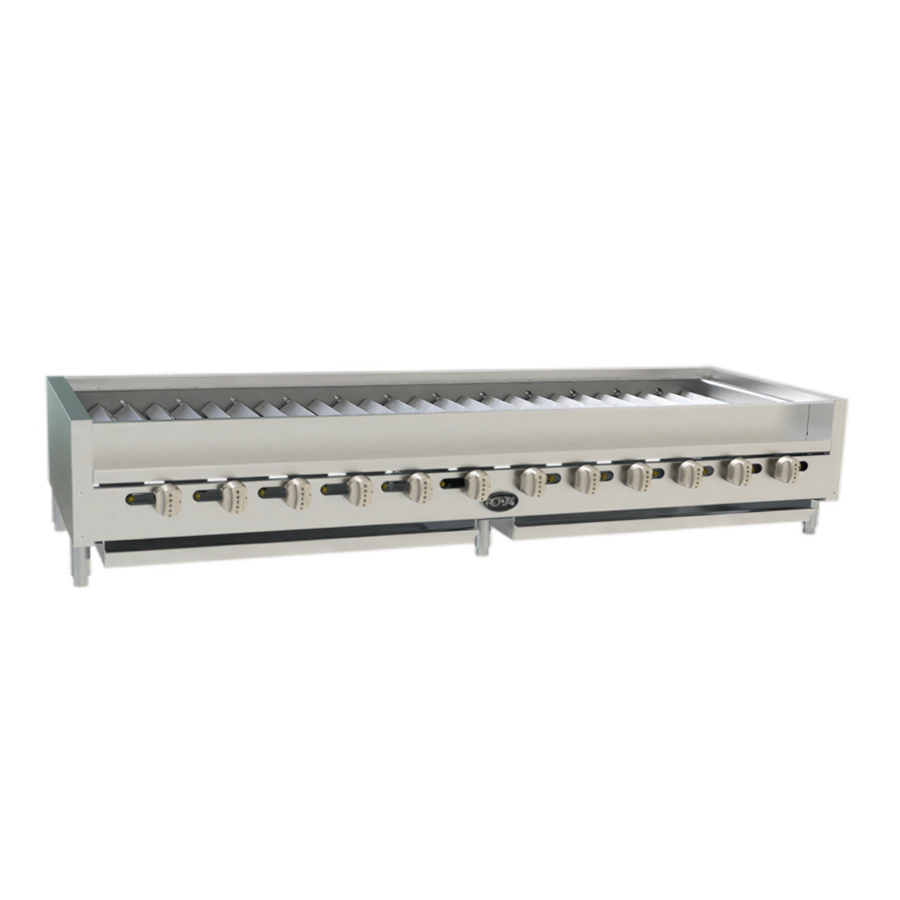

Royal Range of California Royal Series RKTB-72 Gas Countertop Kabob Broiler, 72"W, 12 Radiant Burners, Manual Controls

SKU: RKTB-72
$16,612.00
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Charbroilers Commercial Grills Cooking Equipment Equipment Gas Charbroilers New Arrivals Restaurant Equipment Royal Range of California

The Royal Series RKTB-72 is a gas countertop kabob broiler with a 72-inch width, 12 removable radiant burners, and 216,000 BTU total input.

  • Each stainless steel tubular burner is rated at 18,000 BTU/hr.
  • Individual manual controls and standing pilots support burner-by-burner operation.
  • The unit includes stainless steel radiant covers, a removable stainless steel water pan, and a removable, replaceable interior firebox.
  • Construction includes stainless steel sides, front, and ledge, plus 4-inch adjustable legs.

Overall Dimensions:

72.0"W x 24.25"D x 14.0"H

Product Weight:

510.0 lb

Radiant burner system

Twelve removable stainless steel tubular burners provide radiant heat, with each burner rated at 18,000 BTU/hr.

Manual controls

Individual manual controls are provided for the burners.

Standing pilots

Standing pilots are specified for ignition.

Removable firebox

The interior firebox is fully welded and removable and replaceable.

Mineral wool insulation

The unit is specified with 1,200°F mineral wool insulation.

Stainless steel water pan

A large removable stainless steel water pan is positioned under the broiler.

Stainless steel construction

Stainless steel radiant covers, sides, front, ledge, and pilot tubing are specified.

Adjustable legs

Four-inch adjustable legs are specified.

Product Type Kabob broiler
Fuel Type Gas
Installation Countertop
Overall Width 72 in
Overall Depth 24.25 in
Overall Height 14 in
Burner Count 12
Burner Input 18,000 BTU/hr each
Total Input 216,000 BTU
Heating Method Radiant
Control Type Individual manual controls
Ignition Standing pilots
Burner Construction Stainless steel tubular
Radiant Covers Stainless steel
Firebox Fully welded, removable and replaceable interior firebox
Insulation 1,200°F mineral wool
Water Pan Large removable stainless steel
Exterior Construction Stainless steel sides, front, and ledge
Legs 4 in adjustable
Gas Connection 3/4 in NPT at the right-hand rear
Gas Pressure 5 in W.C. natural gas; 10 in W.C. propane
Gas Options Natural gas or LP

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a gas countertop kabob broiler.
The RKTB-72 has 12 removable radiant burners.
Each burner is rated at 18,000 BTU/hr, for a total input of 216,000 BTU.
It uses individual manual controls and standing pilots.
The documented dimensions are 72 inches wide, 24.25 inches deep, and 14 inches high.
The documented connection is 3/4-inch NPT at the right-hand rear of the appliance.
The documentation lists natural gas and LP options and states that the gas type should be specified when ordering.
