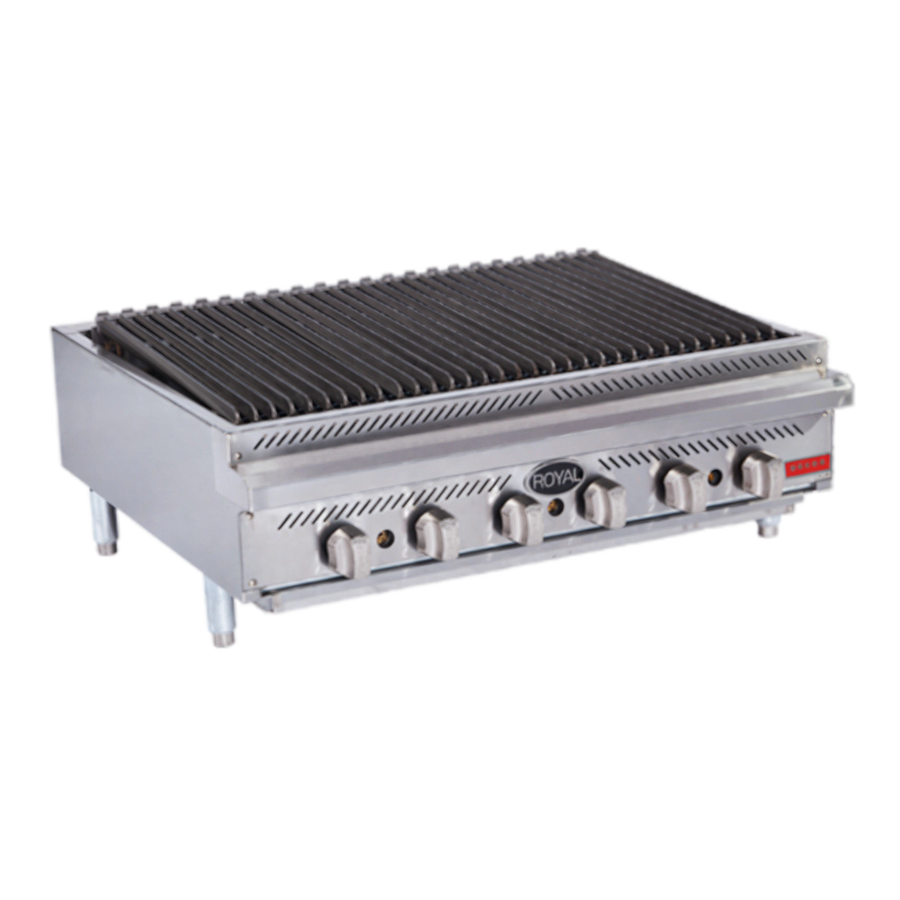

Royal Range of California Delux Series RDRB-24 24" Gas Countertop Charbroiler, Radiant, Manual Controls, Cast Iron Grates
SKU: RDRB-24
$4,744.00
/each
Configurable
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout
The RDRB-24 is a Delux Series 24-inch countertop gas charbroiler with radiant heating, manual controls with a pilot, and cast iron grates.
- Four burners with 60,000 BTU total output
- Stainless steel sides and front valve cover
- All-welded frame with 1,200°F mineral wool insulation
- Fully removable firebox
- Full-width removable stainless steel crumb pan
- Four-inch adjustable heavy-duty legs included
Overall Dimensions:
24.0"W x 30.5"D x 14.0"HProduct Weight:
300.0 lbRadiant heating
The charbroiler uses radiant heating.
Manual controls with pilot
Manual controls with a standing pilot are specified.
Cast iron grates
Heavy-duty cast iron grates are listed as a standard feature.
Removable firebox
The firebox is fully removable.
Removable crumb pan
A full-width, removable stainless steel crumb pan is located under the broiler.
Welded insulated frame
The frame is all welded and uses 1,200°F mineral wool insulation.
Four-burner gas system
The RDRB-24 has four burners with 60,000 BTU total output.
Adjustable legs
Four-inch adjustable heavy-duty legs are included.
Series
Delux Series
Product Type
Charbroiler
Fuel Type
Gas
Installation Type
Countertop
Heating Type
Radiant
Control Type
Manual controls with pilot
Number of Burners
4
Total BTU
60,000 BTU
Grate Material
Cast iron
Construction
All-welded frame
Insulation
1,200°F mineral wool
Firebox
Fully removable
Stainless Steel Components
Sides and front valve cover
Gas Connection
3/4 in NPT, right-hand rear
Leg Height
4 in adjustable heavy-duty legs
Certifications & Compliance
Frequently Asked Questions
Yes. The RDRB-24 is specified as a countertop charbroiler.
It uses radiant heating.
The RDRB-24 has four burners and 60,000 BTU total output.
It has manual controls with a standing pilot.
The product is 24 inches wide, 30.5 inches deep, and 14 inches high, with a listed weight of 300 pounds.
The RDRB-24 has heavy-duty cast iron grates.
It uses a 3/4-inch NPT gas connection located at the right-hand rear of the appliance.
