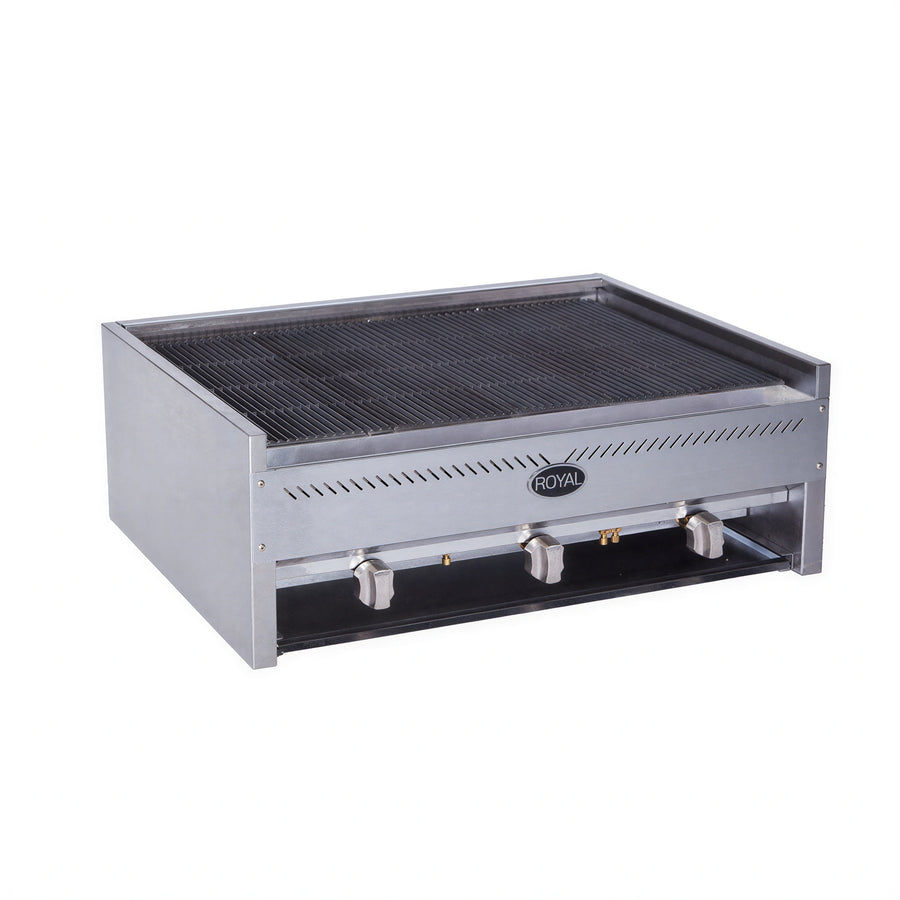

Royal Range of California Royal Series RCB-36 Heavy-Duty Gas Countertop Charbroiler, 36", Lava Rock, 3 H-Type Cast-Iron Burners, Manual Controls

SKU: RCB-36
$4,860.00
/each Configurable
Enter ZIP for a shipping estimate

Want to speak to an expert?

The RCB-36 is a 36 in countertop gas charbroiler with lava rock heating, three H-type cast-iron burners, and manual controls.

Each burner is rated at 40,000 BTU/hr for a total rating of 120,000 BTU. The burners are individually adjustable, and the unit includes a removable and replaceable independent firebox assembly.

  • Compact heavy-gauge chassis
  • Stainless steel sides and front valve cover
  • Full-width removable stainless steel crumb pan
  • Heavy-duty cast-iron bottom grates and cast-iron top grates with flat or incline positioning

Overall Dimensions:

36.0"W x 28.0"D x 11.0"H

Product Weight:

383.0 lb

Lava rock heating

Uses lava rock as the heating medium.

Three H-type cast-iron burners

Includes three H-type cast-iron burners, each rated at 40,000 BTU/hr.

Manual burner controls

Manual controls allow the burners to be adjusted individually.

Removable firebox assembly

The independent firebox assembly is removable and replaceable.

Heavy-gauge chassis

Built with a compact heavy-gauge chassis.

Stainless steel components

Includes stainless steel sides, a stainless steel front valve cover, and a removable stainless steel crumb pan.

Cast-iron grates

Includes heavy-duty cast-iron bottom grates and cast-iron top grates that can be positioned flat or inclined.

Product type Heavy-duty gas countertop charbroiler
Width 36 in
Burners 3 H-type cast-iron burners
Burner rating 40,000 BTU/hr each
Total BTU rating 120,000 BTU
Heating medium Lava rock
Control type Manual controls
Chassis Compact heavy-gauge chassis
Firebox Removable and replaceable independent firebox assembly
Gas connection 3/4 in NPT on the right-hand rear
Gas pressure 5 in W.C. natural gas; 10 in W.C. propane
Grates Heavy-duty cast-iron bottom grates and cast-iron top grates, flat or inclined
Installation location Noncombustible locations only

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Two-year parts and labor limited warranty for the original purchaser under normal use and service.

Frequently Asked Questions

It has three H-type cast-iron burners.
The total rating is 120,000 BTU, with each burner rated at 40,000 BTU/hr.
It uses manual controls with individually adjustable burners.
The gas connection is 3/4 in NPT on the right-hand rear of the appliance.
The listed pressures are 5 in W.C. for natural gas and 10 in W.C. for propane.
The cutsheet specifies installation in noncombustible locations only, with 0 in rear and side clearance for noncombustible locations.
The product has a two-year parts and labor limited warranty, subject to the manufacturer's warranty terms.
