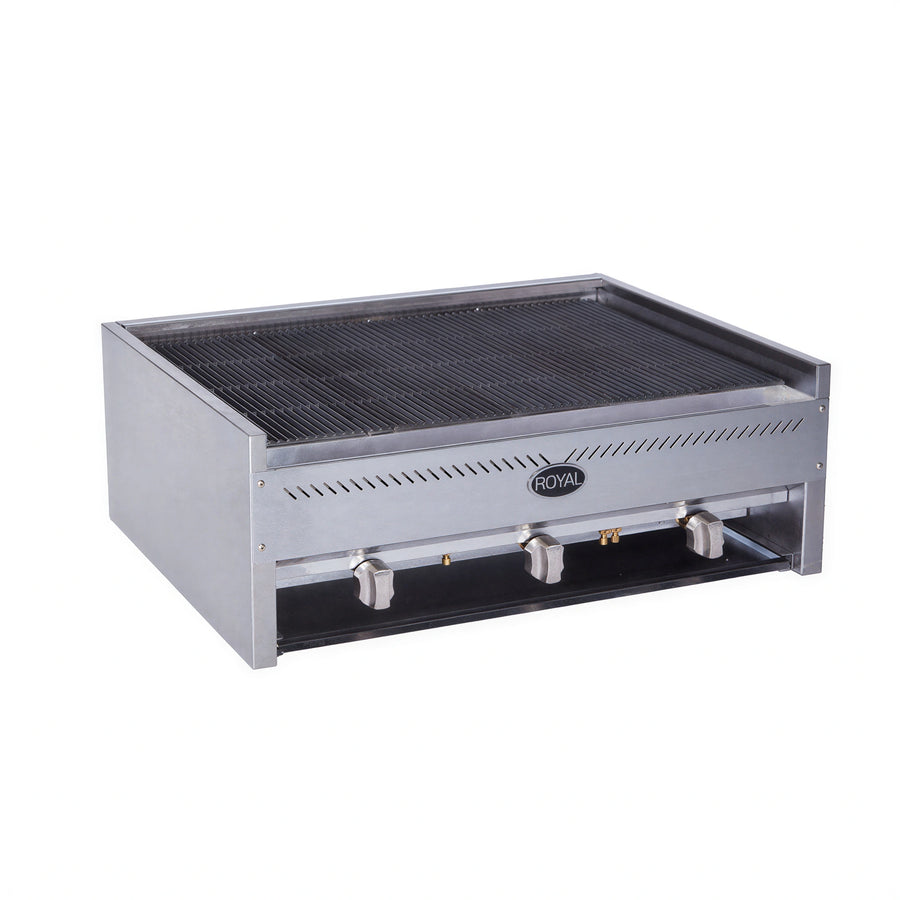

Royal Range of California Royal Series RCB-18 Heavy-Duty Gas Charbroiler, Countertop, 18", Lava Rock, Manual Controls

SKU: RCB-18
$2,502.00
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Charbroilers Commercial Grills Cooking Equipment Equipment Gas Charbroilers New Arrivals Restaurant Equipment Royal Range of California

The RCB-18 is an 18-inch countertop gas charbroiler with lava rock heating, manual controls, and one H-type cast iron burner rated at 40,000 BTU/hr.

Its compact heavy-gauge chassis includes stainless steel sides and a front valve cover, a fully welded removable and replaceable interior firebox, and a full-width removable stainless steel crumb pan.

  • Individually adjustable burner with manual controls
  • Heavy-duty cast iron bottom grates
  • Cast iron top grates for flat or incline positioning

Overall Dimensions:

18.0"W x 28.0"D x 11.0"H

Product Weight:

240.0 lb

Lava rock heating

Uses lava rocks as the heating source.

H-type cast iron burner

Includes one H-type cast iron burner rated at 40,000 BTU/hr.

Manual controls

The burner has manual controls and is individually adjustable.

Removable firebox

The fully welded interior firebox is removable and replaceable.

Removable crumb pan

A full-width removable stainless steel crumb pan supports cleaning.

Heavy-gauge chassis

Built with a compact heavy-gauge chassis.

Stainless steel panels

Features stainless steel sides and a stainless steel front valve cover.

Cast iron grates

Includes heavy-duty cast iron bottom grates and cast iron top grates for flat or incline positioning.

Product type Heavy-duty gas charbroiler
Installation type Countertop
Heating source Lava rock
Controls Manual
Burner type H-type cast iron
Number of burners 1
Total input 40,000 BTU/hr
Gas connection 3/4 in NPT on the right-hand rear
Gas pressure 5 in W.C. natural gas; 10 in W.C. propane
Chassis Compact heavy gauge
Sides and front valve cover Stainless steel
Firebox Fully welded, removable and replaceable interior firebox
Bottom grates Heavy-duty cast iron
Top grates Cast iron; flat or incline position
Crumb pan Full-width, removable stainless steel
Installation clearance Non-combustible locations only; 0 in rear and sides

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Two-year limited parts and labor warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The RCB-18 is 18.0 in wide, 28.0 in deep, and 11.0 in high, with a listed weight of 240.0 lb.
It has one H-type cast iron burner rated at 40,000 BTU/hr.
It uses manual controls, and the burner is individually adjustable.
The specified connection is 3/4 in NPT on the right-hand rear of the appliance.
The cutsheet specifies installation in non-combustible locations only, with 0 in clearance at the rear and sides.
The cast iron top grates are specified for flat or incline positioning.
The warranty sheet states a two-year limited parts and labor warranty for the original purchaser, subject to its installation, maintenance, and other terms. Cast iron parts are warranted for 90 days.
