Royal Range of California Royal Series RARB-72 Gas Countertop Charbroiler, 72-Inch, Radiant, Manual Controls
SKU: RARB-72
$15,011.00

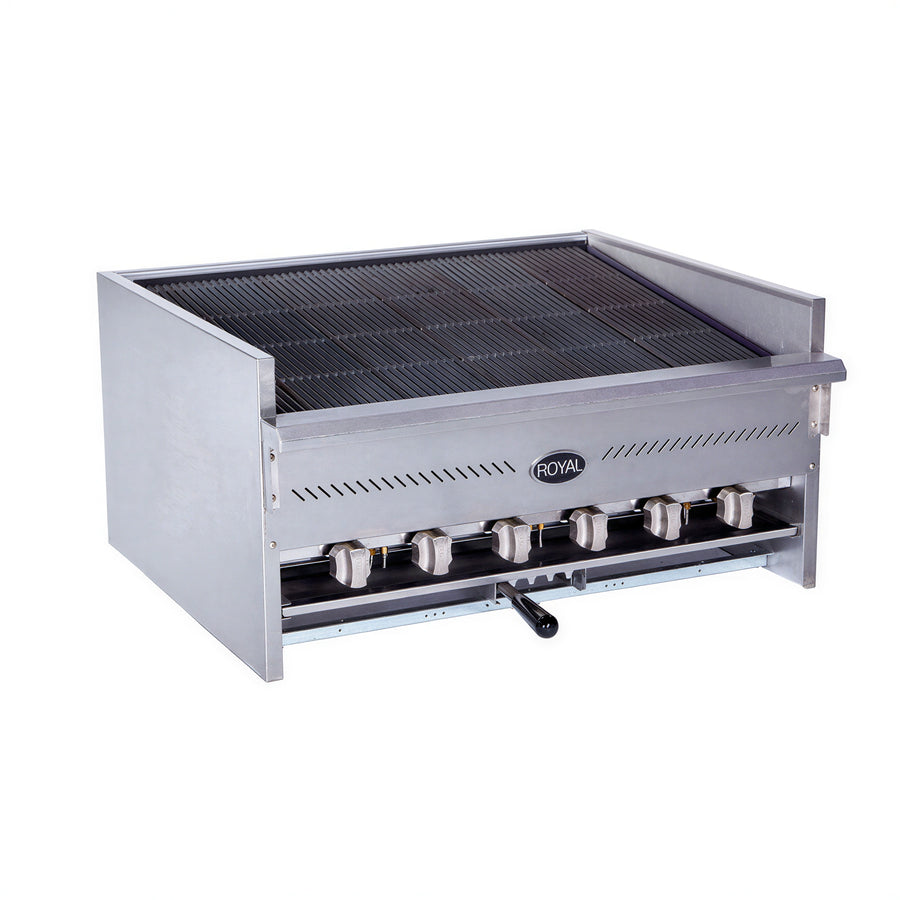

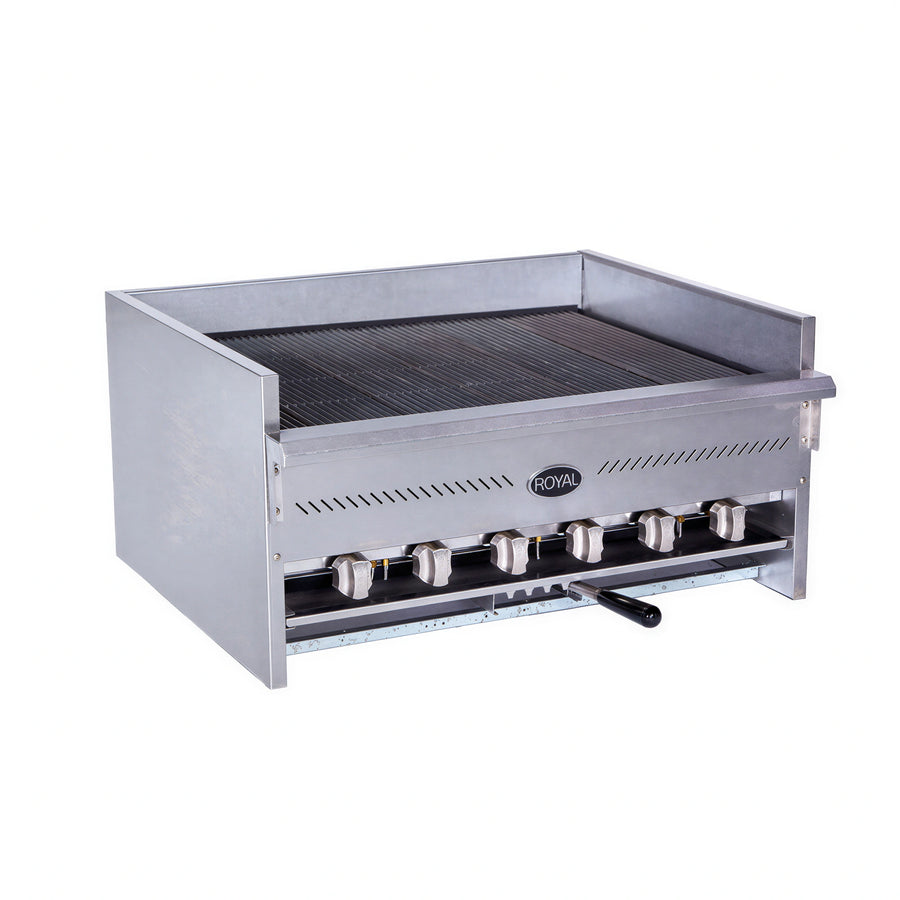

The RARB-72 is a 72-inch gas countertop charbroiler with radiant heating, manual controls with pilots, and 240,000 BTU total input.
- Includes two manually adjustable cast iron grate sections.
- Features stainless steel sides and a stainless steel front valve cover.
- The removable and replaceable firebox and full-width removable crumb pan support service and cleaning.
- The cooking grates provide five tilt positions, and the cooking surface is 24 inches deep.
Overall Dimensions:
72.0"W x 31.5"D x 18.0"HProduct Weight:
600.0 lbRadiant gas heating
The charbroiler uses radiant heating with a total input of 240,000 BTU.
Manual pilot controls
Burners are individually controlled by manual valves and use standing pilots.
Adjustable cast iron grates
Two manually adjustable cast iron grate sections provide five cooking grate tilt positions.
Removable firebox
The interior firebox is fully welded and removable and replaceable.
Removable crumb pan
A full-width removable crumb pan is included.
Stainless steel exterior components
The unit has stainless steel sides and a stainless steel front valve cover.
Appliance type
Gas countertop charbroiler
Heating type
Radiant
Control type
Manual controls with pilot
Number of burners
12
Burner rating
20,000 BTU/hr each
Total input
240,000 BTU
Grate sections
2 manually adjustable cast iron grate sections
Cooking surface depth
24 in
Gas connection
3/4 in NPT, right-hand rear
Installation location
Non-combustible location only
Certifications & Compliance
Warranty & Protection
Two-year limited warranty covering parts and labor.
Frequently Asked Questions
Yes. It is a gas countertop charbroiler with radiant heating.
The RARB-72 has 12 burners.
The total input is 240,000 BTU.
Yes. It has two manually adjustable cast iron grate sections with five cooking grate tilt positions.
The product measures 72 inches wide by 31.5 inches deep by 18 inches high and weighs 600 pounds.
The gas connection is 3/4-inch NPT on the right-hand rear of the appliance.
The cutsheet specifies installation in a non-combustible location only.
