Refrigeration X XF24-1-N Reach-In Freezer, 1 Section, 21.94 cu. ft., Solid Hinged Door, Top-Mounted Self-Contained Refrigeration

SKU: XF24-1-N
$1,786.80
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

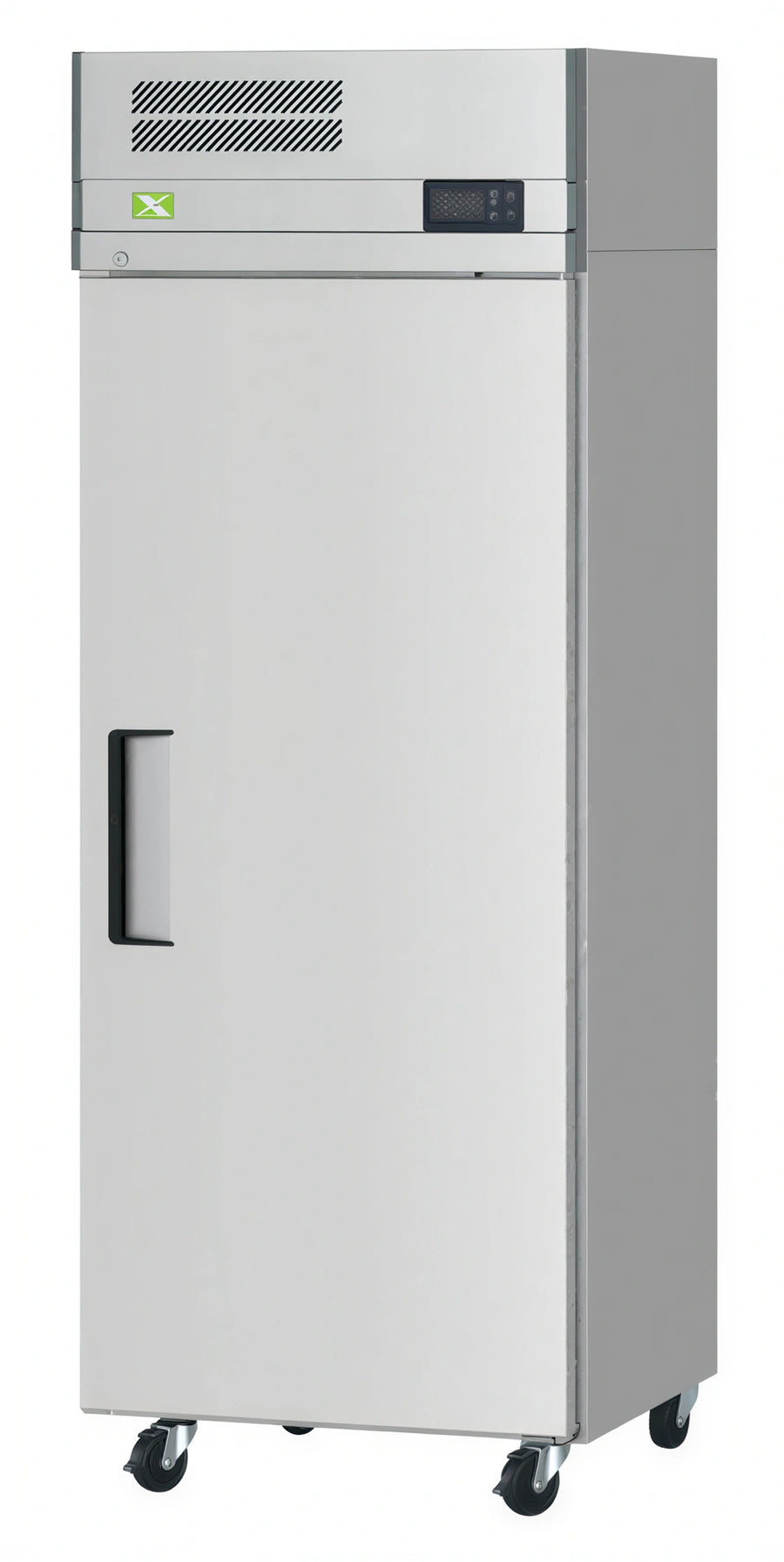

The Refrigeration X XF24-1-N is a one-section, 21.94 cu. ft. reach-in freezer with one solid stainless steel hinged door, a door lock, and top-mounted self-contained refrigeration.

It includes digital temperature control and monitoring, LED interior lighting, and three adjustable PE-coated wire shelves. The cabinet has an aluminum and stainless steel interior, aluminum exterior sides, and a stainless steel exterior door.

  • R-290 hydrocarbon refrigerant
  • Temperature range of -10°F to 0°F
  • High-density, CFC-free polyurethane insulation
  • 115 V, 60 Hz, single-phase electrical connection with NEMA 5-15P plug

Overall Dimensions:

28.75"W x 30.75"D x 78.0"H

Product Weight:

289.0 lb

Digital temperature control and monitoring

Digital temperature control and monitor system with display, door-seal alarms, early warning alarm programming, and self-diagnosis functions.

Top-mounted self-contained refrigeration

The refrigeration system is self-contained and top mounted.

R-290 refrigerant

Uses R-290 hydrocarbon refrigerant.

Adjustable shelving

Includes three adjustable, heavy-duty PE-coated wire shelves.

LED interior lighting

LED lighting is provided inside the cabinet.

Solid locking door

Includes one stainless steel solid hinged door with a lock.

Cabinet construction

The exterior door is stainless steel, the exterior sides are aluminum, and the interior combines stainless steel and aluminum.

Polyurethane insulation

The cabinet structure and solid door use high-density, CFC-free polyurethane insulation.

Temperature range

The freezer holds temperatures from -10°F to 0°F.

Related Searches

New Arrivals Refrigeration X
Capacity 21.94 cu. ft.
Sections 1
Door count 1
Door style Full hinged
Door type Solid
Door lock Yes
Shelves 3 adjustable PE-coated wire shelves
Shelf size 23 7/8 x 23 1/8 in.
Temperature range -10°F to 0°F
Refrigeration Self-contained, top mounted
Refrigerant R-290 hydrocarbon
Compressor HP 1/2 HP
Voltage 115 V
Frequency 60 Hz
Phase Single phase
Full load amperage 4.9 A
Plug type NEMA 5-15P
Cord length 9 ft.
Exterior finish Stainless steel door; aluminum sides; galvanized steel top, bottom, and back
Interior finish Stainless steel bottom; aluminum walls, door liners, and top duct
Insulation High-density, CFC-free polyurethane
Interior lighting LED
Casters 4 in. swivel casters with locks on the front set
Overall dimensions 28.75 W x 30.75 D x 78 H in.
Dimensional notes Depth excludes 2 3/8 in. for the rear condensate enclosure; height excludes 4 3/4 in. for caster height
Net weight 271 lb
Shipping/gross weight 289 lb

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year parts and labor warranty with an additional 3-year warranty on the compressor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

The freezer has a 21.94 cu. ft. net capacity.
It includes three adjustable PE-coated wire shelves.
It uses a top-mounted, self-contained refrigeration system with R-290 hydrocarbon refrigerant.
The freezer holds temperatures from -10°F to 0°F.
The unit operates at 115 V, 60 Hz, single phase, draws 4.9 A, and uses a NEMA 5-15P plug.
Yes. The unit has one solid hinged door with a lock.
The product includes a 2-year parts and labor warranty plus an additional 3-year warranty on the compressor, for the U.S.A.
