Refrigeration X

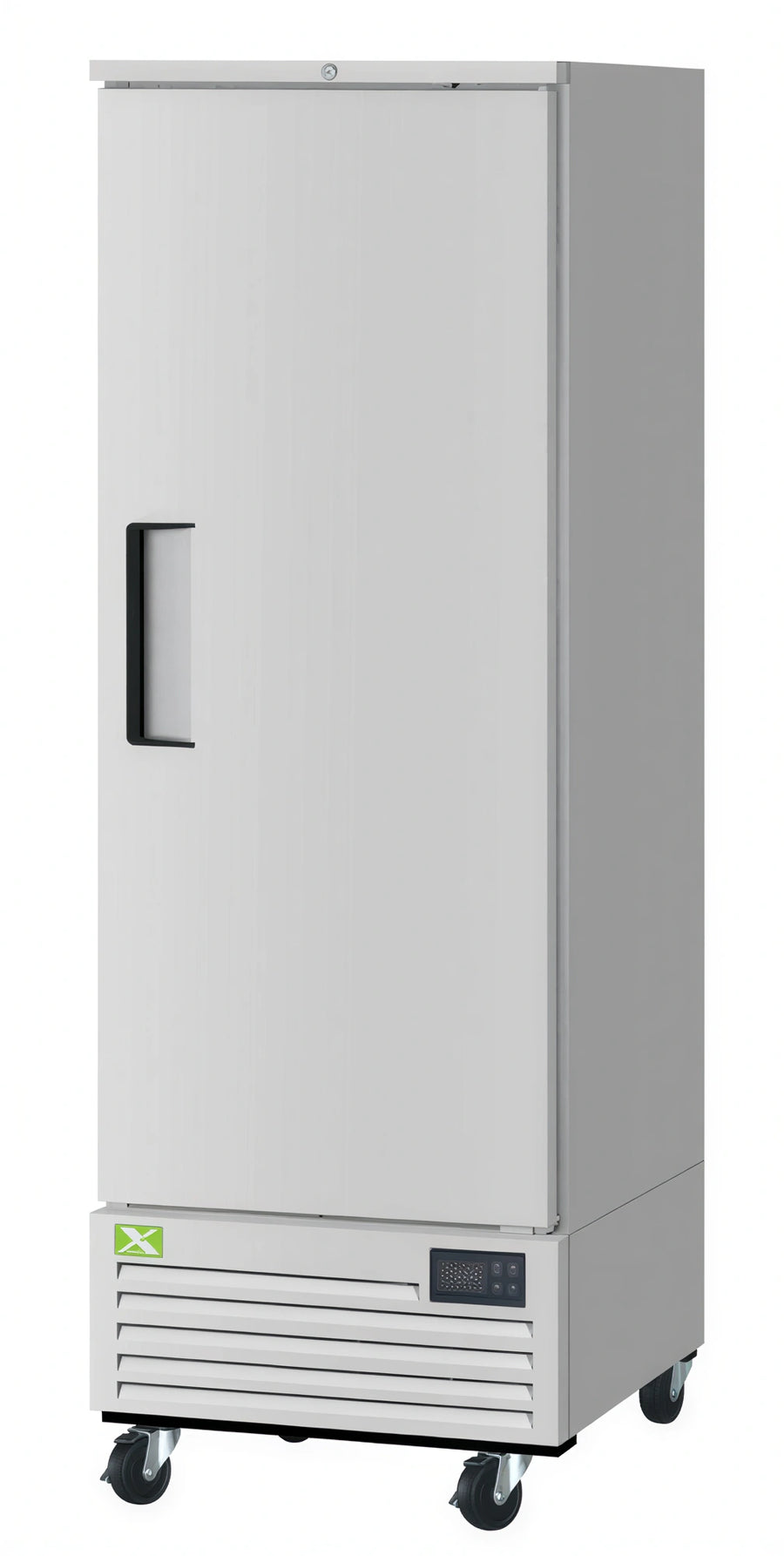

Refrigeration X XBR24-1-N6 Reach-In Refrigerator, 1 Section, 21.94 cu. ft., Solid Hinged Door, Bottom-Mounted Self-Contained

SKU: XBR24-1-N6
$1,762.80
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration New Arrivals Reach-In Cabinet Equipment Reach-in Refrigerators Reach-In Refrigerators Refrigeration & Ice Refrigeration X Refrigerators & Freezers Restaurant Equipment

XBR24-1-N6 is a one-section reach-in refrigerator with 21.94 cu. ft. net capacity, bottom-mounted self-contained refrigeration, and one solid full-hinged door with a lock.

Digital temperature control and monitoring, LED interior lighting, and three adjustable PE-coated wire shelves support refrigerated storage. The unit is specified to hold 33°F–38°F.

  • Stainless steel door exterior with aluminum sides and galvanized steel top, bottom, and back.
  • Stainless steel interior bottom with aluminum walls, door liners, and top duct.
  • R-600a hydrocarbon refrigerant and 115 V / 60 Hz / 1-phase electrical service.

Overall Dimensions:

28.75"W x 30.75"D x 78.0"H

Digital temperature control and monitoring

Digital display, door-seal alarms, self-diagnosis programs, rapid cool-down function, and automatic evaporator fan motor delay.

Bottom-mounted self-contained refrigeration

The refrigeration system is self-contained and mounted at the bottom of the cabinet.

Solid locking door

One solid full-hinged door includes a lock and stainless steel exterior.

Adjustable wire shelving

Includes three adjustable, heavy-duty PE-coated wire shelves.

LED interior lighting

LED lighting illuminates the refrigerator interior.

Cabinet construction

The exterior has a stainless steel door, aluminum sides, and galvanized steel top, bottom, and back. The interior has a stainless steel bottom with aluminum walls, door liners, and top duct.

High-density insulation

The cabinet and solid door use foamed-in-place, CFC-free polyurethane insulation.

Hot gas condensate system

The condensate system uses corrosion-treated surfaces.

Swivel casters

Four-inch swivel casters are provided, with locks on the front set.

Capacity 21.94 cu. ft.
Sections 1
Temperature range 33°F–38°F
Refrigeration Self-contained, bottom mounted
Door count 1
Door type Solid
Door style Full hinged
Door lock Yes
Shelves 3 adjustable PE-coated wire shelves
Shelf size 23 7/8 x 23 1/8 in.
Interior lighting LED
Exterior finish Stainless steel door exterior; aluminum sides; galvanized steel top, bottom, and back
Interior finish Stainless steel bottom; aluminum walls, door liners, and top duct
Insulation High-density, CFC-free polyurethane
Refrigerant R-600a hydrocarbon
Compressor 1/8 HP
Voltage 115 V
Frequency 60 Hz
Phase 1
Full load amperage 1.5 A
Plug type NEMA 5-15P
Cord length 9 ft
Casters 4 in. swivel casters; front set with locks
Net weight 260 lb
Gross weight 278 lb

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year parts and labor warranty plus an additional 3-year compressor warranty, for 5 years of compressor coverage total.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The refrigerator has a 21.94 cu. ft. net capacity.
Yes. It uses a self-contained refrigeration system mounted at the bottom.
It includes three adjustable PE-coated wire shelves.
The refrigerator is specified to hold 33°F–38°F.
It uses 115 V / 60 Hz / 1-phase electrical service, draws 1.5 A, and has a NEMA 5-15P plug.
Yes. The single solid door includes a lock.
The product has a 2-year parts and labor warranty plus an additional 3-year compressor warranty, for 5 years of compressor coverage in the U.S.A.
