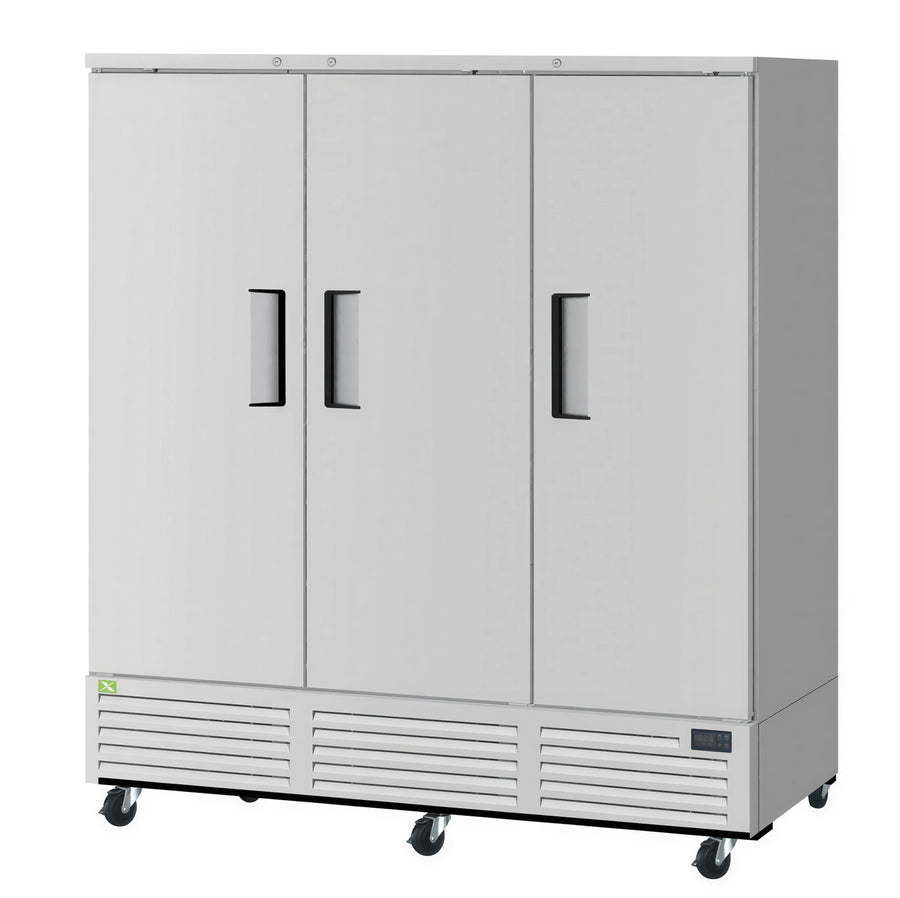

Refrigeration X XBF72-3-N Three-Section Reach-In Freezer, 65.8 cu. ft., Solid Hinged Stainless Steel Doors, Bottom-Mount Self-Contained

SKU: XBF72-3-N
$4,587.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Frozen Food Storage & Dispensers New Arrivals Reach-In Cabinet Equipment Reach-in Freezers Reach-In Freezers Reach-In Refrigerators & Freezers Refrigeration & Ice Refrigeration X Refrigerators & Freezers Restaurant Equipment

The XBF72-3-N is a three-section, bottom-mount reach-in freezer with 65.8 cu. ft. of capacity, three solid hinged stainless steel doors, and door locks.

  • Includes 9 adjustable PE-coated wire shelves and LED interior lighting.
  • Digital temperature control and monitoring system includes door-seal alarms, early-warning diagnostics, rapid cool-down, and automatic evaporator fan motor delays.
  • Operates from -10°F to 0°F using R-290 hydrocarbon refrigerant.
  • Construction includes stainless steel doors, aluminum sides, galvanized steel top, bottom, and back, plus a stainless steel interior bottom with aluminum walls, door liners, and top duct.
  • Features a 1 HP bottom-mount, self-contained refrigeration system with a 115 V connection and NEMA 5-15P plug.

Listed dimensions are 77-3/4 in. wide by 30-7/8 in. deep by 78 in. high. The cutsheet notes that the listed height does not include 4-3/4 in. for caster height.

Overall Dimensions:

77.75"W x 30.87"D x 78.0"H

Three-section storage

Provides 65.8 cu. ft. of net freezer capacity across three sections.

Solid hinged doors with locks

Includes three stainless steel solid doors with locks.

Digital temperature control and monitoring

Includes digital display, door-seal alarms, early-warning diagnostics, self-diagnosis programs, rapid cool-down, and automatic evaporator fan motor delays.

Adjustable shelving

Includes 9 adjustable PE-coated wire shelves.

Bottom-mount refrigeration

Uses a 1 HP, self-contained refrigeration system mounted at the bottom.

R-290 refrigerant

Uses R-290 hydrocarbon refrigerant.

LED interior lighting

Includes LED lighting inside the cabinet.

Cabinet construction

Uses stainless steel doors, aluminum exterior sides, galvanized steel top, bottom, and back, plus a stainless steel interior bottom with aluminum walls, door liners, and top duct.

Operating temperature

The cutsheet specifies a freezer range of -10°F to 0°F.

Caster mobility

Features 4 in. swivel casters with locks on the front set.

Capacity 65.8 cu. ft.
Sections 3
Door count 3
Door style Full hinged
Door type Solid
Door locks Yes
Shelves 9 adjustable PE-coated wire shelves
Refrigeration Self-contained, bottom-mounted
Temperature range -10°F to 0°F
Refrigerant R-290 hydrocarbon
Compressor 1 HP
Voltage 115 V
Frequency 60 Hz
Phase Single phase
Amperage 7.9 A
Plug type NEMA 5-15P
Interior lighting LED
Exterior construction Stainless steel doors; aluminum sides; galvanized steel top, bottom, and back
Interior construction Stainless steel bottom; aluminum walls, door liners, and top duct
Insulation High-density, CFC-free polyurethane
Casters 4 in. swivel casters; front set with locks
Net weight 540 lb
Gross weight 635 lb

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year parts and labor warranty plus an additional 3-year compressor warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The freezer has 65.8 cu. ft. of net capacity.
It has three solid hinged doors with locks and nine adjustable PE-coated wire shelves.
The cutsheet specifies an operating range of -10°F to 0°F.
It uses a 1 HP, bottom-mount, self-contained refrigeration system with R-290 hydrocarbon refrigerant.
The unit is rated at 115 V, 60 Hz, single phase, and 7.9 A, with a NEMA 5-15P plug.
The listed dimensions are 77-3/4 in. wide by 30-7/8 in. deep by 78 in. high. The cutsheet notes that the listed height does not include 4-3/4 in. for caster height.
The cutsheet lists a 2-year parts and labor warranty plus an additional 3-year compressor warranty; its 5-year warranty notation is marked U.S.A. only.
