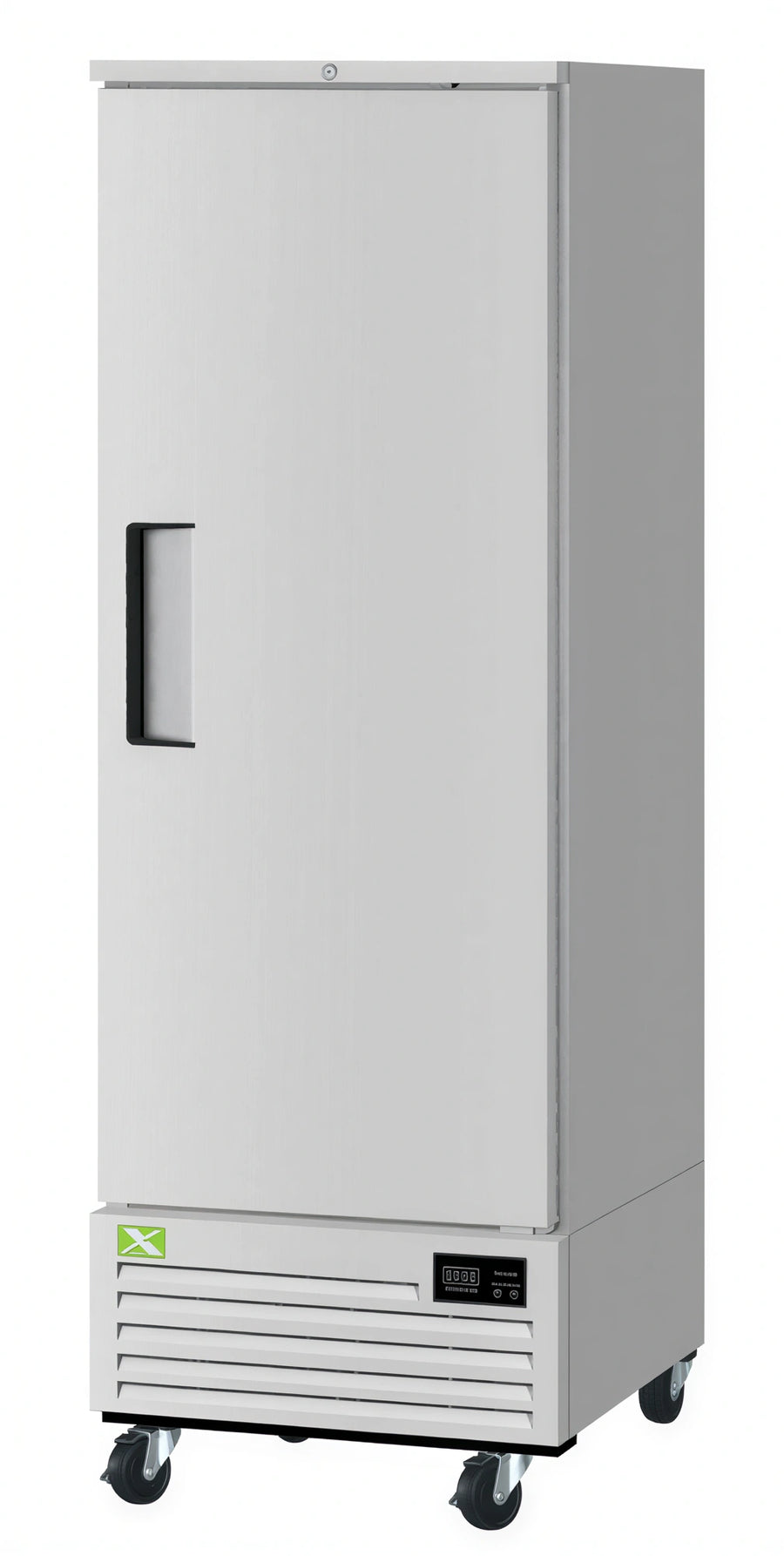

Refrigeration X XBF24-1-N One-Section Reach-In Freezer, 21.94 Cu. Ft., Solid Stainless Steel Door, Bottom-Mounted Self-Contained Refrigeration

SKU: XBF24-1-N
$2,061.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Frozen Food Storage & Dispensers New Arrivals Reach-In Cabinet Equipment Reach-in Freezers Reach-In Freezers Reach-In Refrigerators & Freezers Refrigeration & Ice Refrigeration X Refrigerators & Freezers Restaurant Equipment

The XBF24-1-N is a one-section reach-in freezer with 21.94 cu. ft. of capacity, a solid stainless steel door with lock, and bottom-mounted self-contained refrigeration.

  • Temperature control: Digital temperature control and monitoring system with door-seal alarms, early-warning alarm programming, self-diagnosis, rapid cool-down, and automatic evaporator fan motor delay.
  • Construction: Stainless steel door exterior, aluminum exterior sides, galvanized steel top, bottom, and back, plus a stainless steel interior bottom with aluminum walls, door liners, and top duct.
  • Storage: Three adjustable PE-coated wire shelves and LED interior lighting.
  • Refrigeration: R-290 hydrocarbon refrigerant and a 1/2 HP bottom-mounted compressor.

Overall dimensions are 28.75 W x 30.75 D x 78 H inches. The cut sheet notes that the stated height excludes 4.75 inches for caster height.

Overall Dimensions:

28.75"W x 30.75"D x 78.0"H

Digital temperature control and monitoring

Digital display with door-seal alarms, early-warning alarm programming, self-diagnosis, rapid cool-down, and automatic evaporator fan motor delay.

Bottom-mounted self-contained refrigeration

The refrigeration system is self-contained and bottom mounted.

R-290 refrigerant

Uses R-290 hydrocarbon refrigerant.

Solid locked door

Includes one solid stainless steel hinged door with a lock.

Adjustable shelving

Includes three adjustable PE-coated wire shelves.

LED interior lighting

LED lighting is provided inside the cabinet.

Cabinet construction

The door exterior is stainless steel; exterior sides are aluminum, with a galvanized steel top, bottom, and back. The interior has a stainless steel bottom with aluminum walls, door liners, and top duct.

Insulated cabinet and door

The cabinet structure and solid door use foamed-in-place, high-density, CFC-free polyurethane insulation.

Swivel casters

Includes 4-inch-diameter swivel casters, with locks on the front set.

Product type Reach-in freezer
Configuration One section
Capacity 21.94 cu. ft.
Door 1 solid hinged stainless steel door with lock
Shelves 3 adjustable PE-coated wire shelves
Refrigeration Self-contained, bottom mounted
Temperature range -10°F to 0°F
Refrigerant R-290 hydrocarbon
Compressor power 1/2 HP
Electrical 115 V/60/1-ph, 4.9 A
Plug NEMA 5-15P
Interior lighting LED
Exterior construction Stainless steel door, aluminum sides, galvanized steel top, bottom, and back
Interior construction Stainless steel bottom; aluminum walls, door liners, and top duct

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year parts and labor warranty plus an additional 3-year compressor warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The freezer has a 21.94 cu. ft. capacity.
It requires 115 V/60/1-ph power, draws 4.9 amps, and uses a NEMA 5-15P plug.
The freezer is specified to hold temperatures from -10°F to 0°F.
Yes. It has one solid hinged door with a lock.
The cut sheet specifies a 2-year parts and labor warranty plus an additional 3-year compressor warranty. It also lists a 5-year compressor warranty for the U.S.A.
