Refrigeration X XBB-1SB-N6 1-Door Back Bar Cooler, 23-5/8"W x 29-3/4"D x 34-1/2"H, Stainless Steel Top, Black Exterior

SKU: XBB-1SB-N6
$1,411.20
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Back-Bar & Bottle Cooling Equipment Back-Bar Refrigerators Bar & Beverage Refrigeration Bar Equipment Bar Refrigeration Best Sellers Commercial Refrigeration Commercial Refrigerators New Arrivals Refrigeration & Ice Refrigeration X Restaurant Equipment

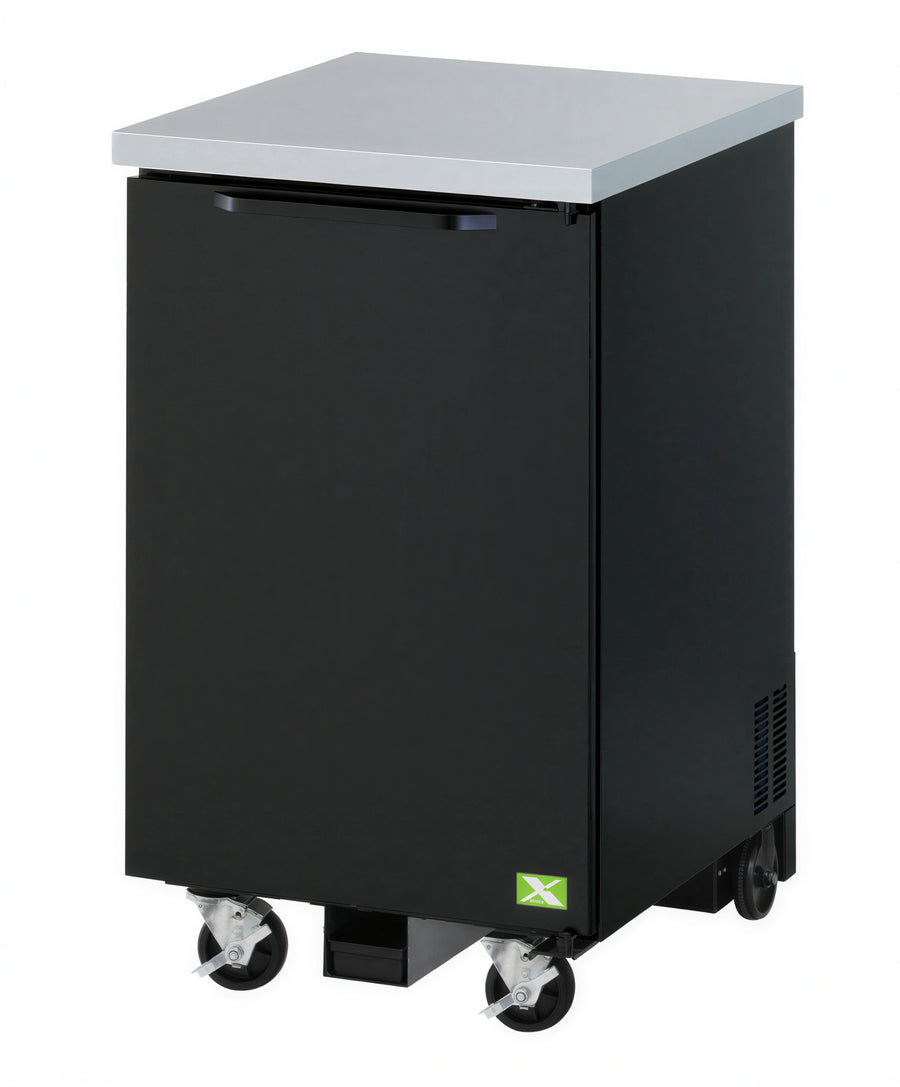

The XBB-1SB-N6 is a one-section back bar cooler with 7.86 cu. ft. of capacity, one solid swing door, two adjustable PE-coated wire shelves, and an LED interior light.

It uses self-contained, bottom-mounted forced-air refrigeration with R-600a hydrocarbon refrigerant and a documented temperature range of 33°F to 38°F. Construction includes a stainless steel top, painted galvanized interior with a stainless steel floor, and black vinyl-coated galvanized exterior.

  • 115 V / 60 Hz / 1 ph electrical connection
  • 2.0 A full-load current and NEMA 5-15P plug
  • High-density, HCFC-free polyurethane insulation
  • Four swivel casters with locks on the front set

Overall Dimensions:

23.62"W x 29.75"D x 34.5"H

Self-contained refrigeration

The refrigeration system is self-contained and bottom-mounted.

Forced-air cooling

The documented cooling system uses forced air.

R-600a refrigerant

Uses R-600a hydrocarbon refrigerant.

Adjustable wire shelves

Includes two adjustable, heavy-duty PE-coated wire shelves.

Stainless steel top and interior components

Includes a stainless steel top, painted galvanized interior, and reinforced stainless steel floor.

LED interior lighting

Provides LED lighting inside the cabinet.

Solid swing door

Features one solid swing door with a documented self-closing door feature.

Swivel casters

Includes four swivel casters with locks on the front set.

Product type Back bar cooler
Configuration One section
Capacity 7.86 cu. ft.
Barrel capacity 1/2 barrel
Door count 1
Door type Solid swing door
Shelf count 2
Shelf construction PE-coated wire; adjustable
Refrigeration system Self-contained, bottom-mounted
Cooling system Forced air
Temperature range 33°F to 38°F
Refrigerant R-600a hydrocarbon
Exterior finish Black vinyl-coated galvanized steel
Top finish Stainless steel
Interior construction Painted galvanized steel with stainless steel floor
Interior lighting LED
Insulation High-density, HCFC-free polyurethane
Compressor 1/10 HP
Electrical 115 V / 60 Hz / 1 ph
Current draw 2.0 A
Plug type NEMA 5-15P
Power cord length 8.5 ft.
Casters 4 swivel casters; front set with locks
Net weight 190 lb
Gross weight 212 lb
Dimensional notes Depth excludes 3/8 in. for the door handle; height excludes 4-7/8 in. for caster height

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year parts and labor warranty and 5-year compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

The listed dimensions are 23-5/8 in. wide x 29-3/4 in. deep x 34-1/2 in. high. The documented depth excludes 3/8 in. for the door handle, and the height excludes 4-7/8 in. for caster height.
The cooler has 7.86 cu. ft. of capacity and is listed for one 1/2 barrel.
Two adjustable, heavy-duty PE-coated wire shelves are included.
The unit uses self-contained, bottom-mounted forced-air refrigeration with R-600a hydrocarbon refrigerant and a documented temperature range of 33°F to 38°F.
It uses 115 V / 60 Hz / 1 ph power, draws 2.0 A, and has a NEMA 5-15P plug.
The documented warranty is 2 years for parts and labor and 5 years for the compressor, in the U.S.A.
