RATIONAL iVario Pro XL Pressure Multifunctional Cooking Center with Stand, 40 Gallon, 208/240V 3-Phase

SKU: IVARIOPRO XL P 3PH 208/240V(LMX200DE)-QS
$58,443.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment New Arrivals RATIONAL Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment

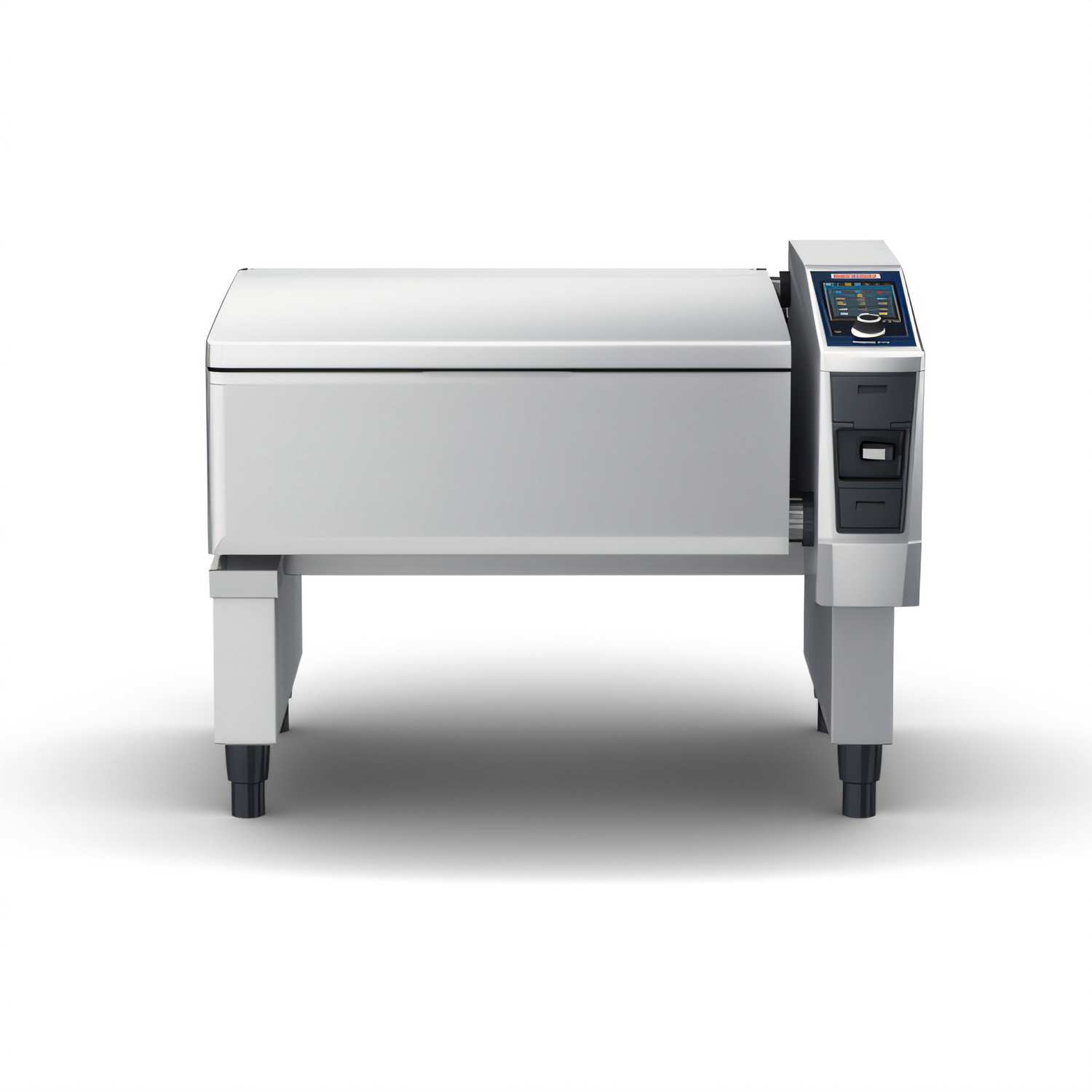

RATIONAL iVario Pro XL Pressure Multifunctional Cooking Center with Stand, 40 Gallon, 208/240V 3-Phase

Pressure version with open-frame stand and plastic feet

Built for high-volume production, this pressure cooking center combines rapid heat response and intelligent automation to deliver consistent results in less time.

  • 40-gallon usable capacity for high-volume braising, frying, boiling, and pressure cooking.
  • Pressure version helps speed production while preserving product quality.
  • iVarioBoost, iCookingSuite, and iZoneControl automate heat control and cooking paths.
  • Integrated water fill, retractable hand shower, and direct drain simplify operation and cleanup.
  • 6-point core probe, motorized pan control, and AutoLift support ergonomic handling.
  • Built-in WiFi, Ethernet, and USB support ConnectedCooking management.
  • Stainless steel construction with IPX5 protection and included stand with plastic feet.

Overall Dimensions:

53.75"W x 35.25"D x 23.88"H

Product Weight:

225.0 lb

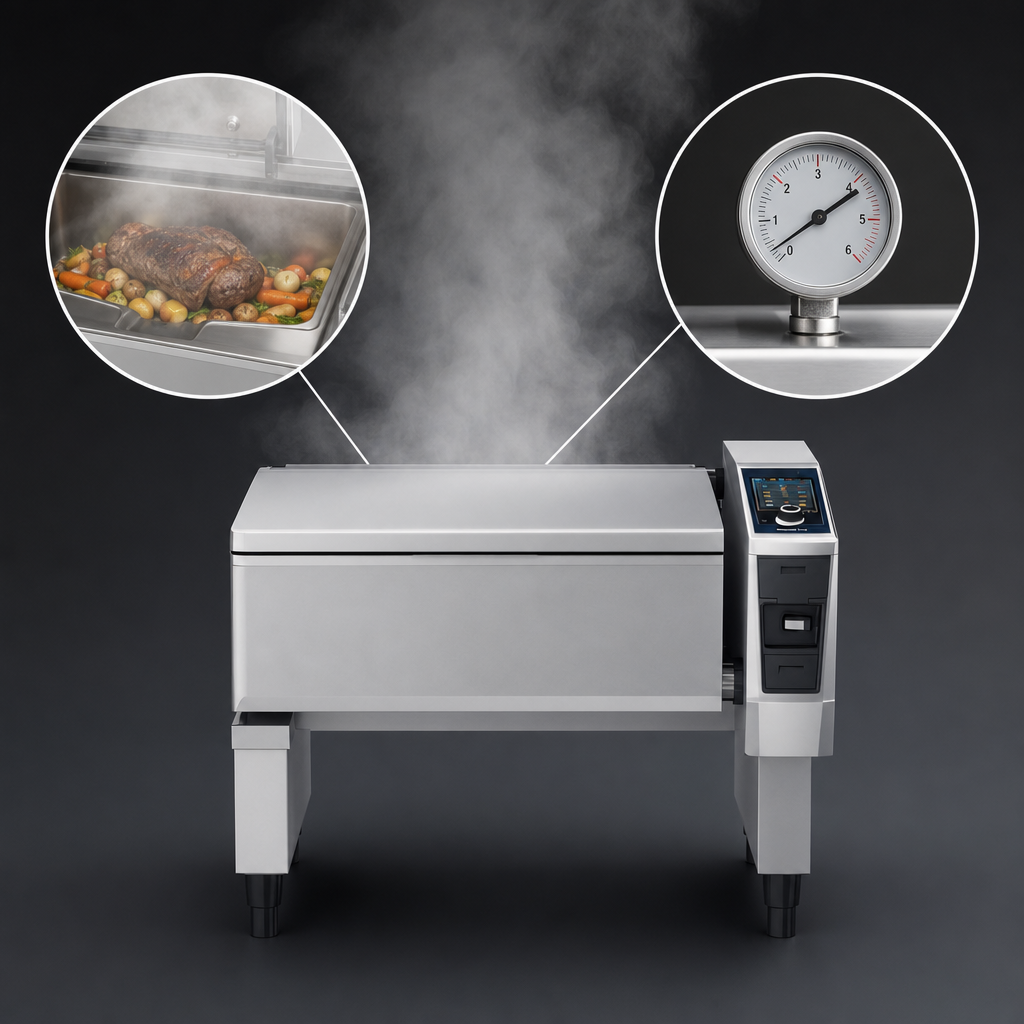

Pressure Cooking Option

Optional pressure cooking speeds preparation up to 35% and operates at a maximum pressure of 4.4 PSI.

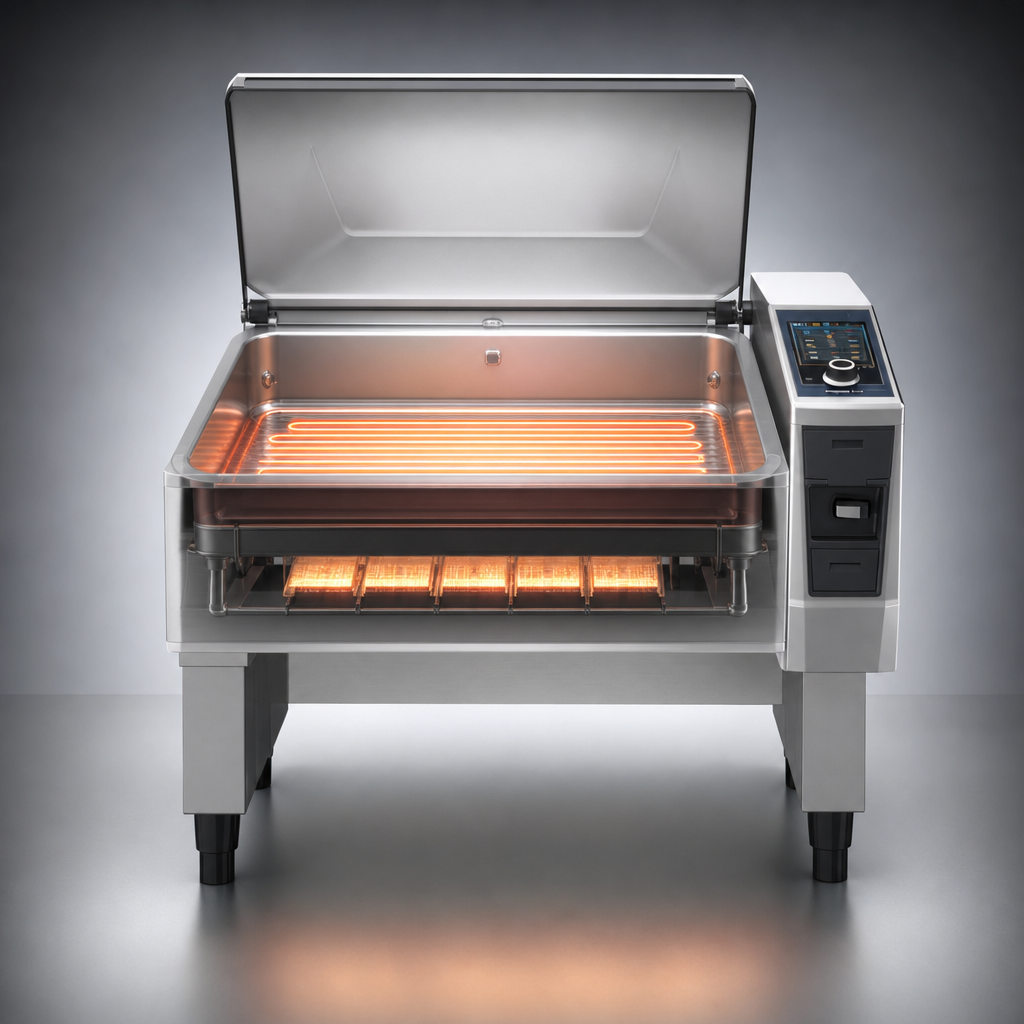

iVarioBoost Heating System

Ceramic heating elements attached to the pan base deliver fast, even heating and rapid temperature recovery.

iCookingSuite Intelligent Control

Sensors detect load quantity, piece size, and food condition, then automatically adjust the cooking path.

iZoneControl Up to Four Zones

Divides the pan base into up to four individually controlled heating zones for different temperatures or cooking paths.

6-Point Core Temperature Probe

Multi-point core probe with magnetic holder and automatic error correction for more accurate cooking results.

Motorized Pan Control

The pan is controlled by an electric motor and operated from the unit display for easier handling.

AutoLift Basket Handling

Automatic removal of boiling and deep-frying baskets improves ergonomics; baskets and the arm accessory are required for use.

Automatic Water Fill and Direct Drain

Water is filled automatically and cooking or cleaning water drains directly through the integrated pan drain without tilting.

Retractable Hand Shower

Integrated hand shower retracts automatically and offers spray and jet modes for cleaning and prep tasks.

10.1-Inch Touchscreen Interface

High-resolution capacitive TFT touchscreen with a central push dial for intuitive operation.

WiFi, Ethernet, and USB Connectivity

Built-in connectivity supports ConnectedCooking, recipe transfer, HACCP data management, and remote service support.

Stainless Steel Construction and IPX5

Stainless steel interior and exterior with IPX5 splash and spray protection for easier cleaning.

Included Stand with Plastic Feet

Ships with a stand for floor installation with plastic feet.

Type Multifunctional Cooking Center
Style Pressure Version
Installation Type Floor Model (With Stand)
Controls Digital Touchscreen
Capacity 40 Gallons
Temperature Range 85 to 480 Degrees F
Material Stainless Steel
Interior Finish Stainless Steel
Water Connection Required
Water Inlet Size 3/4 Inch GHT
Drain Connection Required
Drain Connection Size 2 Inches
Voltage 208/240 Volts
Amps 96 Amps at 208 Volts / 88 Amps at 240 Volts
Watts 34 kW at 208 Volts / 37 kW at 240 Volts
Hertz 60 Hz
Phase 3-Phase
Selling Unit Each
Units Per Case 1
Shipping Width 54 Inches
Shipping Depth 36 Inches
Shipping Height 24 Inches
Shipping Weight 718 lb

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year parts and labor

Documents

PDF Cutsheet PDF Download PDF R195-clx water filtration PDF Download PDF Warranty PDF Download PDF Installation PDF Download PDF Quick ship flyer PDF Download PDF Unit and accessories catalog PDF Download PDF Installation kit 1565 PDF Download PDF Certified installation PDF Download PDF Height adjustable base PDF Download PDF Installation kit 1568 PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The unit has a 40-gallon usable capacity and a 906 sq. in. frying area.
Yes. The pressure cooking option is available and operates at a maximum pressure of 4.4 PSI, helping cook up to 35% faster.
iZoneControl lets you divide the pan base into up to four individually controlled heating zones.
It requires 208/240V, 3-phase electrical service, a 3/4-inch GHT cold water connection, and a 2-inch drain connection. A rear indirect floor drain with air gap is required.
Yes. The unit includes WiFi, Ethernet, and USB interfaces for ConnectedCooking and data exchange.
RATIONAL lists a 2-year manufacturer warranty that includes parts and labor for new units.
