RATIONAL

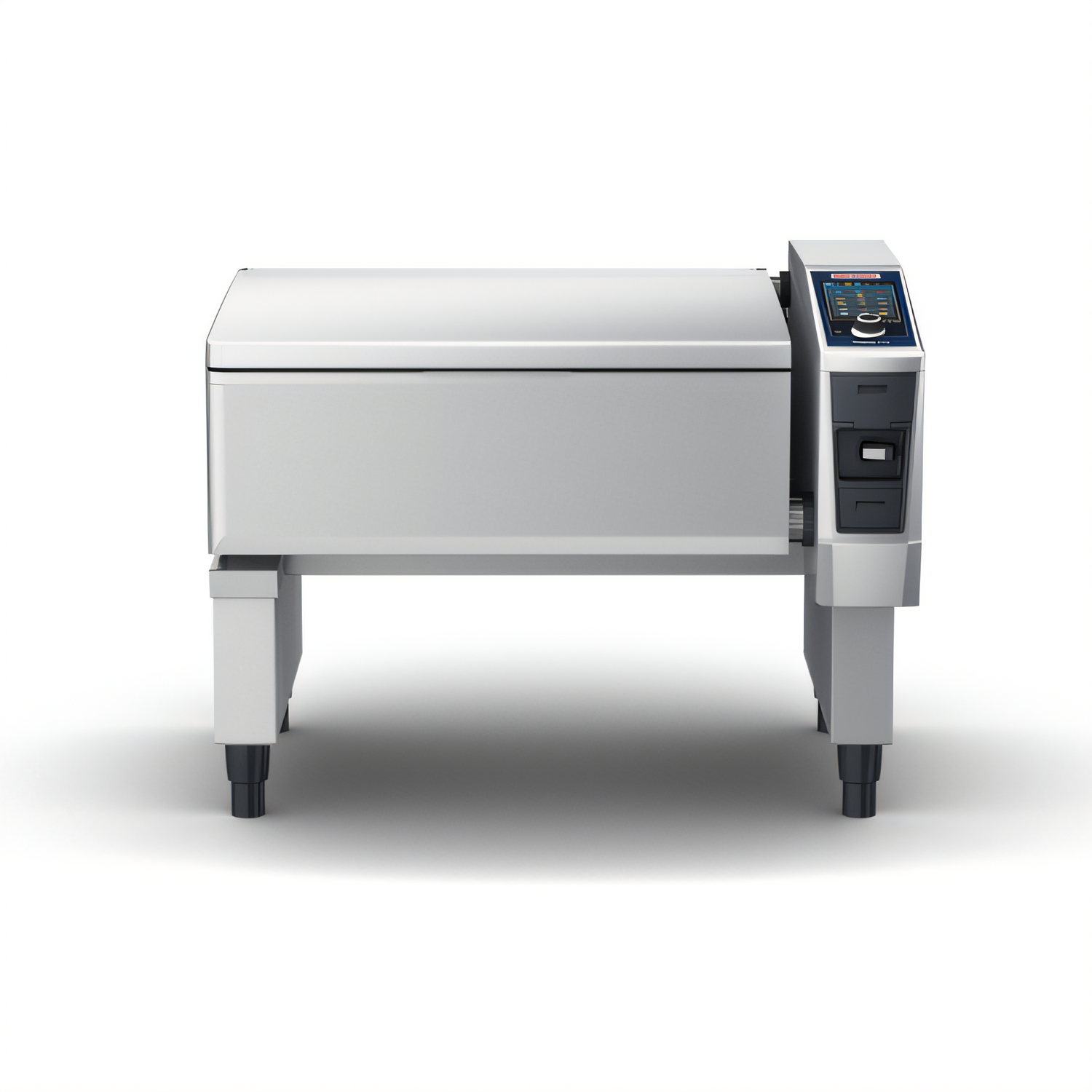

RATIONAL iVario Pro XL Power Tilt Multifunctional Cooking Center with Stand, 40-Gallon, 208/240V, 3-Phase

SKU: IVARIOPRO XL 208/240V 3PH (LMX100DE)
$38,968.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

RATIONAL iVario Pro XL Power Tilt Multifunctional Cooking Center with Stand, 40-Gallon, 208/240V, 3-Phase

Integrated iVarioBoost, iCookingSuite, iZoneControl, WiFi/Ethernet.

A versatile 40-gallon cooking center that combines searing, boiling, deep-frying, and smart zone control in one fast, precise, easy-to-clean unit.

  • 40-gallon usable capacity with a 906 sq. in. pan surface for high-volume production.
  • iVarioBoost delivers fast, even heat recovery for consistent cooking results.
  • iCookingSuite and iZoneControl automate cooking and allow up to 4 independently controlled heating zones.
  • 6-point core temperature sensing, automatic water fill, and motorized pan tilt support precise operation.
  • Integrated WiFi, Ethernet, and USB interfaces support ConnectedCooking and local data exchange.
  • Stainless steel construction, splash/spray protection, and an included stand with plastic feet simplify installation and cleanup.

Overall Dimensions:

53.75"W x 35.25"D x 23.88"H

Product Weight:

295.0 lb

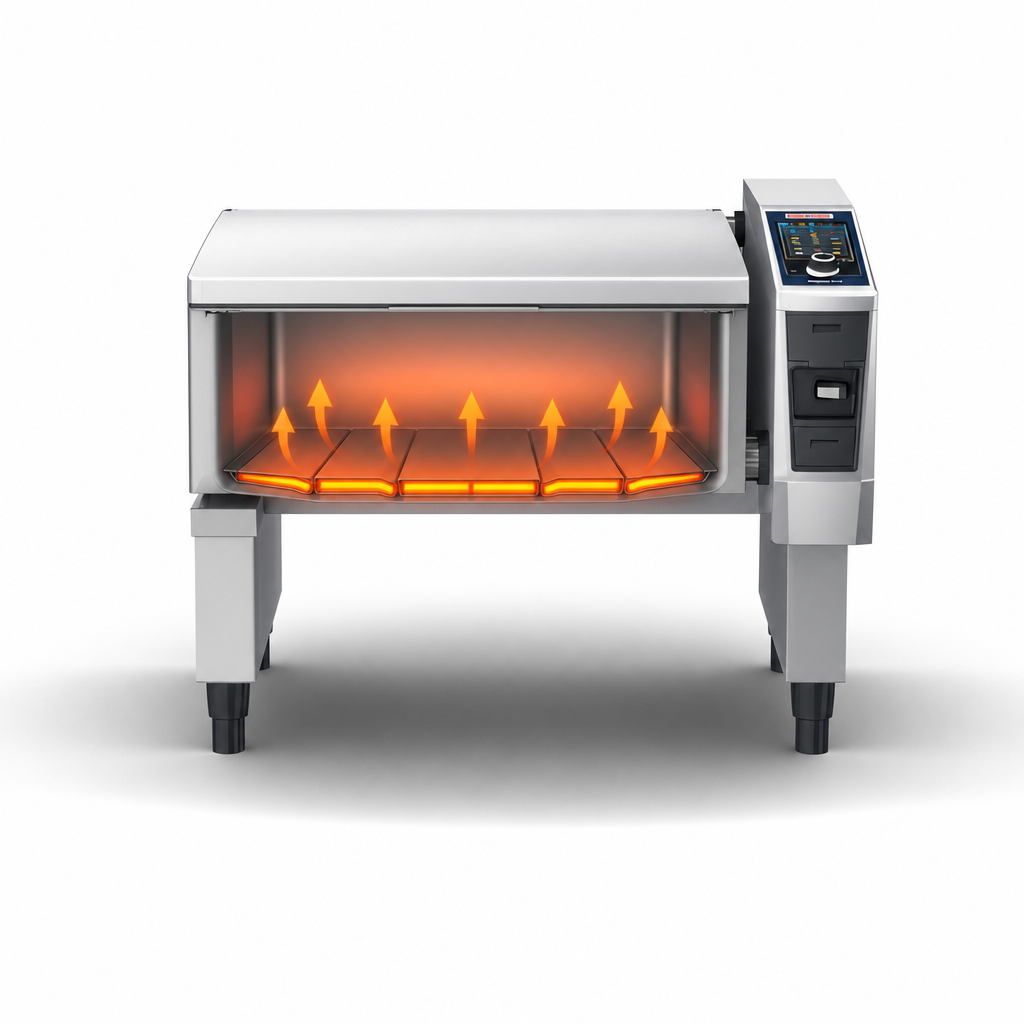

iVarioBoost Energy Management System

Patented heating technology uses ceramic elements attached to the pan base for fast, even heating and quick temperature recovery.

iCookingSuite Intelligent Cooking

Built-in sensors detect load and food conditions, then automatically adjust the cooking path for consistent results.

iZoneControl Multi-Zone Heating

Divide the pan base into up to 4 individually controlled heating zones for flexible, multi-task cooking.

6-Point Core Temperature Probe

Six measuring points provide accurate core temperature monitoring with automatic error correction.

AutoLift Basket Handling

Automatic basket raising and lowering supports efficient boiling and frying; baskets and the arm are required for use.

Automatic Water Fill and Retractable Hand Shower

Portioned water dispensing and a retractable hand shower with spray and jet modes simplify filling and cleaning.

Motorized Pan Tilt with Integrated Drain

Electric pan tilt control and direct drainage help with handling and cleanup without needing a front floor trough.

WiFi, Ethernet, and USB Connectivity

Integrated network and data interfaces support ConnectedCooking and local file transfer.

Stainless Steel Construction with Splash/Spray Protection

Stainless steel interior and exterior support durability and easy cleaning in demanding kitchens.

Included Stand with Plastic Feet

Supplied with a stand featuring plastic feet for stable floor installation.

Type Multifunctional Cooking Center
Style Power Tilt
Installation Type Floor Model (With Stand)
Capacity 40 Gallons
Compartments 1
Cooking Surface Width 40 Inches
Cooking Surface Depth 22 Inches
Material Stainless Steel
Interior Finish Stainless Steel
Controls Digital Touchscreen
Voltage 208/240 Volts
Amps 96/88 Amps
Watts 34/37 kW
Hertz 60 Hz
Phase 3-Phase
Breaker Size 125 Amps
Water Connection Required
Water Inlet Size 3/4 Inch GHT
Drain Connection Required
Drain Connection Size 2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 54 Inches
Shipping Depth 36 Inches
Shipping Height 24 Inches
Shipping Weight 295 lb.

Frequently Asked Questions

The unit has a 40-gallon usable capacity and a 906 sq. in. frying area.
Manual mode supports boiling from 85°F, pan-frying from 85°F to 480°F, and deep-frying from 85°F to 355°F.
Yes. It includes a stand with plastic feet.
It requires 208/240V, 3-phase electrical service, a cold water connection, and a rear indirect floor drain with air gap per local code.
It has integrated WiFi, Ethernet, and USB interfaces for ConnectedCooking and local data exchange.
AutoLift requires the appropriate baskets and the automatic raising/lowering arm for use.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
