RATIONAL

RATIONAL iCombi Pro XS Electric Countertop Combi Oven with UltraVent Plus

SKU: ICP XS E 208/240V 3 PH UVP(LM100AE)
$18,160.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

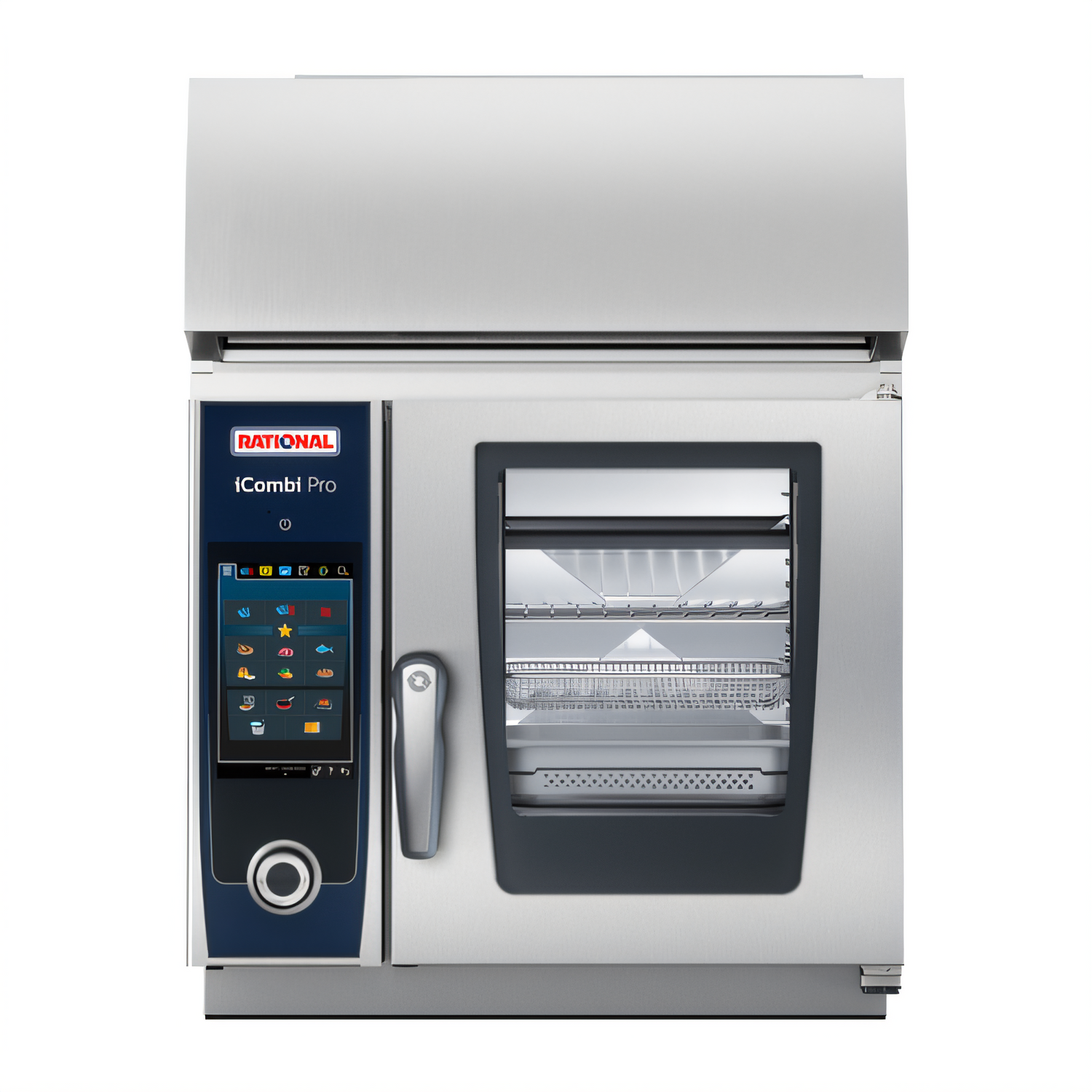

RATIONAL iCombi Pro XS Electric Countertop Combi Oven with UltraVent Plus

208/240V, 3-Phase, 5.7 kW, ENERGY STAR

This compact XS combi oven pairs intelligent cooking automation with a built-in UltraVent Plus hood, so you can cook, clean, and ventilate in one space-saving unit.

  • Built-in UltraVent Plus recirculating hood captures steam and reduces smoke without an external exhaust connection.
  • Intelligent cooking platform includes iDensityControl, iCookingSuite, iProductionManager, and iCareSystem.
  • Compact cavity supports half-size sheet pans, steam pans, and 2/3 GN pans for versatile production.
  • Wi-Fi and Ethernet connectivity support ConnectedCooking, recipe transfer, and HACCP data management.
  • Automatic cleaning and limescale control help reduce manual labor and keep the oven hygienic.
  • Stainless steel construction, IPX5 protection, and ENERGY STAR efficiency suit demanding commercial kitchens.

Overall Dimensions:

25.75"W x 21.9"D x 35.13"H

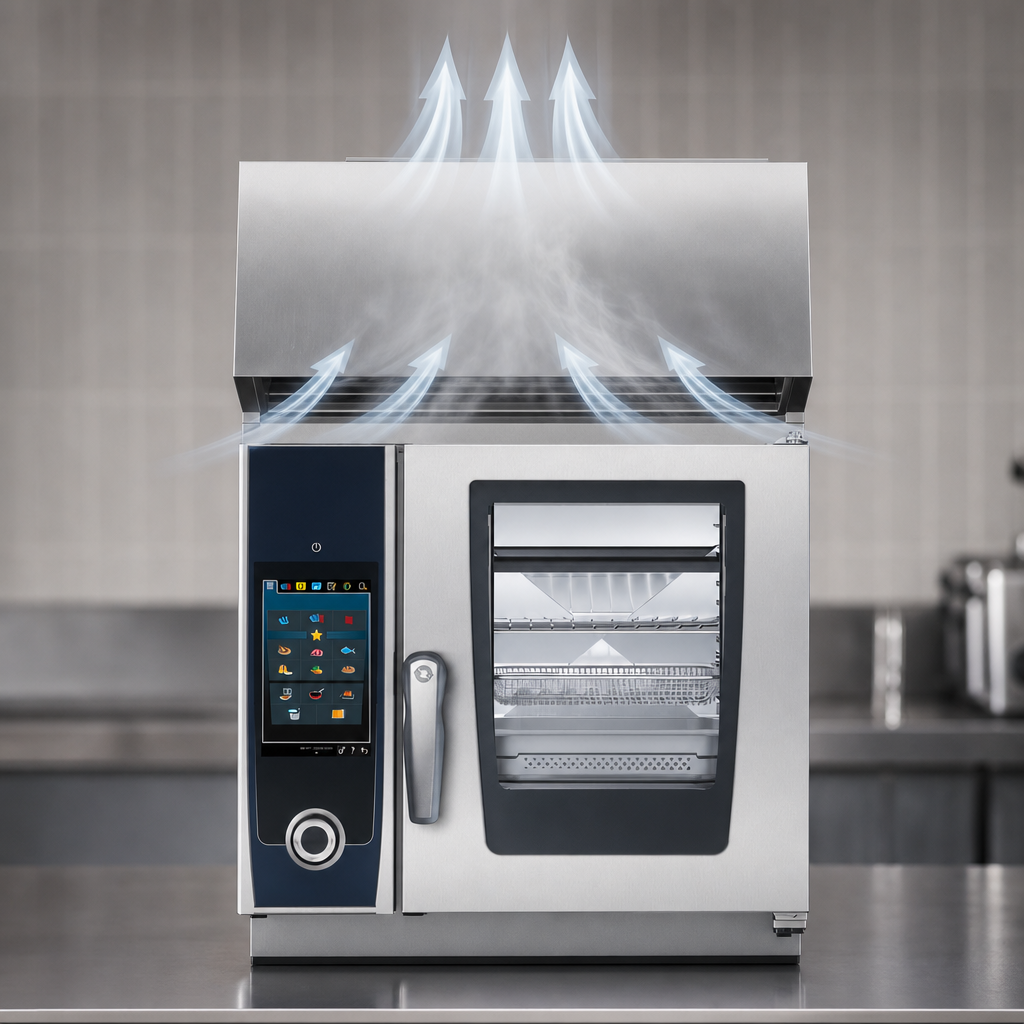

UltraVent Plus Recirculating Hood

Pre-assembled on the XS unit to capture steam and divert it without requiring an external connection; the Plus version also helps reduce smoke.

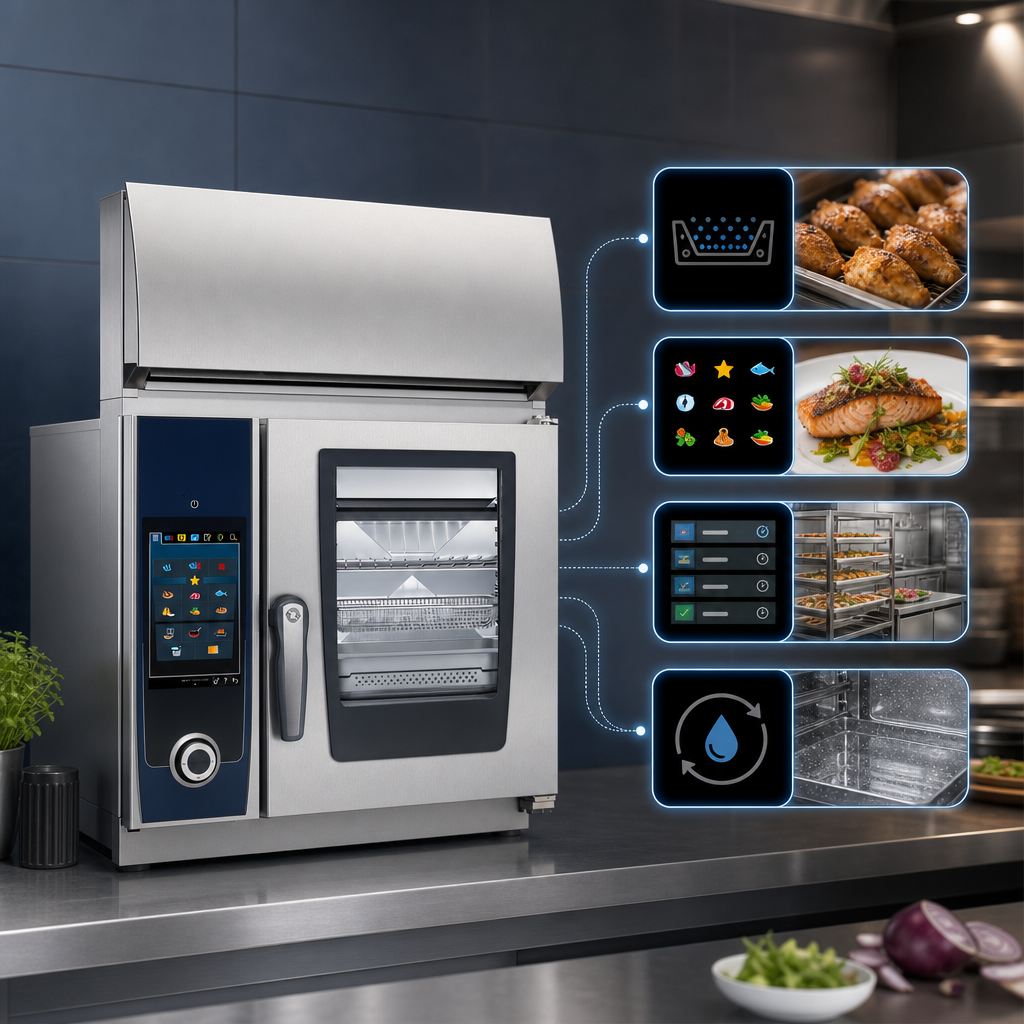

Intelligent Cooking Assistants

Includes iDensityControl, iCookingSuite, iProductionManager, and iCareSystem to automate cooking, production planning, and cleaning.

6-Point Core Temperature Probe

Measures food temperature accurately and automatically corrects for incorrect probe positioning.

Programmable Touchscreen Controls

Features a 9-inch TFT color display with capacitive touchscreen and support for up to 1,200 cooking programs.

Wi-Fi and Ethernet Connectivity

Built-in network connectivity supports ConnectedCooking for recipe management, monitoring, and HACCP data transfer.

Automatic Cleaning System

Offers multiple cleaning programs, quick interim cleaning, and automatic limescale management for easier maintenance.

Stainless Steel Cabinet Construction

Inside and outside stainless steel construction with a seamless hygienic cooking cabinet for easier cleaning and durability.

Retractable Hand Shower

Integrated hand shower with automatic retrieval and a selectable jet function for quick cabinet cleaning.

Energy-Efficient, Washdown-Ready Design

ENERGY STAR qualified with IPX5 protection and LED cabinet lighting for efficient, reliable daily operation.

Type Combi Oven
Installation Type Countertop
Capacity 4 Half-Size Sheet Pans / 3 Steam Pans / 3 2/3 GN Pans
Controls Programmable Digital Touchscreen
Temperature Range 85°F to 572°F
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 208/240 Volts
Amps 15.9 Amps at 208 Volts / 15.5 Amps at 240 Volts
Watts 5.7 kW
Hertz 60 Hz
Phase 3-Phase
Plug Type NEMA 15-30P
Cord Length 6 Feet
Water Connection Required
Drain Connection Required
Water Inlet Size 3/4 Inch
Drain Connection Size 1 1/2 Inches OD
Selling Unit Each
Units Per Case 1
Shipping Width 26 Inches
Shipping Depth 22 Inches
Shipping Height 36 Inches
Shipping Weight 419 lb.

Frequently Asked Questions

No. The UltraVent Plus is a recirculating hood that captures steam and diverts it without an external connection.
It uses 208/240V, 3-phase, 60 Hz power and draws 15.9 amps at 208V or 15.5 amps at 240V.
It includes both Ethernet and Wi-Fi connectivity for ConnectedCooking, recipe transfer, and HACCP data management.
The iCareSystem offers automatic cleaning and limescale removal, plus quick interim cleaning for shorter downtime.
The unit includes a 2-year warranty on parts, labor, and travel, plus a 5-year steam generator warranty.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
