Key specifications
- Phase
- 3-Phase
- Type
- Installation Kit
- Compatible Equipment
- Electric iCombi/SCC/CMP XS
- Voltage
- 208/240 Volts
- Hertz
- 60 Hz
- Drain Material
- Copper
Spec sheet
RATIONAL 87.01.402US Electric XS Installation Kit with Copper Drain, 208/240V, 60Hz, 3-Phase
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
RATIONAL 87.01.402US is an installation kit for electric XS cooking systems configured for 208/240 volts, 60 Hz, 3-phase service.

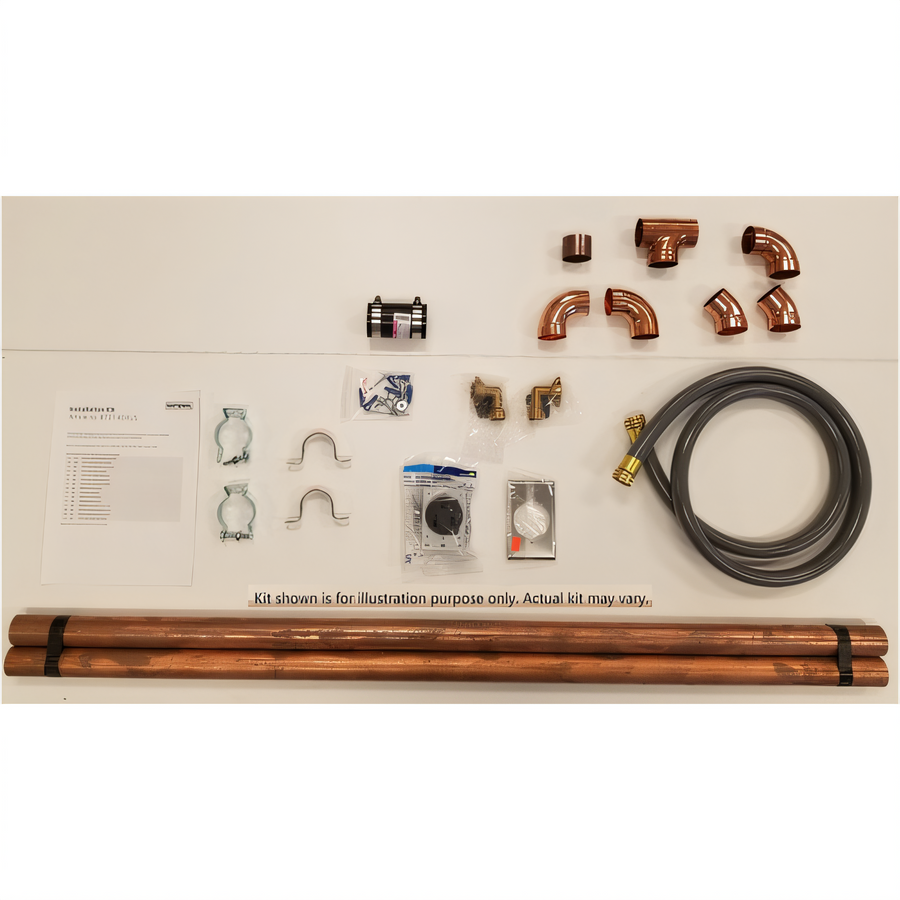

The kit includes copper drain components and connection materials for installation. Not all parts are used in every installation.
- 1 × 3/4 in × 72 in NSF food and beverage hose with GHT
- 8 ft of 1-1/2 in drainage DWV copper
- 1 × 1-1/2 in DWV sanitary tee, 3 × 1-1/2 in DWV 90-degree elbows, 2 × 1-1/2 in 90-degree street elbows, 2 × 1-1/2 in 45-degree street elbows, and 1 × 1-1/2 in DWV copper coupling
- 2 × 90-degree fresh-water elbows and 2 × 1-1/4 in EMT minnies
- 1 × 15-30 straight-blade receptacle and 1 × cover plate for 15-30/15-50
- 1 × 1-1/4 in × 1-1/4 in flexible coupling
- 10 × 8 × 1-1/2 in sheet-metal screws, 6 × 10-12 × 1 in plastic screw anchors, and EMT straps
Product Weight:
14.0 lbElectric XS Compatibility
For electric RATIONAL XS cooking systems, including iCombi, SCC, and CMP XS applications.
Copper Drain
Includes copper drainage components, including 8 ft of 1-1/2 in drainage DWV copper.
Connection Materials
Includes a food and beverage hose, drainage fittings, fresh-water elbows, EMT hardware, receptacle, cover plate, flexible coupling, fasteners, anchors, and straps.
Installation Planning
Not all parts included in the kit are used in every installation.
