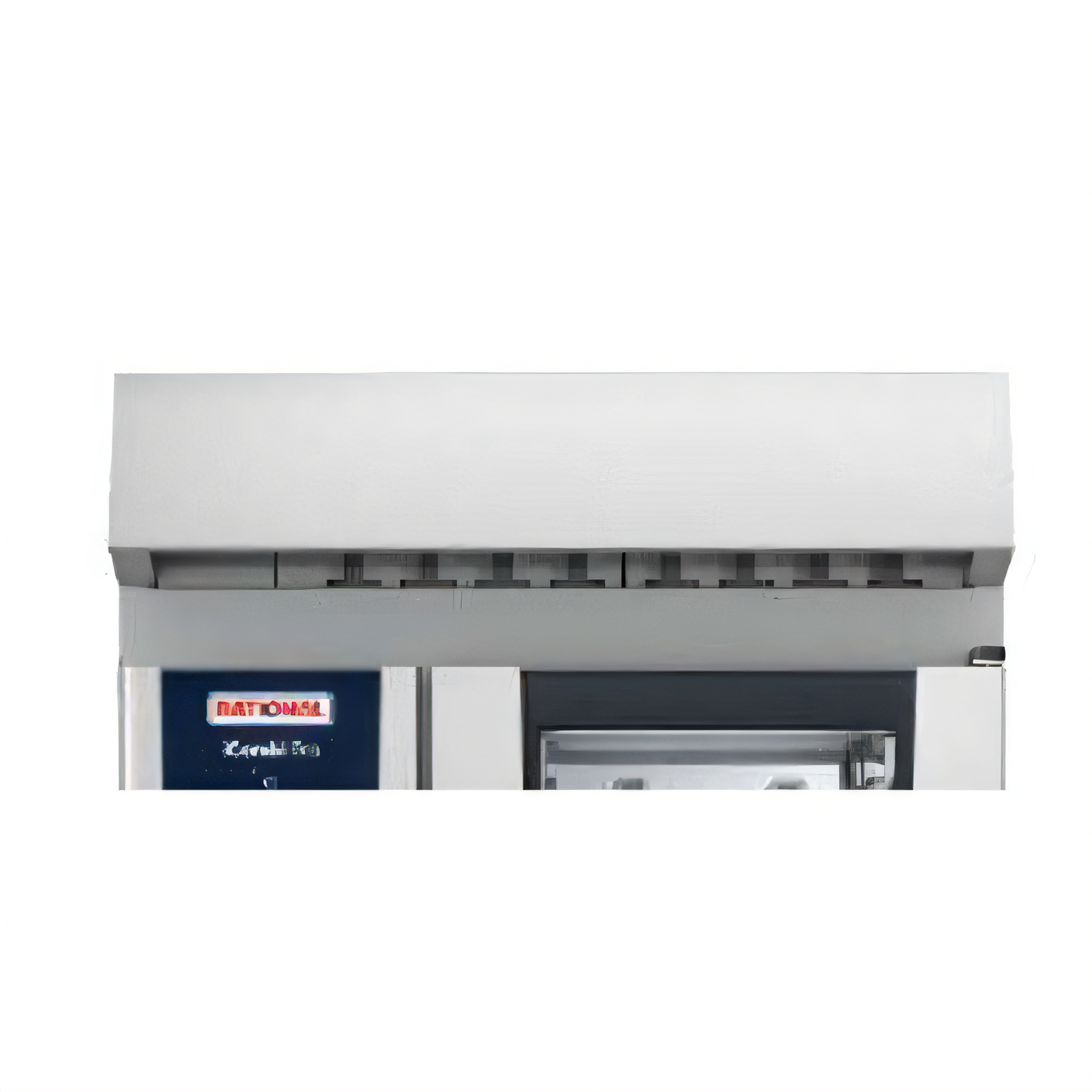

RATIONAL UltraVent Type II Ventless Recirculating Condensation Hood for 6- and 10-Full Size Electric Units

SKU: 60.76.180
$6,528.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Kitchen Hoods Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals RATIONAL Restaurant Equipment Ventless Hood Systems

RATIONAL UltraVent Type II Ventless Recirculating Condensation Hood for 6- and 10-Full Size Electric Units

Single or Combi-Duo, 120 V / 1-Phase

Capture steam without exterior ducting and keep installation simple with a ventless hood that condenses and recirculates vapor.

  • Ventless condensation technology captures steam and helps eliminate the need for an outside exhaust connection.
  • Designed for 6- and 10-full size electric cooking systems, including Combi-Duo applications.
  • Intelligent control automatically adjusts capture power to the amount of steam produced.
  • Automatically boosts extraction when the cooking cabinet door is opened.
  • Stainless steel grease baffles are easy to clean and dishwasher safe.
  • Includes an adapter kit for optional Combi-Duo installation.
  • Service notifications can be displayed on iCombi Pro and iCombi Classic units.

Overall Dimensions:

42.38"W x 46.13"D x 12.38"H

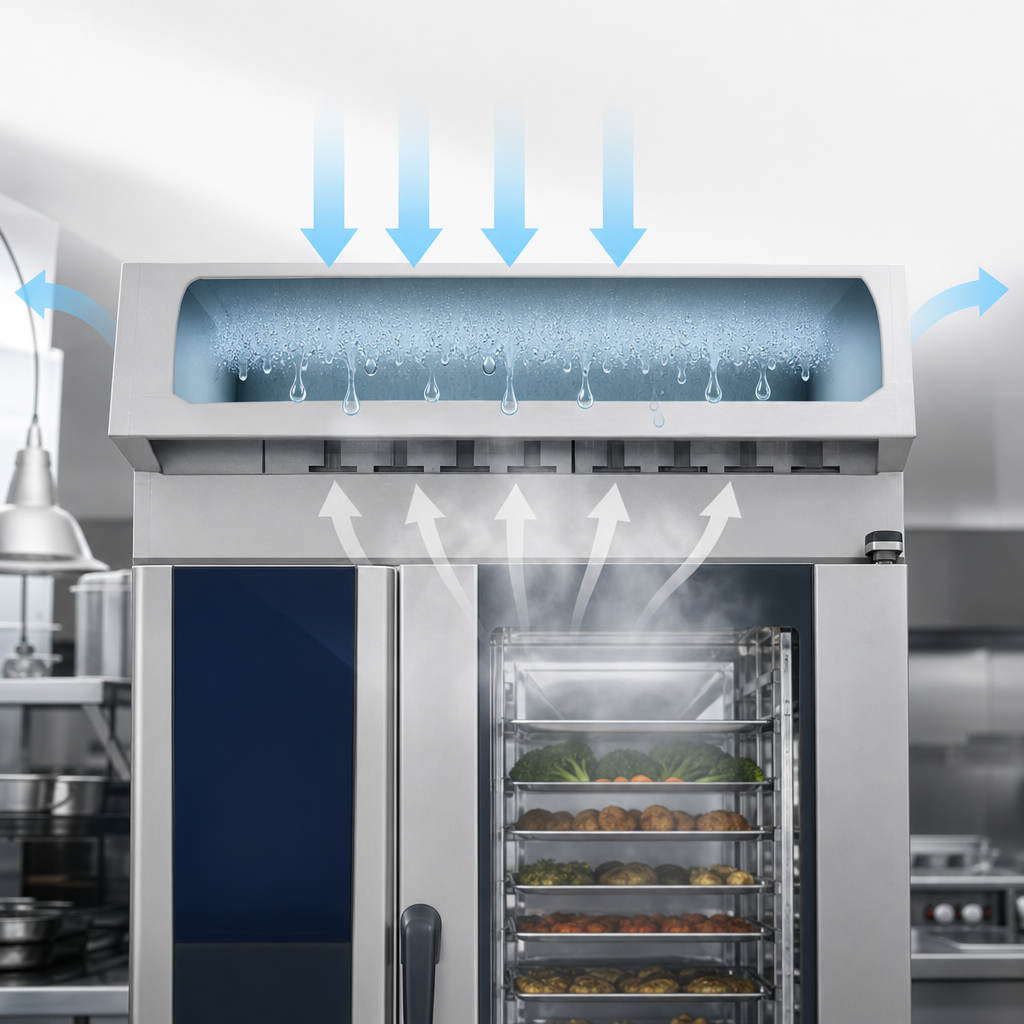

Ventless Recirculating Condensation Technology

Captures steam in the hood and condenses it, so no connection to the outside or extension of an existing exhaust system is necessary.

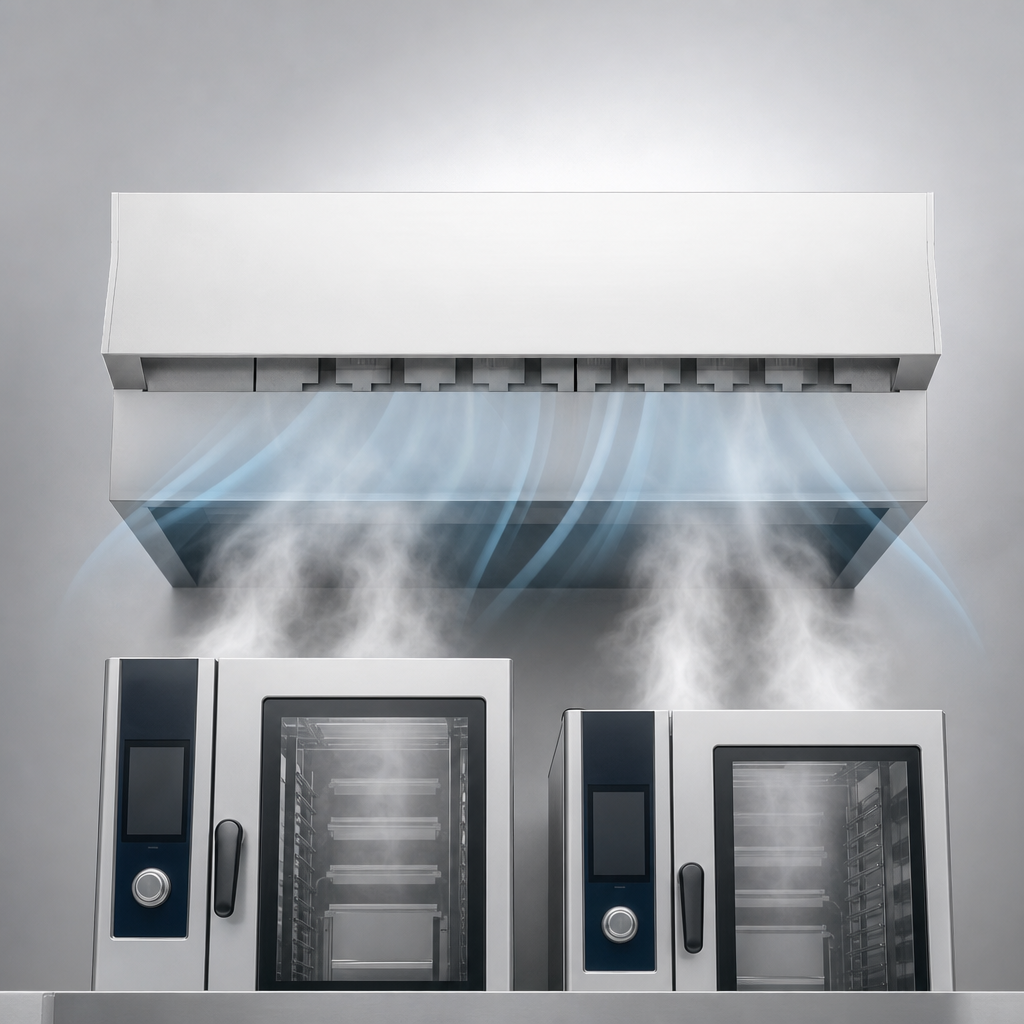

Automatic Steam Response

Intelligent control continuously adjusts capture power based on the amount of steam produced.

Door-Open Boost

The hood automatically increases extraction when the cooking cabinet door is opened.

No Additional Discharge Line Needed

Wastewater is discharged by the device, so no extra discharge line is required.

Easy-Clean Grease Baffles

Stainless steel grease baffles are easy to remove and are dishwasher safe.

Combi-Duo Compatibility

Connects to both cooking systems in a Combi-Duo setup and includes an adapter kit for optional Combi-Duo installation.

Service Notification Display

Can issue service notifications on the display of compatible iCombi Pro and iCombi Classic units.

Electrical-Only Use

Only permitted for installation on electrical units and not to be used with VarioSmoker.

Type Ventless Recirculating Condensation Hood
Style Type II
Capacity 6- and 10-Full Size
Voltage 120 Volts
Hertz 50/60 Hz
Phase 1-Phase
Watts 170 Watts
Amps 1.6 Amps
Plug Type NEMA 5-15P
Cord Length 6 Feet
Material Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 43 Inches
Shipping Depth 47 Inches
Shipping Height 13 Inches
Shipping Weight 190 lb.

Warranty & Protection

2-year manufacturer warranty.

Documents

PDF Cutsheet PDF Download PDF Unit and accessories catalog PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. It uses air recirculation and condensation technology, so no outside connection or extension of an existing exhaust system is necessary.
It uses a 120 V, 1-phase connection with 50/60 Hz power, a 170-watt load, and a NEMA 5-15P plug.
Yes. It connects to both cooking systems in a Combi-Duo and includes an adapter kit for optional Combi-Duo installation.
Yes. The hood is only permitted for installation on electrical units.
The hood captures steam, condenses it, and discharges the wastewater from the device, so no additional discharge line is needed.
Yes. It can issue service notifications on the displays of compatible iCombi Pro and iCombi Classic units.
