Randell

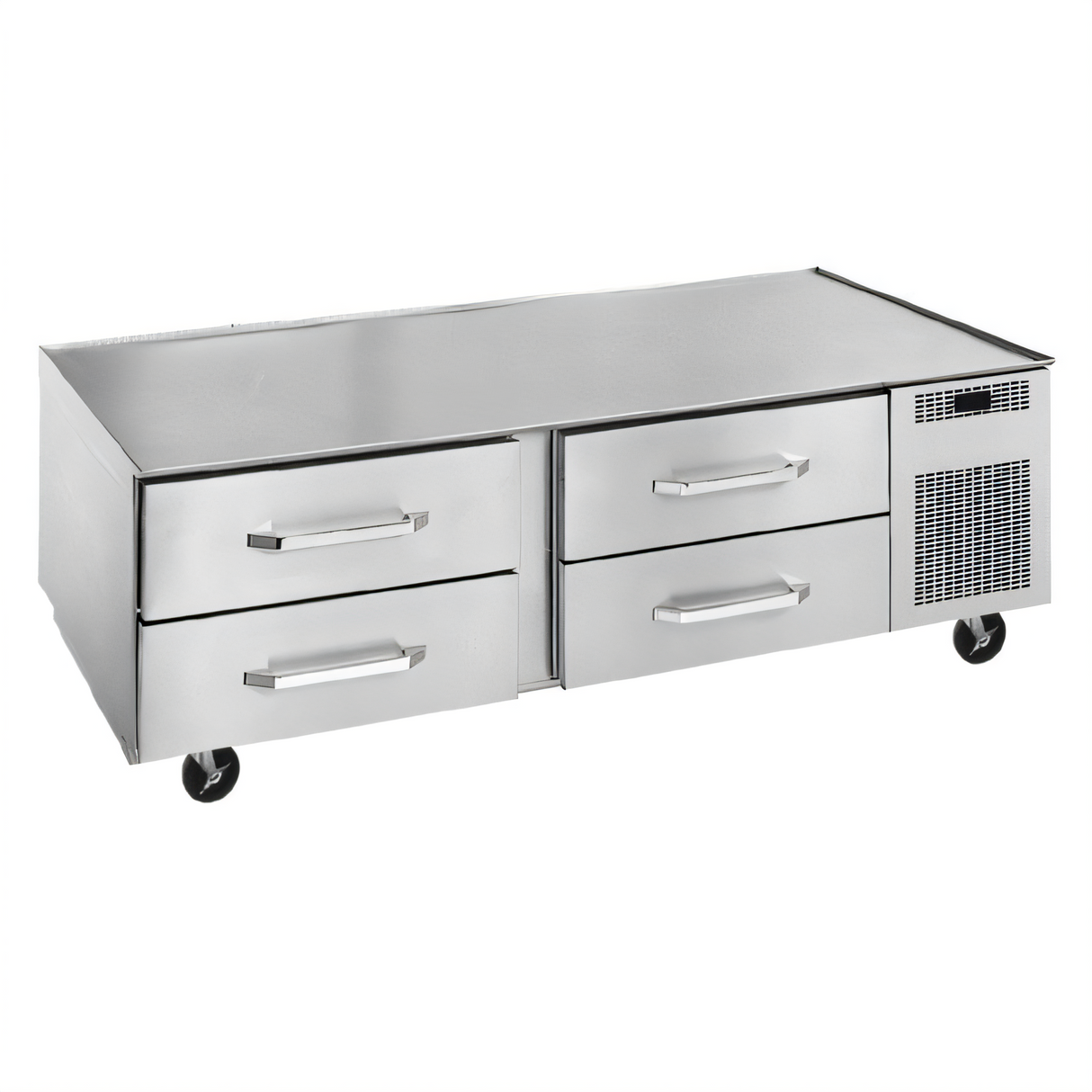

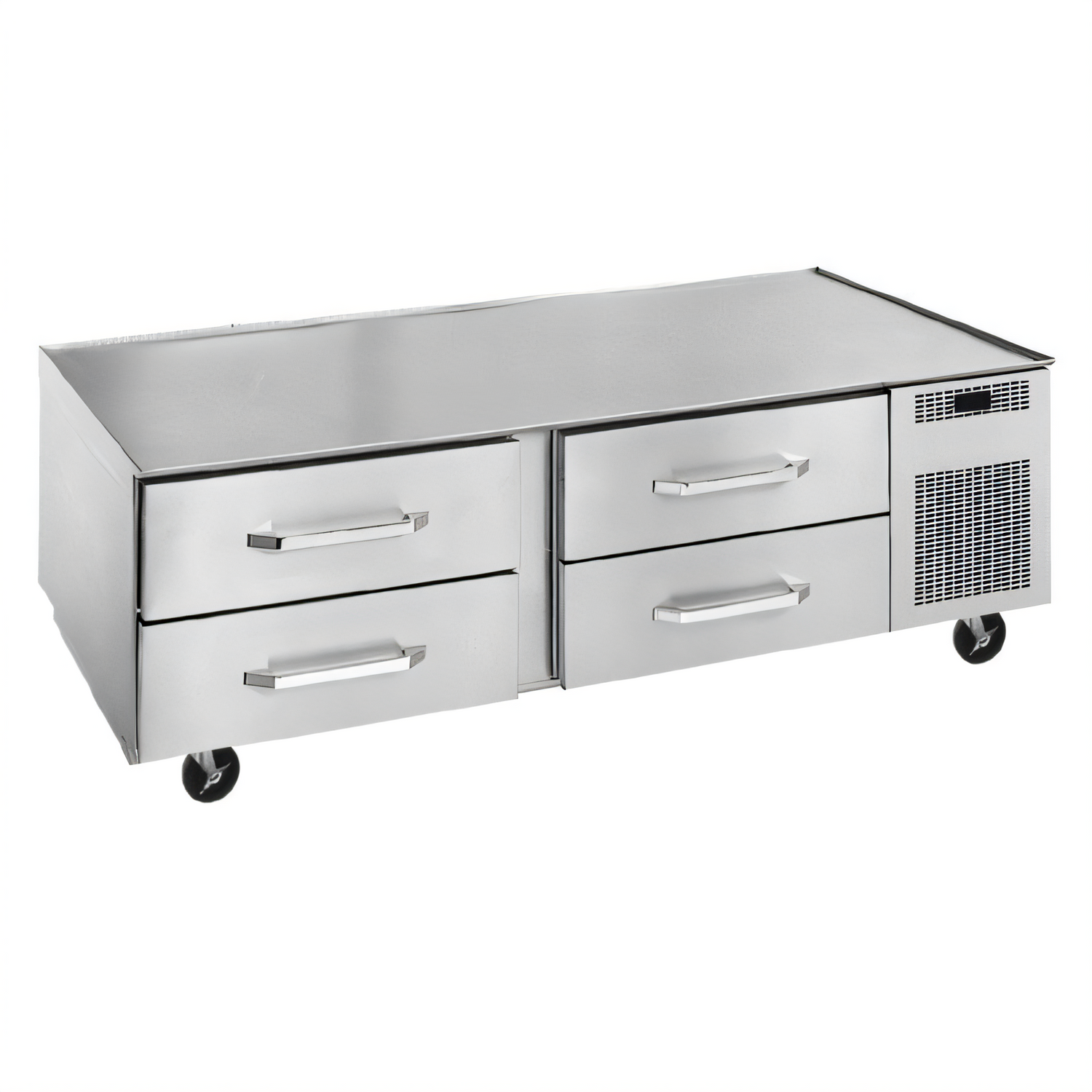

Randell RES1R2-72C4 72" Two-Section Refrigerated Chef Base Equipment Stand with 4 Drawers

SKU: RES1R2-72C4
$16,125.39
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Equipment Stands Kitchen Equipment Tables New Arrivals Randell Restaurant Equipment Undercounter & Worktop Refrigeration

Randell RES1R2-72C4 72" Two-Section Refrigerated Chef Base Equipment Stand with 4 Drawers

Full-Size, Right-Mounted Compressor, Self-Contained Refrigeration

Designed for demanding commercial kitchens, this Randell refrigerated chef base provides robust support for cooking equipment and efficient cold storage, all in a compact, durable unit.

  • Heavy-duty stainless steel marine top reinforced with a 12 gauge sub-top, supporting up to 225 lbs per linear foot.
  • Features four 27" refrigerated drawers, each accommodating two 12" x 20" x 6" deep pans.
  • Energy-efficient R290 Hydrocarbon refrigeration system with precise electronic controls for consistent temperatures.
  • Durable stainless steel exterior and easy-to-clean anodized aluminum interior with coved corners.
  • Equipped with 4" heavy-duty casters for mobility, mounted on full-length rails for flexible positioning.
  • Quick-release drawer system and press-fit magnetic gaskets allow for tool-free removal and easy cleaning.

Overall Dimensions:

72.0"W x 32.5"D x 27.5"H

Product Weight:

545.0 lb

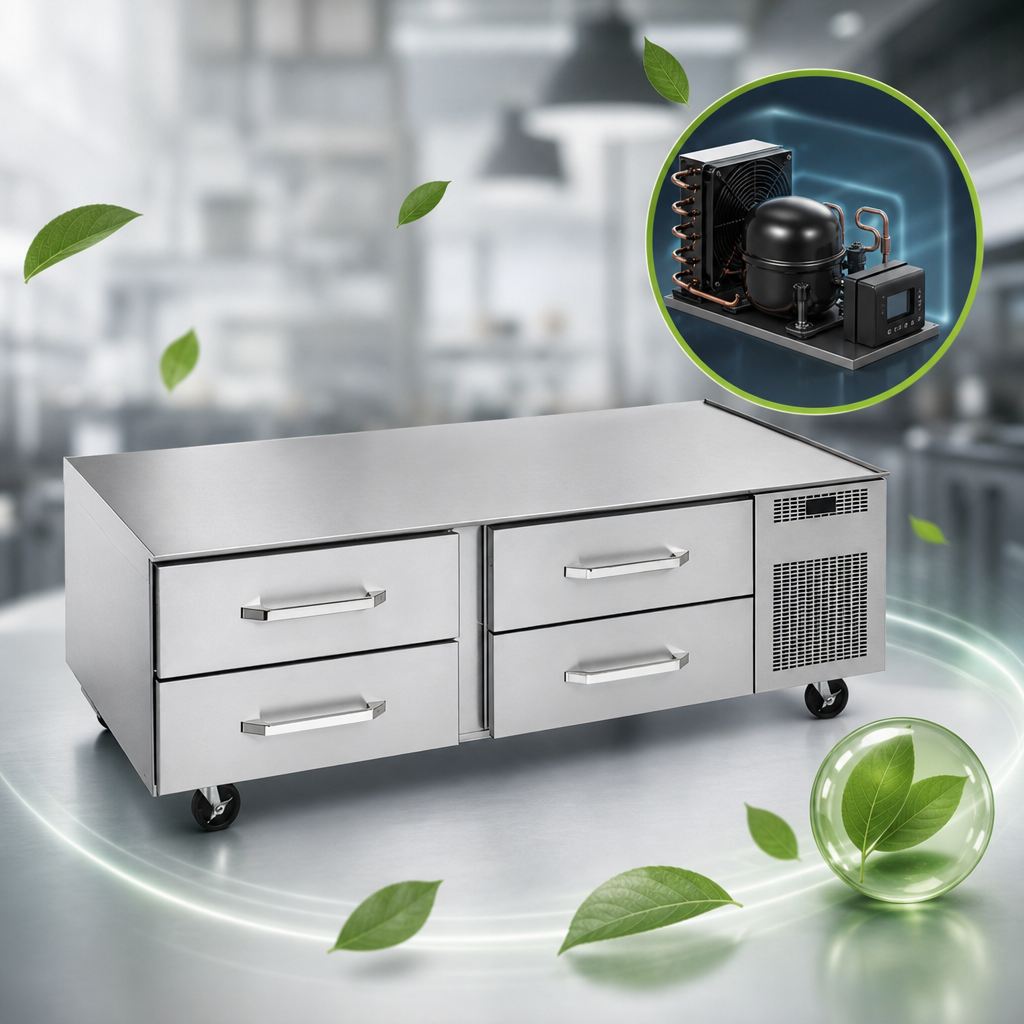

R-290 Hydrocarbon Refrigeration System

Utilizes a state-of-the-art, energy-efficient R290 compressor system with zero ozone depletion potential (ODP) and low global warming potential (GWP), managed by an externally mounted electronic controller for precise temperature control.

Heavy-Duty Marine Edge Top

One-piece stainless steel top with a 1/2" high marine edge, reinforced with a 12 gauge steel sub-top, providing exceptional durability and support for heavy cooking equipment up to 225 lbs/ft.

Advanced Drawer System

Features fully welded, unitized drawer cartridge assemblies with 14 gauge full extension tracks on 1-5/8" heavy-duty stainless steel bearings. The quick-release design allows for tool-free removal and easy cleaning.

Tool-Free Gasket and Drawer Removal

Drawers are designed with press-fit magnetic gaskets that are removable without tools, making maintenance and cleaning hassle-free. The entire drawer assembly can also be removed without tools.

Durable Construction

Cabinet exterior is constructed entirely of stainless steel (top, front, louver panel, and body ends), while the interior is anodized aluminum with coved corners for easy cleanup and NSF compliance.

Mobile Design with Relocatable Casters

Factory-mounted 4" heavy-duty casters (front locking) are installed on full-length rails, allowing them to be repositioned in the field to avoid floor obstacles.

Front Breathing Compressor

100% front breathing compressor housing allows the unit to be sealed to a wall or curb-mounted without requiring special clearances.

Type Refrigerated Chef Base / Equipment Stand
Style Two-Section
Installation Type Floor Model (With Casters)
Pan Capacity 8 Full-Size (6 Inches Deep) Pans
Compartments 2
Drawers 4 (27 Inches Wide)
Material Stainless Steel
Exterior Finish Stainless Steel
Interior Finish Anodized Aluminum
Top Finish Stainless Steel Marine Top with 12 Gauge Subtop
Controls Electronic
Refrigerant Type R290 Hydrocarbon
Refrigeration Type Self-Contained, Side-Mounted
Compressor HP 1/4 HP
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 6 Amps
Plug Type NEMA 5-15P
Cord Length 9 Feet
Shipping Width 72 Inches
Shipping Depth 33 Inches
Shipping Height 28 Inches
Shipping Weight 545 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year warranty on the entire drawer system.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The RES1R2-72C4 model features four 27" drawers, each designed to hold two 12" x 20" x 6" deep pans, for a total capacity of eight 12" x 20" x 6" deep pans.
This unit utilizes an energy-efficient R290 Hydrocarbon refrigerant system, which has zero ozone depletion potential and low global warming potential, making it an environmentally responsible choice.
Yes, the chef base is equipped with a robust stainless steel marine edge top, reinforced with a 12 gauge steel sub-top, providing heavy-duty support for cooking equipment up to 225 lbs per linear foot.
Absolutely. The fully welded drawer cartridge assemblies feature a quick-release system, allowing the drawers and cartridges to be easily removed without tools for thorough cleaning. The press-fit magnetic gaskets are also removable without tools for easy maintenance.
Yes, the heavy-duty casters are factory-mounted to full-length rails, which allows them to be relocated in the field to avoid any floor obstacles or to optimize placement in your kitchen.
