Randell  |  SKU: RES1R1-53C4

Randell RES1R1-53C4 Undercounter & Worktop Refrigeration

$12,226.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

53" Refrigerated Equipment Stand, 2-Drawer, Right-Side Compressor

Randell Model RES1R1-53C4 | Made in USA

Built to anchor busy cooklines, this Randell self-contained chef base keeps critical ingredients ice-cold while supporting up to 225 lbs per linear foot of countertop equipment. The reinforced marine-edge top, quick-release drawers and eco-friendly R290 refrigeration deliver the performance kitchens demand—shift after shift.

  • Precise holding temps – externally visible electronic control for simple, accurate adjustment.
  • Two full-extension 32" drawers – each stores (2) 12 × 20 × 6" steam pans (pans not included).
  • Heavy-duty marine-edge worktop – one-piece stainless steel with 12-gauge sub-top easily supports grills, griddles or ranges.
  • Patented drawer cartridge – fully welded 14-gauge tracks, 1-5/8" stainless bearings & tool-free removal; backed by a 3-year warranty.

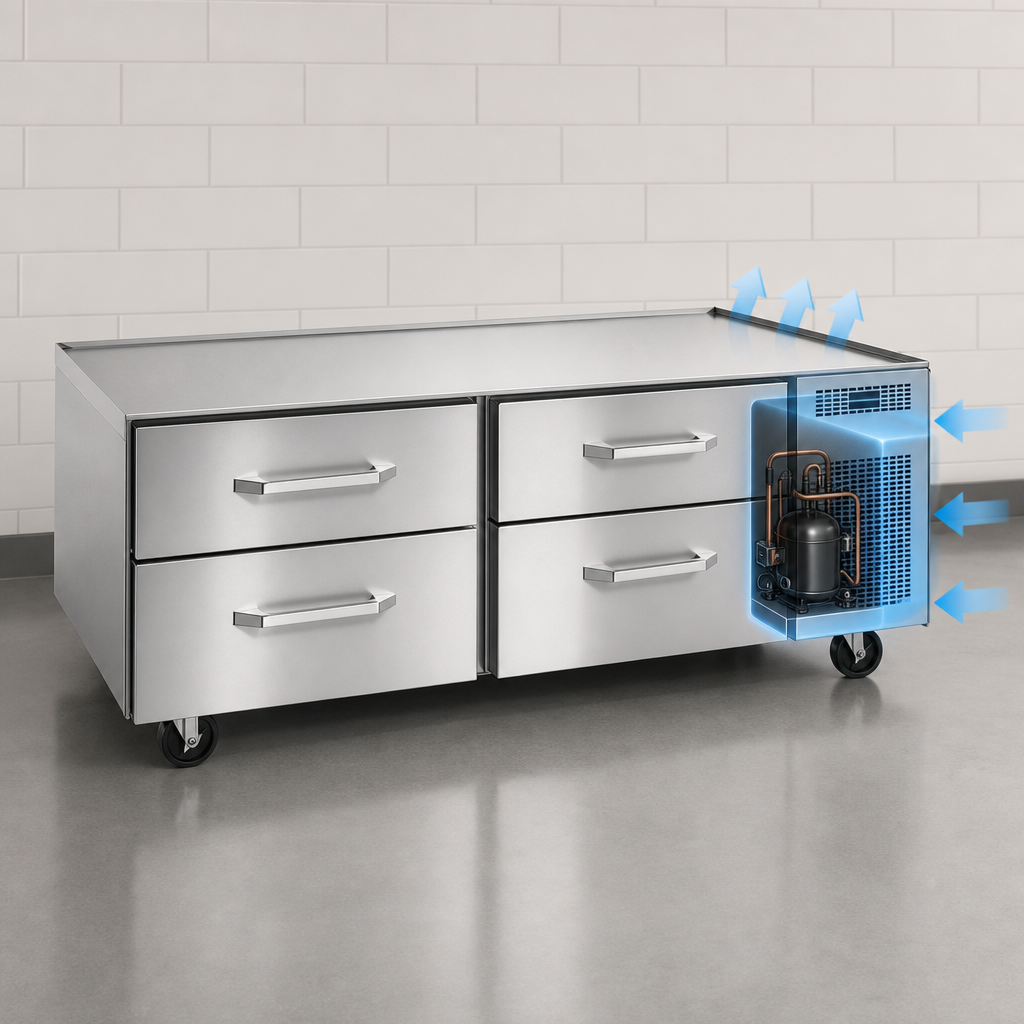

  • Front-breathing ¼ HP system – R290 hydrocarbon refrigerant (0 ODP, 3 GWP) lets you install flush against walls.
  • Sanitary interior – coved-corner anodized aluminum cleans fast and meets NSF standards.
  • Mobility built-in – 4" heavy-duty casters with locking fronts are factory-mounted to full-length rails.
  • Certified & compliant – UL, cUL, NSF listed; cord-and-plug 115 V connection (NEMA 5-15P).

Technical Specifications

Exterior Dimensions (W × D × H) 53" × 32.5" × 27.5"
Configuration One section, 2 refrigerated drawers
Pan Capacity (4) 12" × 20" × 6" pans total – 2 per drawer (pans not included)
Refrigerant R290 Hydrocarbon
Compressor ¼ HP, right-side mounted, front breathing
Temperature Control Electronic, externally visible
Electrical 115 V / 60 Hz / 1-phase, 6 A, NEMA 5-15P cord & plug
Construction – Top One-piece stainless steel with ½" high marine edge & 12-gauge sub-top
Interior / Exterior Coved anodized aluminum interior / all-stainless exterior & fronts
Mobility (4) 4" casters, front pair locking
Certifications UL, cULus, NSF
Country of Origin USA
Warranty 1-year parts & labor on entire unit
3-year parts & labor on complete drawer cartridge assembly

Ideal Applications

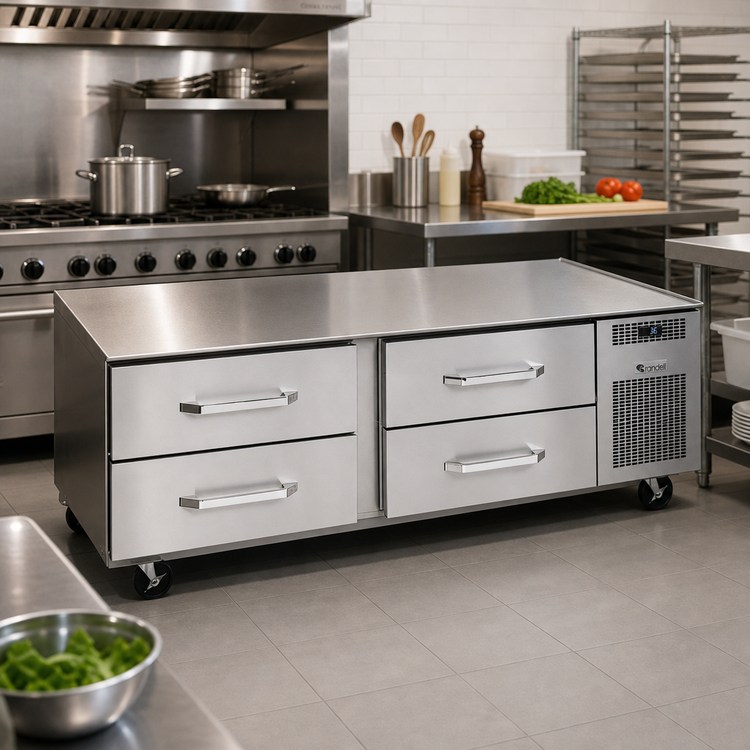

  • Griddle or charbroiler base on the cookline
  • Sandwich, taco or sauté stations needing quick protein access
  • Food trucks and ghost kitchens where floor space is premium

Steam pans, food pans and countertop cooking equipment shown in marketing images are sold separately.

Features & Specs

Manufacturer

Randell

Certifications

NSF, UL, Made in USA

Height

27.5in

Width

53.0in

Depth

32.5in

Shipping Weight

425.0lbs

Compressor HP

1/4 HP

Width

49" - 60" wide

Refrigeration

self-contained, side mounted

Top Finish

stainless steel top

Exterior Finish

all stainless steel exterior

Drawer Qty

2 drawers

Specifications

Refrigerated Counter/Equipment Stand, one-section, compressor right-side-mounted self-contained refrigeration, 53"W, (2) 32" drawers, accommodates (2) 12" x 20" x 6" deep pans/drawer (NOT included), electronic controls, reinforced stainless steel marine top with 12 gauge sub top, aluminum interior, stainless steel exterior, 4" heavy duty casters (front locking), R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 6 amps, NEMA 5-15P, cUL, UL, NSF, MADE IN USA
