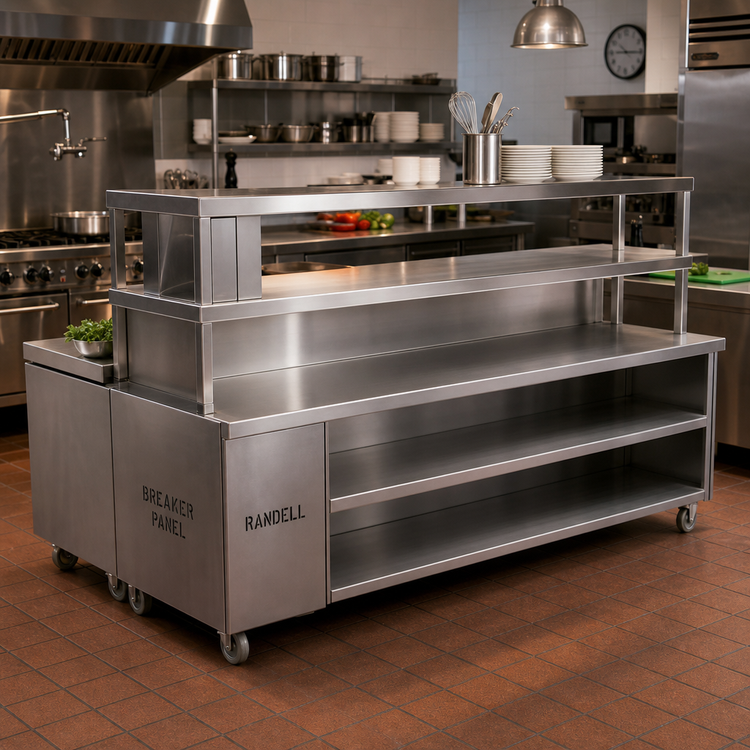

Randell RCRBP-82.5 82.5-Inch Modular Chef Service Counter Right Section with Breaker Panel

Right Section, 82.5" Width, Stainless Steel, Integrated Breaker Panel

Build a highly functional and organized kitchen workspace with the Randell RCRBP-82.5 modular chef service counter, featuring integrated electrical and storage.

  • Modular design for flexible kitchen layouts, perfect for creating custom chef tables.
  • Pre-wired with 120V NEMA 5-15R and 208V NEMA 6-30R receptacles for immediate equipment integration.
  • Includes a dedicated 125 Amp breaker panel, pre-wired and numbered for easy field connection.
  • Durable stainless steel construction throughout ensures longevity and hygiene in commercial settings.
  • Features a plate storage cabinet on the server side and a double overshelf for organized access.
  • Movable 6-inch legs with adjustable bullet feet allow for flexible installation and obstacle avoidance.
  • Made in the USA with cUL, UL, and NSF certifications for quality and safety.

Overall Dimensions:

82.5"W x 48.0"D x 35.0"H

Product Weight:

1074.0 lb

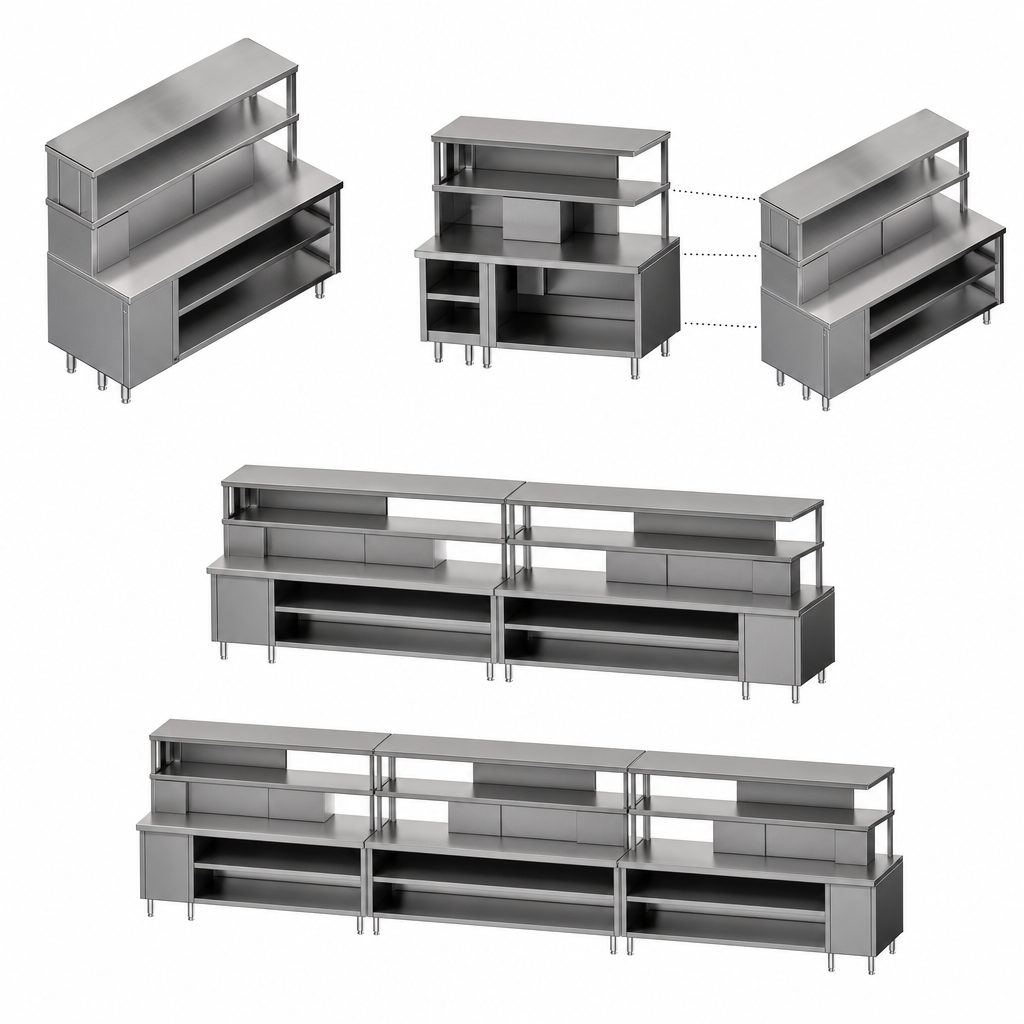

Modular Design

Allows for combination with other Randell Chef Service Counter modules (Left, Center, Right) to create custom lengths, supporting both 2-section (8' to 12') or 3-section (12' to 24') configurations.

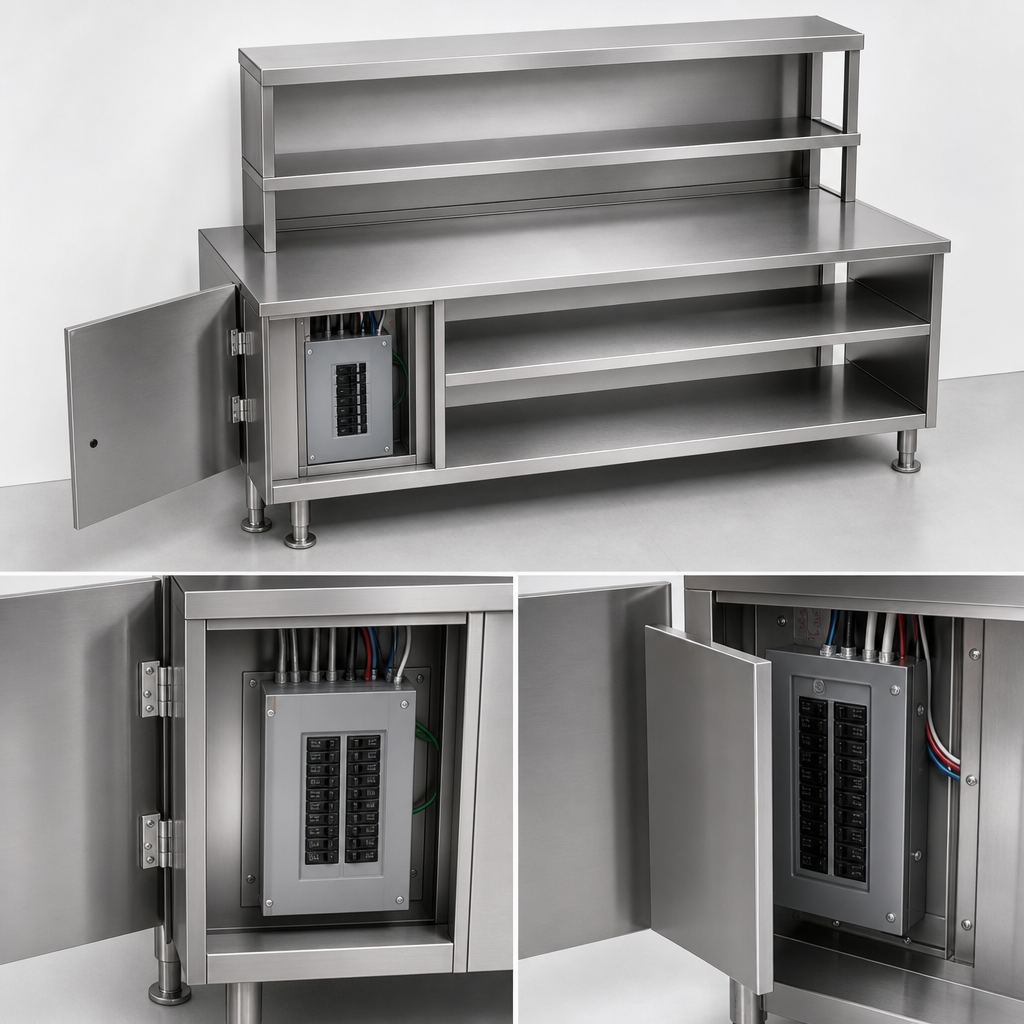

Integrated Electrical Breaker Panel

Features a pre-wired 125 Amp, 120/208V, 3-Phase breaker panel (Q0324L125G) within the cabinet, with additional capacity for up to 18 circuits in a 2-section design or 15 in a 3-section design to be added in the field.

Pre-wired Receptacles

Each section includes (1) 120V, 15 Amp NEMA 5-15R and (1) 208V, 30 Amp NEMA 6-30R receptacle, wired directly to the breaker panel for robust and convenient power distribution to kitchen equipment.

Durable Stainless Steel Construction

The unit top is made of 16 gauge stainless steel with a 1.5" turn-down, reinforced with full-length channel bracing. Body ends are stainless steel, polished on the inside, and shelves are 22 gauge stainless steel for superior durability and easy cleaning.

Plate Storage Cabinet

A dedicated plate storage cabinet is included on the server side, providing convenient and organized access during service.

Double Overshelf

A double overshelf provides additional storage and workspace, enhancing efficiency and organization in the chef's area.

Wing Walls

Left and right wing walls are included on the chef side to complete the counter assembly and define the workspace.

Wiring Chase

An integrated wiring chase extends from the base to the overshelving, allowing for clean and organized routing of additional electrical wiring (wiring not provided).

Movable Adjustable Legs

Equipped with 6-inch high stainless steel legs that have adjustable bullet feet and can be moved left-to-right to avoid floor obstacles, facilitating easier installation and leveling.

Type Modular Chef Service Counter
Style Right Section with Breaker Panel
Installation Type Floor Model (With Legs)
Material Stainless Steel
Cabinet Length 82.5 Inches
Interior Length 78.5 Inches
Plate Storage 18 Inches
Wing Wall Length 30 Inches
Overshelf Length 18 Inches
Voltage 120/208 Volts
Phase 3-Phase
Breaker Panel Capacity 125 Amps
120V Receptacle Type NEMA 5-15R
208V Receptacle Type NEMA 6-30R
Shipping Width 83 Inches
Shipping Depth 48 Inches
Shipping Height 35 Inches
Shipping Weight 1074 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The RCRBP-82.5 is a modular right-section chef service counter that includes a pre-wired breaker panel, designed to create a functional and electrically integrated workspace for chefs. It can be combined with other modular sections to form larger custom counters.
This unit comes with a pre-wired 125 Amp, 120/208V, 3-Phase breaker panel, and features one 120V NEMA 5-15R receptacle and one 208V NEMA 6-30R receptacle, both pre-wired to the breaker panel.
Yes, it is designed as a modular component and can be bolted together with Left (RCL) and Center (RCC) sections from Randell's Chef Service Counter line to create 2-section or 3-section layouts.
The counter features durable stainless steel construction. The top is 16 gauge stainless steel, and the body ends are also stainless steel, with shelves made from 22 gauge stainless steel.
The unit includes a wiring chase from the base to the overshelving to facilitate organized electrical routing, but the actual wiring for the overshelf is not provided and must be added in the field.
The integrated breaker panel provides additional capacity for adding circuits in the field. If used in a 2-section design, there are 18 additional spaces, and in a 3-section design, there are 15 additional spaces.
