Randell

Randell Modular Chef Service Counter Right Section with Breaker Panel, 72-1/2 Inch Wide

SKU: RCRBP-72.5
$56,360.85
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Countertop Steamer New Arrivals Randell Restaurant Equipment Stainless Steel Prep Tables Steam Cooking Equipment Tables & Workstations

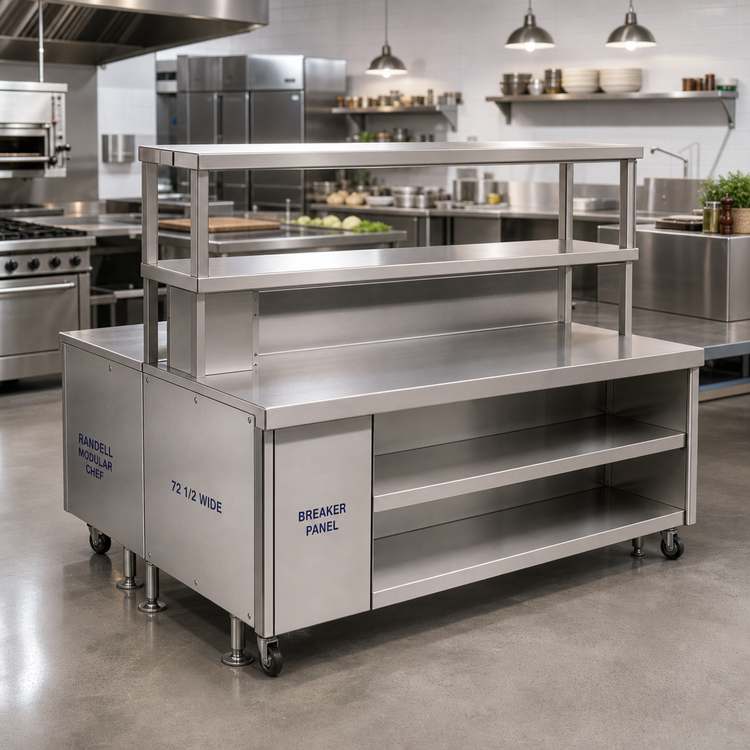

Randell Modular Chef Service Counter Right Section with Breaker Panel, 72-1/2 Inch Wide

Includes plate storage cabinet, double overshelf, and chef-side wing walls.

Built for custom chef-side layouts, this right-section counter combines a pre-wired breaker panel, integrated storage, and durable stainless steel construction in one modular unit.

  • Right-side modular chef service counter section with an integrated breaker panel for streamlined electrical setup.
  • Includes a plate storage cabinet on the server side, plus a double overshelf and chef-side wing walls.
  • Factory pre-wired with 120V and 208V receptacles and direct breaker-panel connections for faster installation.
  • Stainless steel construction with a reinforced top, polished interior surfaces, and corrosion-resistant exterior.
  • 6-inch movable stainless steel legs with adjustable bullet feet help level the unit and work around floor obstacles.
  • Designed for modular field-bolted assembly and compatibility with roll-in equipment.
  • Wiring chase to the overshelving is included; wiring itself is not provided.

Overall Dimensions:

72.5"W x 48.0"D x 35.0"H

Product Weight:

1024.0 lb

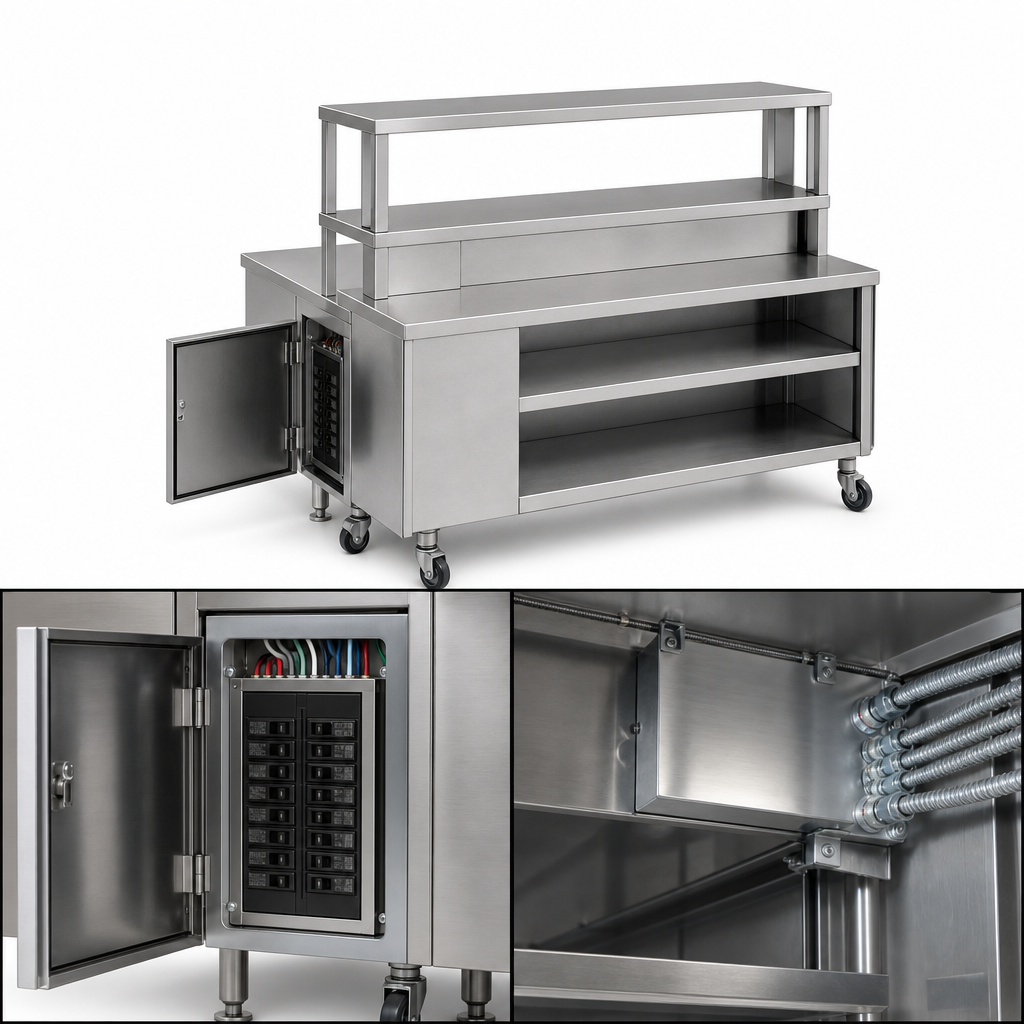

Integrated Breaker Panel

Factory pre-wired and numbered 120/208V, 3-phase, 125-amp panel allows field connection at each section and directs the section outlets to the breaker panel.

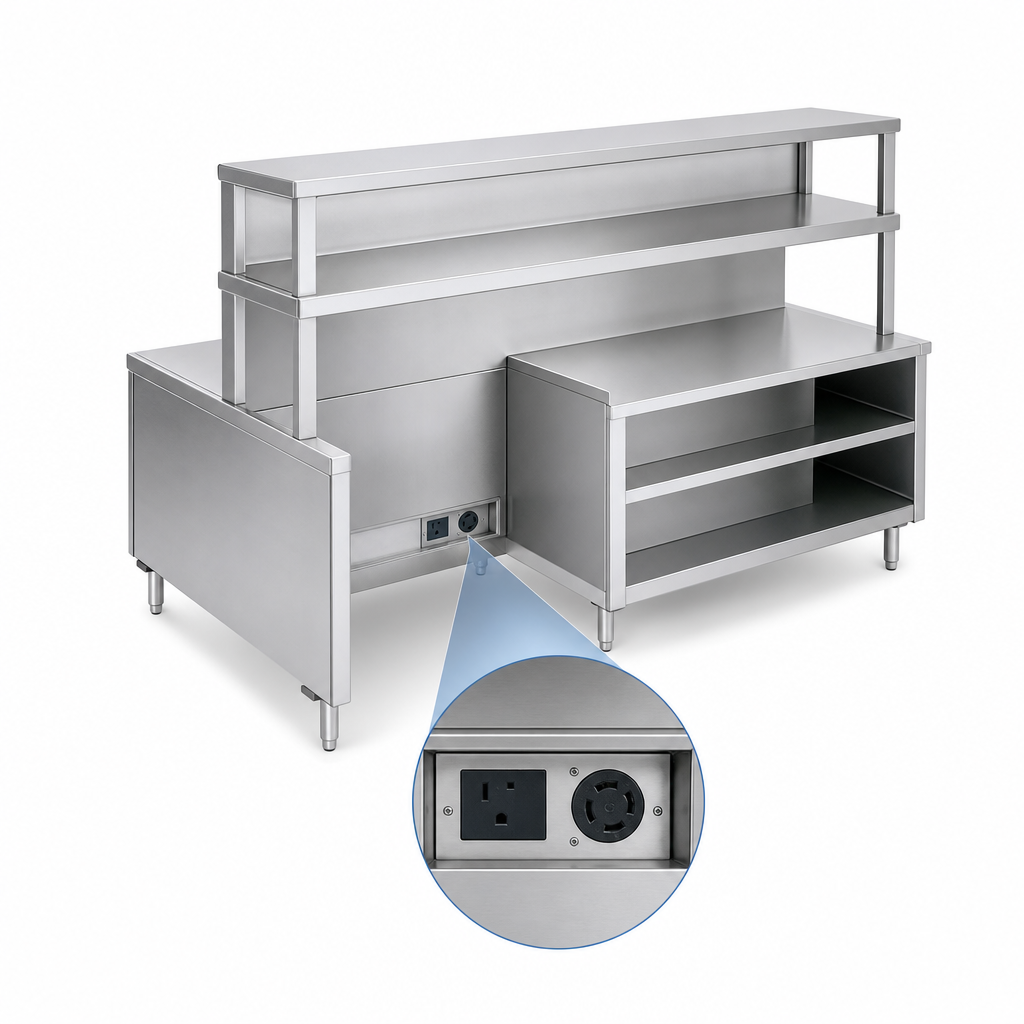

Pre-Wired Receptacles

Each section includes one 120V NEMA 5-15R receptacle and one 208V NEMA 6-30R receptacle pre-wired to a J-box.

Plate Storage Cabinet

Built-in server-side plate storage cabinet adds convenient storage within the counter assembly.

Double Overshelf

Double overshelving provides additional vertical storage and equipment space above the work area.

Chef-Side Wing Walls

Left and right wing walls on the chef side help finish the modular section and support a clean integrated run.

Stainless Steel Construction

Features a 16-gauge stainless steel top with 1.5-inch turn-down, 22-gauge stainless steel shelves, and polished interior surfaces.

Field-Bolted Modular Design

Recessed heavy-duty steel bars at the top allow units to be bolted together and form a hairline seam.

Movable Legs With Adjustable Feet

6-inch stainless steel legs can be moved left to right to avoid floor obstacles and include adjustable bullet feet.

Roll-In Equipment Ready

Designed to accommodate roll-in equipment from Randell or other manufacturers, sold separately.

Type Chef Service Counter
Style Modular Center-Island
Installation Type Floor Model
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 120/208 Volts
Phase 3-Phase
Plug Type NEMA 5-15R / NEMA 6-30R
Breaker Size 125 Amps
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 73 Inches
Shipping Depth 48 Inches
Shipping Height 35 Inches
Shipping Weight 1024 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This version includes a pre-wired breaker panel in the cabinet, and the section outlets are wired directly to that panel.
Each section includes one 120V NEMA 5-15R receptacle and one 208V NEMA 6-30R receptacle, with the breaker panel rated at 120/208V, 3-phase, 125 amps.
A wiring chase from the base to the over shelving is included on both overshelves, but wiring itself is not provided.
The unit includes a plate storage cabinet on the server side.
Yes. The 6-inch stainless steel legs can be moved left to right to avoid floor obstacles and feature adjustable bullet feet.
Yes. The chef service counter is designed to accommodate roll-in equipment from Randell or others, sold separately.
