Randell

Randell RCRBP-52.5 Modular Chef Service Counter Right Section with Breaker Panel

SKU: RCRBP-52.5
$55,060.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Countertop Steamer New Arrivals Randell Restaurant Equipment Stainless Steel Prep Tables Steam Cooking Equipment Tables & Workstations

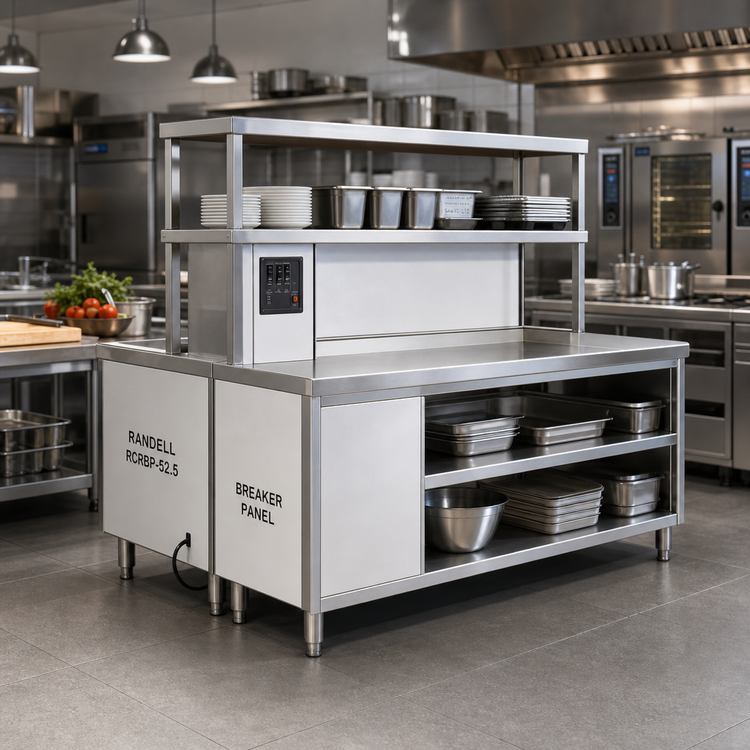

Randell RCRBP-52.5 Modular Chef Service Counter Right Section with Breaker Panel

52-1/2" Wide, Right Section, Chef Side Breaker Panel

Designed for maximum efficiency and flexibility, this modular chef service counter provides a robust and organized workspace with integrated electrical distribution for a high-performance kitchen.

  • Modular design allows for custom kitchen configurations (2 or 3 sections).
  • Features a pre-wired breaker panel (120/208V, 3-phase, 125 Amp) for direct power connections.
  • Equipped with a 120V NEMA 5-15R and a 208V NEMA 6-20R receptacle for versatile equipment power.
  • Durable stainless steel construction ensures longevity and easy cleaning in demanding commercial environments.
  • Includes a plate storage cabinet, double overshelf, and wing walls for comprehensive functionality.
  • Movable 6" stainless steel legs with adjustable bullet feet allow for flexible installation and leveling.

Overall Dimensions:

52.5"W x 48.0"D x 35.0"H

Product Weight:

878.0 lb

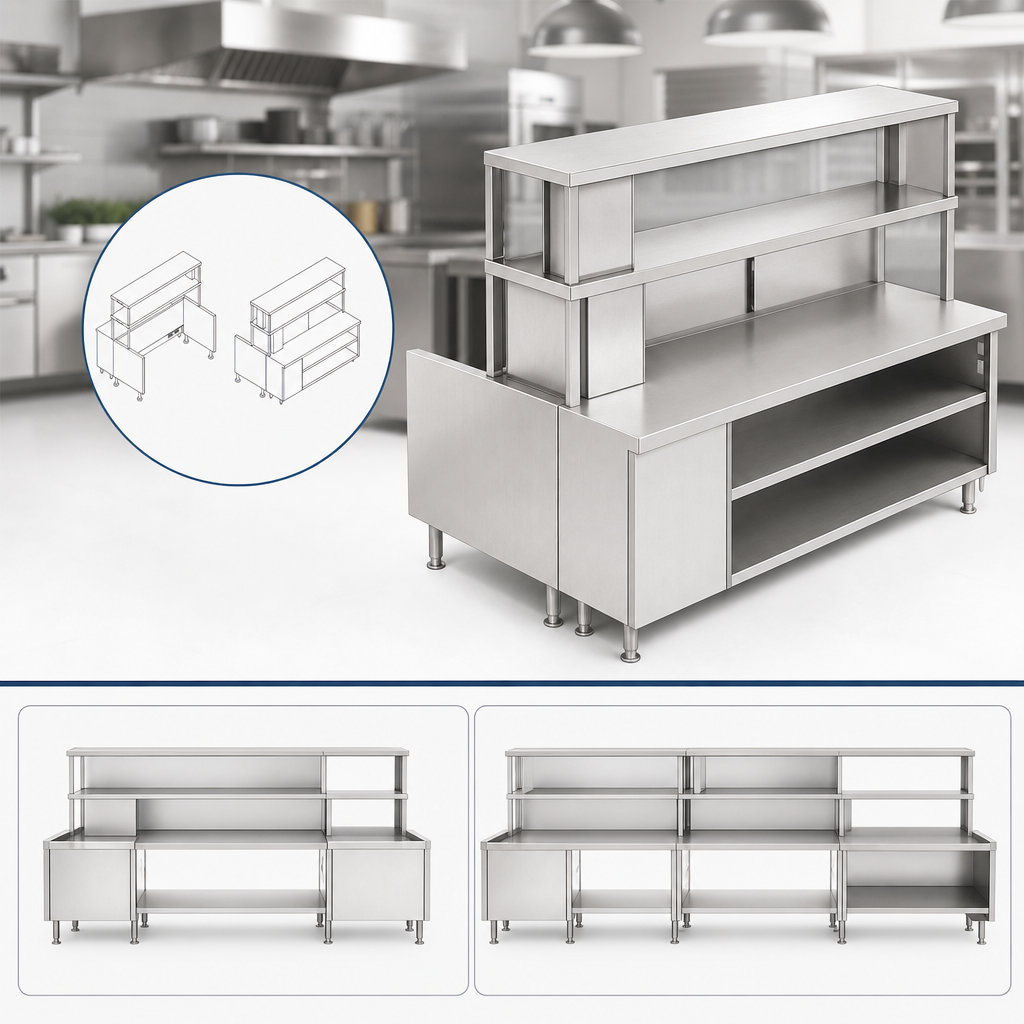

Modular Design

Part of Randell's modular chef service counter system, allowing for flexible configurations (2-section or 3-section) to create a custom chef table.

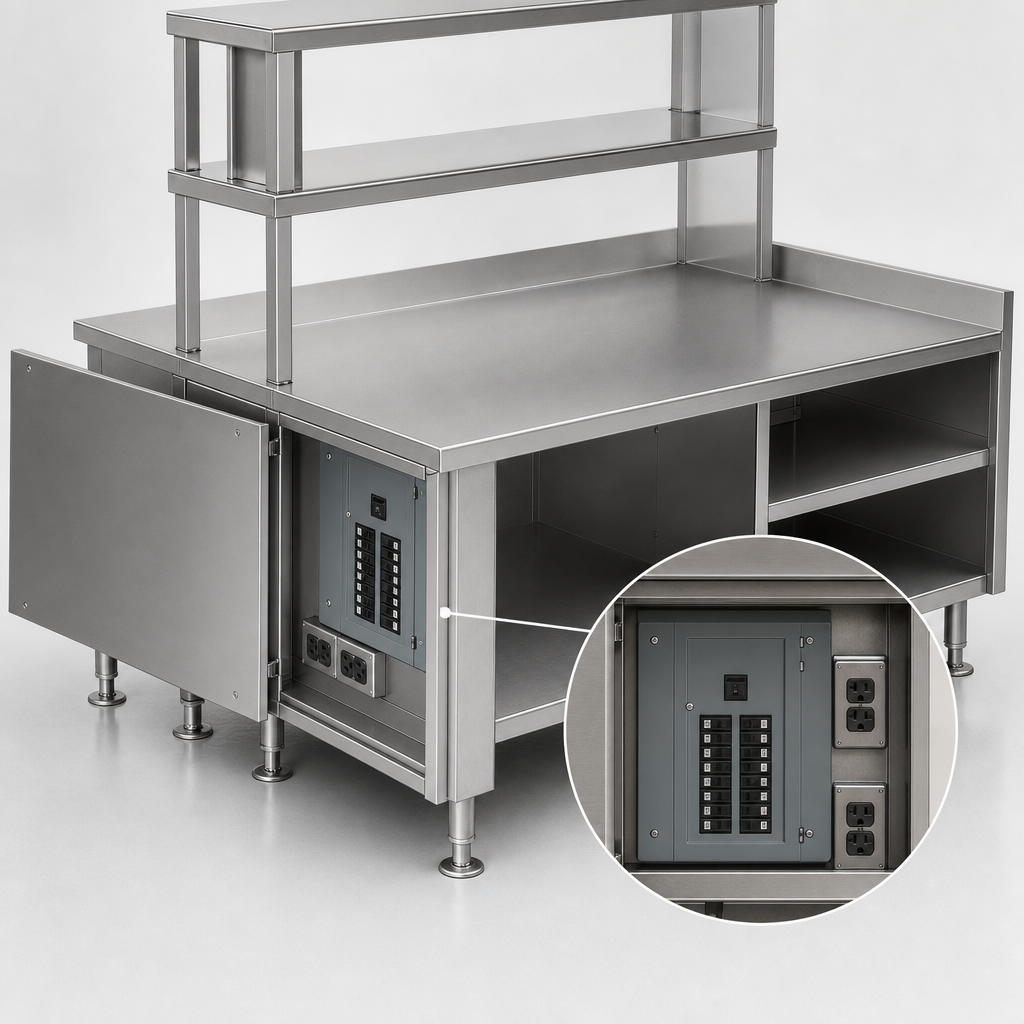

Integrated Breaker Panel

This right-hand section includes a pre-wired 120/208V, 3-phase, 125 AMP breaker panel (Q0324L125G) for convenient power distribution to multiple pieces of equipment. Outlets are wired directly to the panel.

Pre-Wired Electrical Circuits

Comes standard with one pre-wired 120V-15 Amp NEMA 5-15R receptacle and one 208V NEMA 6-20R receptacle, pre-wired to a J-box and directly to the breaker panel.

Wiring Chase

Includes a wiring chase from the base to the over-shelving on both overshelves to facilitate organized cable management (wiring not provided).

Stainless Steel Construction

Constructed with a 16 gauge stainless steel top, stainless steel body ends, and 22 gauge stainless steel shelves for exceptional durability and corrosion resistance. Top is reinforced with full-length channel bracing.

Plate Storage Cabinet

Features an 18-inch plate storage cabinet on the server side, providing convenient access and organization.

Double Overshelf

Equipped with an 18-inch double overshelf for additional storage or display space.

Wing Walls

Includes left and right wing walls on the chef side, which are 30 inches long, enhancing the counter's structure and utility.

Movable Adjustable Legs

Features 6-inch high stainless steel legs with adjustable bullet feet, which can be moved left to right to avoid floor obstacles during installation, ensuring a level and stable setup.

Type Modular Chef Service Counter
Style Right Section with Breaker Panel
Installation Type Floor Model (With Movable Legs)
Material Stainless Steel
Cabinet Length 52.5 Inches
Interior Length 48.5 Inches
Plate Storage Depth 18 Inches
Wing Wall Length 30 Inches
Overshelf Depth 18 Inches
Overall Depth (Front to Back) 48 Inches
Voltage 120V / 208V
Phase 3-Phase (for Breaker Panel)
Amps 15 Amps (for 120V receptacle), 125 Amps (Breaker Panel)
Plug Type NEMA 5-15R, NEMA 6-20R
Breaker Panel Amps 125 Amps
Breaker Panel Voltage 120/208 Volts
Breaker Panel Phase 3-Phase
Shipping Width 53 Inches
Shipping Depth 48 Inches
Shipping Height 35 Inches
Shipping Weight 878 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

Please reference the manufacturer's website for the most updated product information and specifications, including warranty details.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The RCRBP-52.5 includes one pre-wired 120V NEMA 5-15R receptacle and one 208V NEMA 6-20R receptacle, both wired to a J-box and directly to the integrated 120/208V, 3-phase, 125 AMP breaker panel.
Yes, this counter is designed to accommodate various Randell equipment such as raised rail prep tables, flat top prep tables, worktop refrigerators, freezers, and hot food tables. The module opening length for this unit is 48 inches.
The unit features a 16 gauge stainless steel top, stainless steel body ends, and 22 gauge stainless steel shelves for robust commercial use.
Yes, the counter comes with 6-inch high stainless steel legs that have adjustable bullet feet. These legs can also be moved left to right during installation to avoid floor obstacles.
Yes, a wiring chase is included from the base to the over-shelving on both overshelves, allowing for organized routing of power cords (wiring itself is not provided).
