Randell RCP-4C-R050 Steam Tables & Food Wells
Description

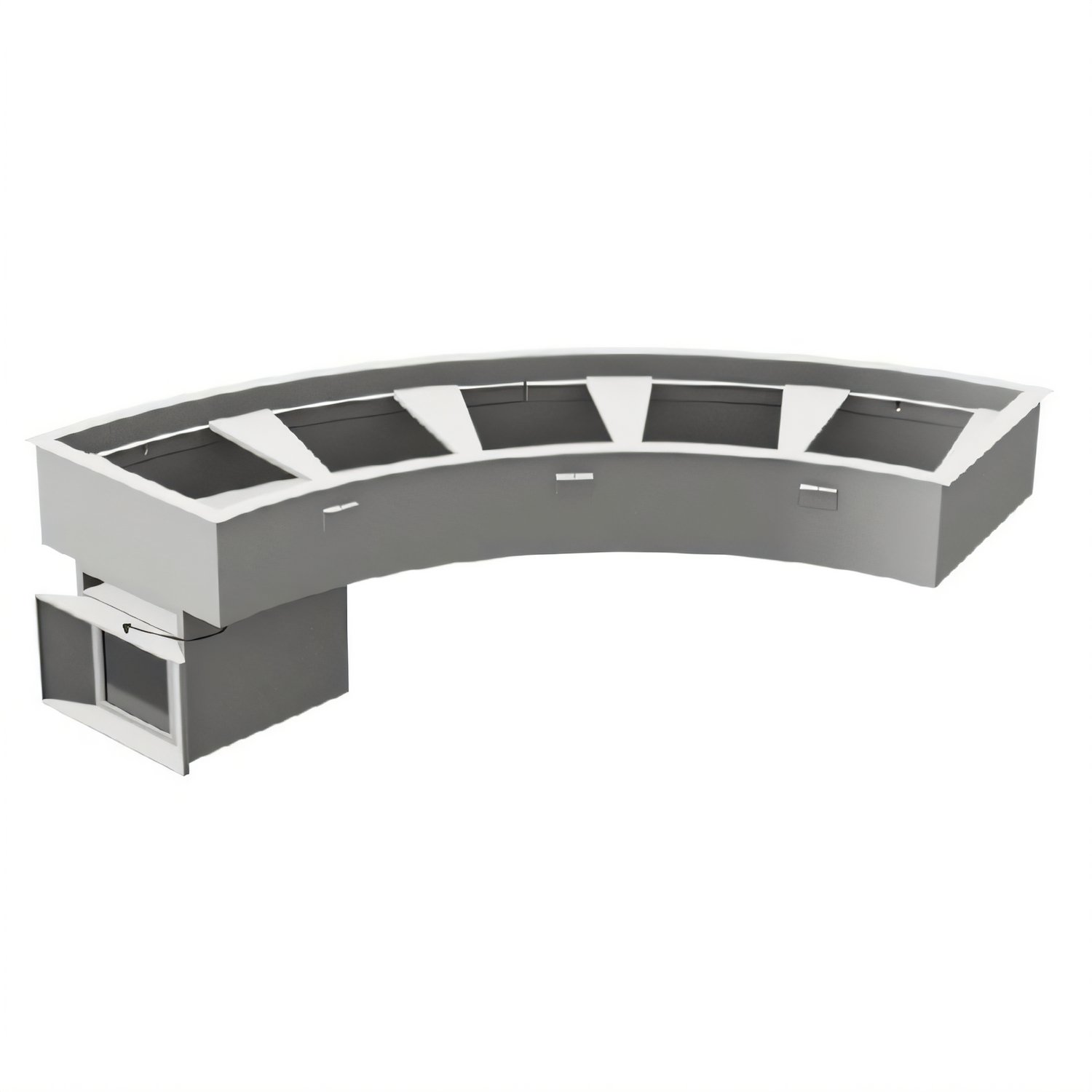

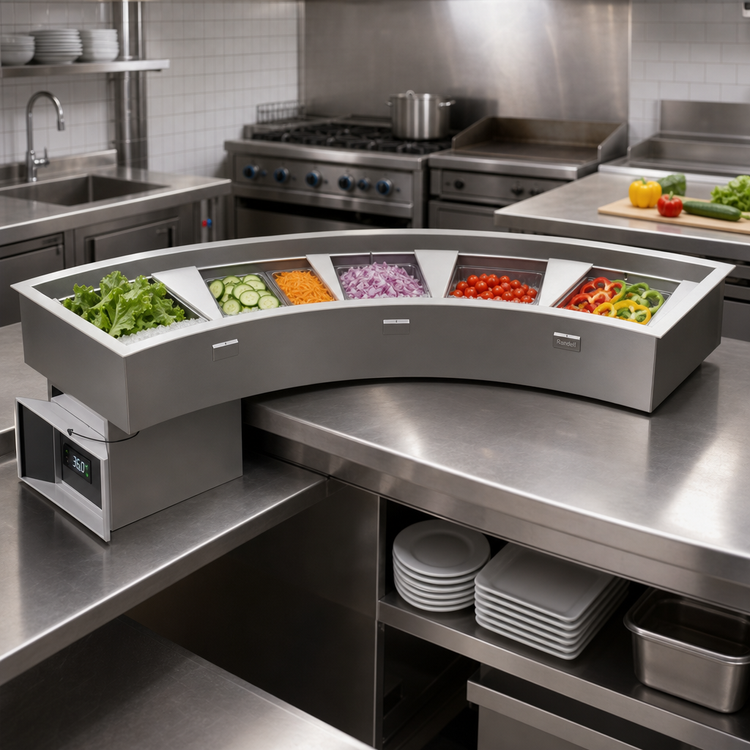

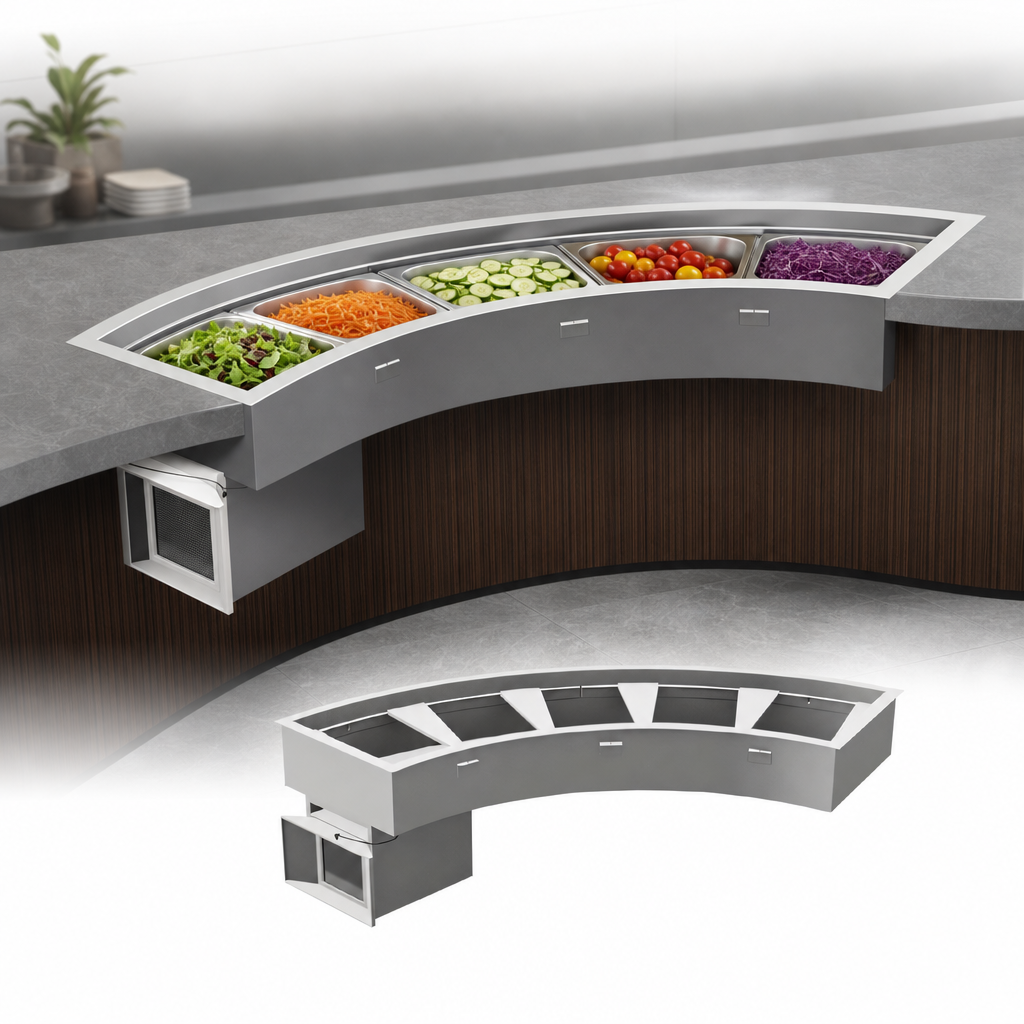

Randell RCP-4C-R050 Drop-In Curved Cold Food Unit
4-pan capacity • 52-1/8" L x 19-1/4" W cutout • Self-contained, refrigeratedDesigned for high-volume buffets, salad bars and grab-and-go lines, the Randell RCP-4C-R050 brings reliable cold holding to curved counters without the hassle of ice. Its wrapped cold-wall construction and eco-friendly R290 hydrocarbon refrigerant deliver consistent 41 °F (or colder) product temperatures while using less energy and meeting the strict 2020 SNAP guidelines.
Why You’ll Love It
- Holds four 12" x 20" full-size pans (adaptor bars included).
- One-piece 18 ga. stainless steel top & coved interior for fast wipe-downs and maximum sanitation.
- Wrapped cold-wall refrigeration with foamed-in-place, CFC-free polyurethane insulation locks in cold and reduces sweat.
- Factory-mounted swivel-base ¼ HP condensing unit—simply drop in, plug in (NEMA 5-15P) and start chilling.
- Electronic temperature control provides precise set-point adjustment and quick diagnostics.
- Bottom-mounted, dual-louver ventilation panel ensures proper air flow; easy-mount hardware speeds installation.
- 1" center drain & gate valve simplify nightly clean-outs.
- Meets NSF Std. 7 for open food storage • cULus listed • Made in the USA.
Technical Specs
| Pan capacity | 4 full-size 12" x 20" hotel pans (pans not included) |
|---|---|
| Cutout size* | 52-1/8" L x 19-1/4" W (flange size minus 1") |
| Interior radius | 50" curve (R050) |
| Refrigerant | R290 Hydrocarbon (0 ODP / 3 GWP, SNAP compliant) |
| Compressor | ¼ HP, self-contained swivel base |
| Electrical | 115 V / 60 Hz / 1-φ, 3.5 A, 9' cord & NEMA 5-15P |
| Exterior finish | Corrosion-resistant steel with stainless steel top surface |
| Shipping weight | Approx. 210 lb (95 kg) |
| Certifications | NSF 7, cULus, UL, Made in USA |
What’s in the Box
- Randell RCP-4C-R050 refrigerated cold pan (fully assembled)
- Factory-installed adaptor bars (pan dividers)
- 1" gate valve & drain fitting
- Field-install louver panel & mounting hardware
- Owner’s/installation manual
Popular Accessories (sold separately)
- Remote on/off wall switch
- Additional adaptor bars for fractional pans
- Clear polycarbonate night covers
*Provide cut-out 1" smaller than overall flange dimensions. Maintain a minimum 88.7 in² of free air intake and exhaust area for proper ventilation.
