Randell RCL-97.5 Modular Chef Service Counter Chef-Side Left Section with Plate Storage Cabinet, Double Overshelf, and Wing Wall

97.5-inch wide stainless steel floor model with pre-wired 120V and 208V receptacles

Built for flexible island layouts, this left-end chef service counter combines stainless steel construction, storage, overshelving, and pre-wired power in one rugged module.

  • Chef-side left section designed to integrate into a 2- or 3-section modular chef service counter layout.
  • Includes a server-side plate storage cabinet, double overshelf, and left wing wall.
  • Factory pre-wired with 120V and 208V receptacles for equipment integration.
  • Constructed with a 16-gauge stainless steel top, stainless steel body, and stainless steel shelves.
  • 6-inch movable stainless steel legs with adjustable bullet feet help with leveling and installation.
  • Designed to accommodate roll-in equipment and field-bolted installation for a tight seam between sections.

Overall Dimensions:

97.5"W x 48.0"D x 35.0"H

Product Weight:

1001.0 lb

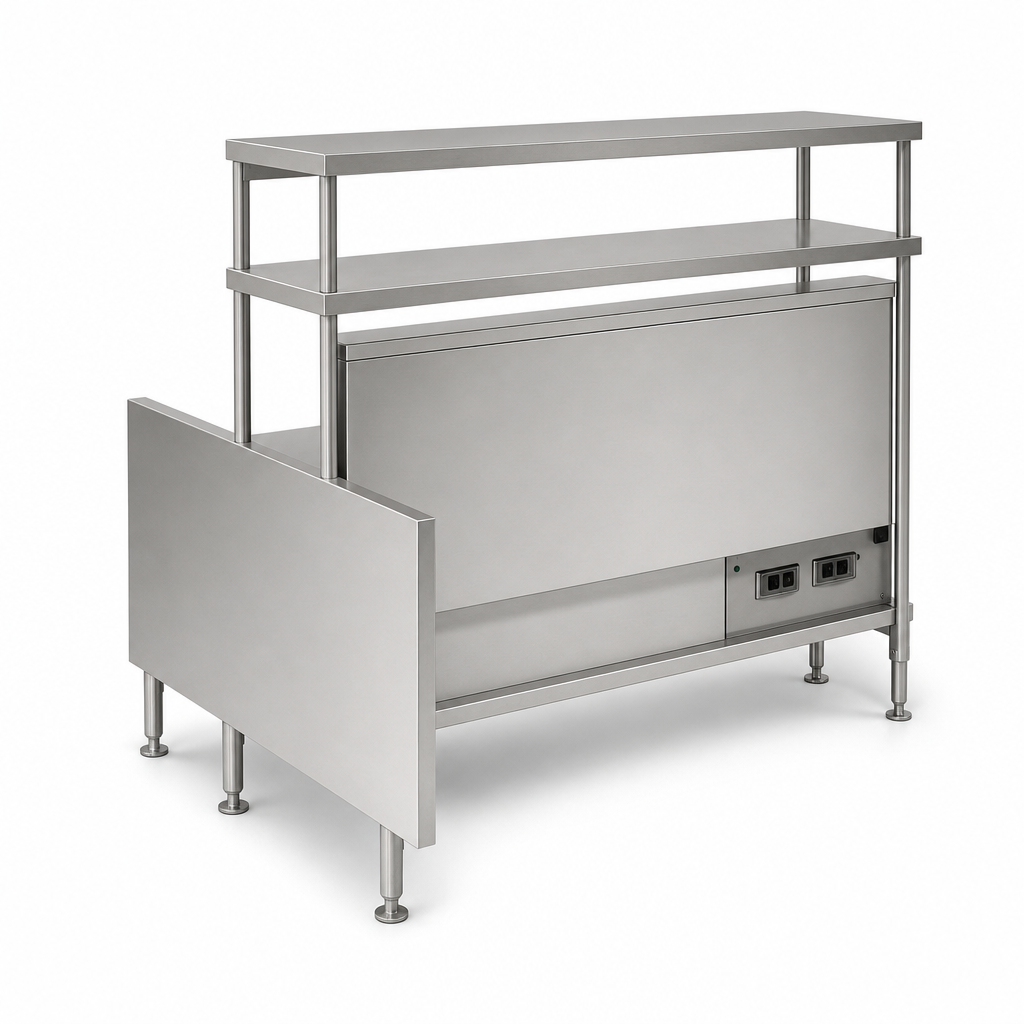

Modular Left-End Section

Represents the left chef-side module of a modular center-island chef service counter assembly.

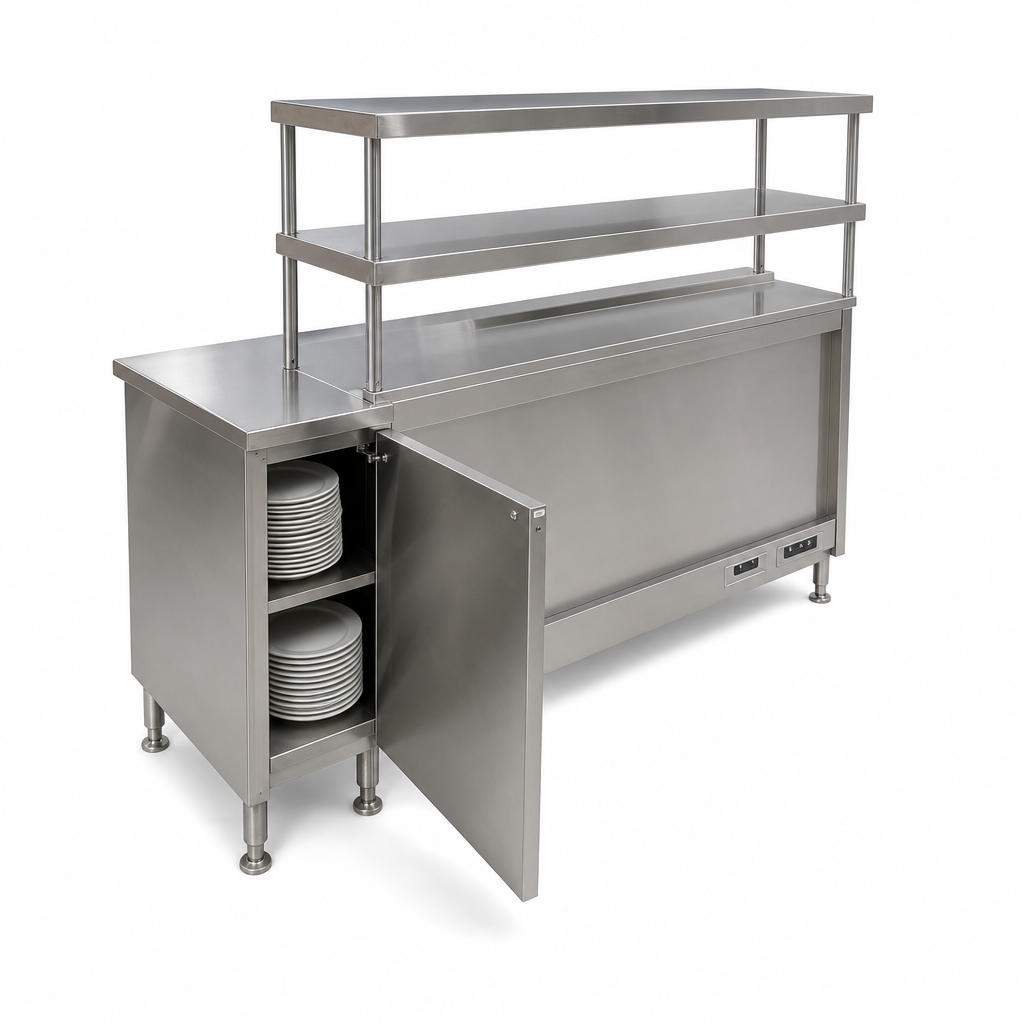

Plate Storage Cabinet

Includes a plate storage cabinet on the server side for convenient staging and storage.

Double Overshelf

A factory double overshelf adds upper storage and service space.

Wing Wall

Includes a left wing wall on the chef side.

Pre-Wired Electrical Receptacles

Includes a 120V NEMA 5-15R receptacle and a 208V NEMA 6-15R receptacle pre-wired to the J-box.

Stainless Steel Construction

Features a 16-gauge stainless steel top with 1.5-inch turn-down, stainless steel body ends, and stainless steel shelves.

Adjustable Bullet Feet

6-inch movable stainless steel legs with adjustable bullet feet help with leveling and placement around floor obstacles.

Built-In Wiring Chase

Wiring chase from the base to the overshelving is included on both over-shelves.

Field-Bolting Ready

Recessed heavy-duty steel bars at the top allow units to be bolted together for a hairline seam.

Roll-In Equipment Compatible

Designed to accommodate roll-in equipment by Randell or other manufacturers sold separately.

Type Chef Service Counter
Style Left Section
Installation Type Floor Model
Material Stainless Steel
Country Of Origin USA
Voltage 120/208 Volts
Amps 15 Amps
Plug Type NEMA 5-15R / NEMA 6-15R
Shipping Width 98 Inches
Shipping Depth 48 Inches
Shipping Height 35 Inches
Shipping Weight 1001 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes a plate storage cabinet, double overshelf, left wing wall, stainless steel construction, and pre-wired 120V and 208V receptacles.
It is designed as one module in a 2- or 3-section chef service counter assembly and is intended to be combined with matching center and right sections.
The model includes a 120V NEMA 5-15R receptacle and a 208V NEMA 6-15R receptacle, both pre-wired to the J-box.
The unit measures 97.5 inches wide by 48 inches deep by 35 inches high and weighs 1001 lb.
It uses 6-inch stainless steel legs with adjustable bullet feet, and the legs can be moved left to right to avoid floor obstacles during installation.
