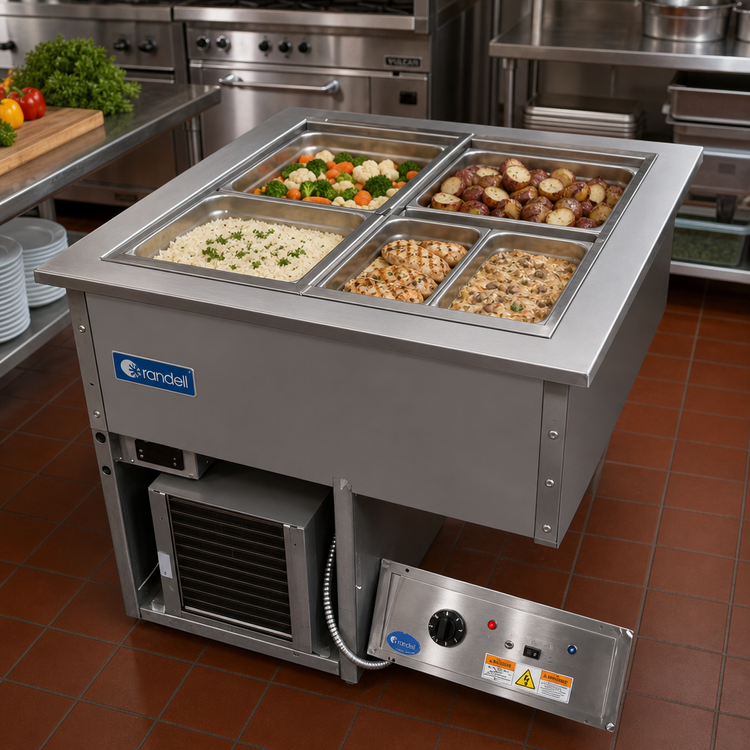

Randell RCHB-5-AF Drop-In 5-Pan Hot/Cold Combo Well
Auto-Fill | 71-1/4" Cut-Out | Made in the USAServe crisp salads and steaming entrées from the very same well. The Randell RCHB-5-AF combines a self-contained refrigerated cold pan with a thermostatically controlled hot water bath, letting you switch from 41 °F cold holding to NSF hot holding at the flip of a rocker switch—no separate equipment or wells required.
Why It Belongs on Your Line
- Five full-size (12" × 20") pans | keep high-volume menu items at the ready.

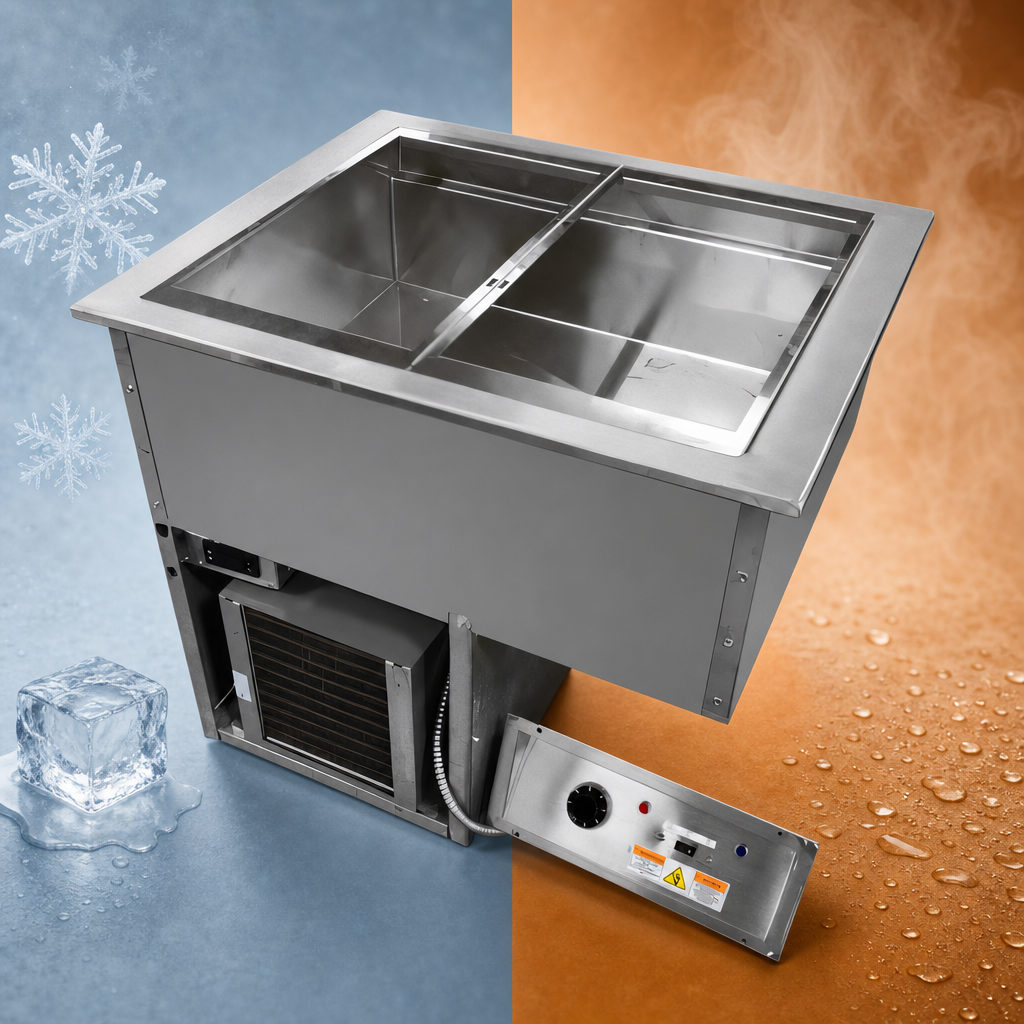

- Hot-or-Cold operation | electronic refrigeration control & thermostatic water-bath heat.
- Automatic water fill maintains proper bath level for consistent steam and reduces labor.
- 18 ga. stainless steel top & coved-corner liner wipe clean fast and resist corrosion.
- Eco-friendly R290a refrigerant (0 ODP / 3 GWP) with a robust ¼ HP compressor.
- Foamed-in-place polyurethane insulation boosts efficiency and keeps exterior temperatures low.
- 1" drain & gate valve for quick, complete water removal at day’s end.
- Drop-in “easy mount” system with dual louvered panel for simple, field-friendly installation.
- cULus & NSF listed for both hot and cold holding applications.
Technical Specifications
| Model | RCHB-5-AF |
|---|---|
| Pan Capacity | (5) 12" × 20" full-size pans (6" deep) |
| Cut-Out Size (WxD) | 71-1/4" × 25" |
| Overall Depth Below Counter | ≈ 28-3/4" |
| Refrigeration | Self-contained, ¼ HP, R290a |
| Electrical (Refrig.) | 120 V, 1 φ, 3.5 A (hard-wired) |
| Electrical (Heated) | 4.4 kW | 208 V / 21.2 A or 240 V / 18.3 A, 1 φ |
| Temperature Ranges | Cold: ≤ 41 °F | Hot: NSF compliant holding |
| Auto Water Fill | Standard |
| Drain | 1" NPT with gate valve |
| Construction | 18 ga. stainless top & interior; corrosion-resistant steel exterior |
| Insulation | CFC-free, foamed-in-place polyurethane |
| Listings | cULus, NSF, SNAP compliant |
| Ship Weight | ≈ 195 lb |
Allow approximately 60 minutes for the well to transition between hot and cold modes. The unit ships ready for hard-wire connection; installation by a qualified technician is recommended.
