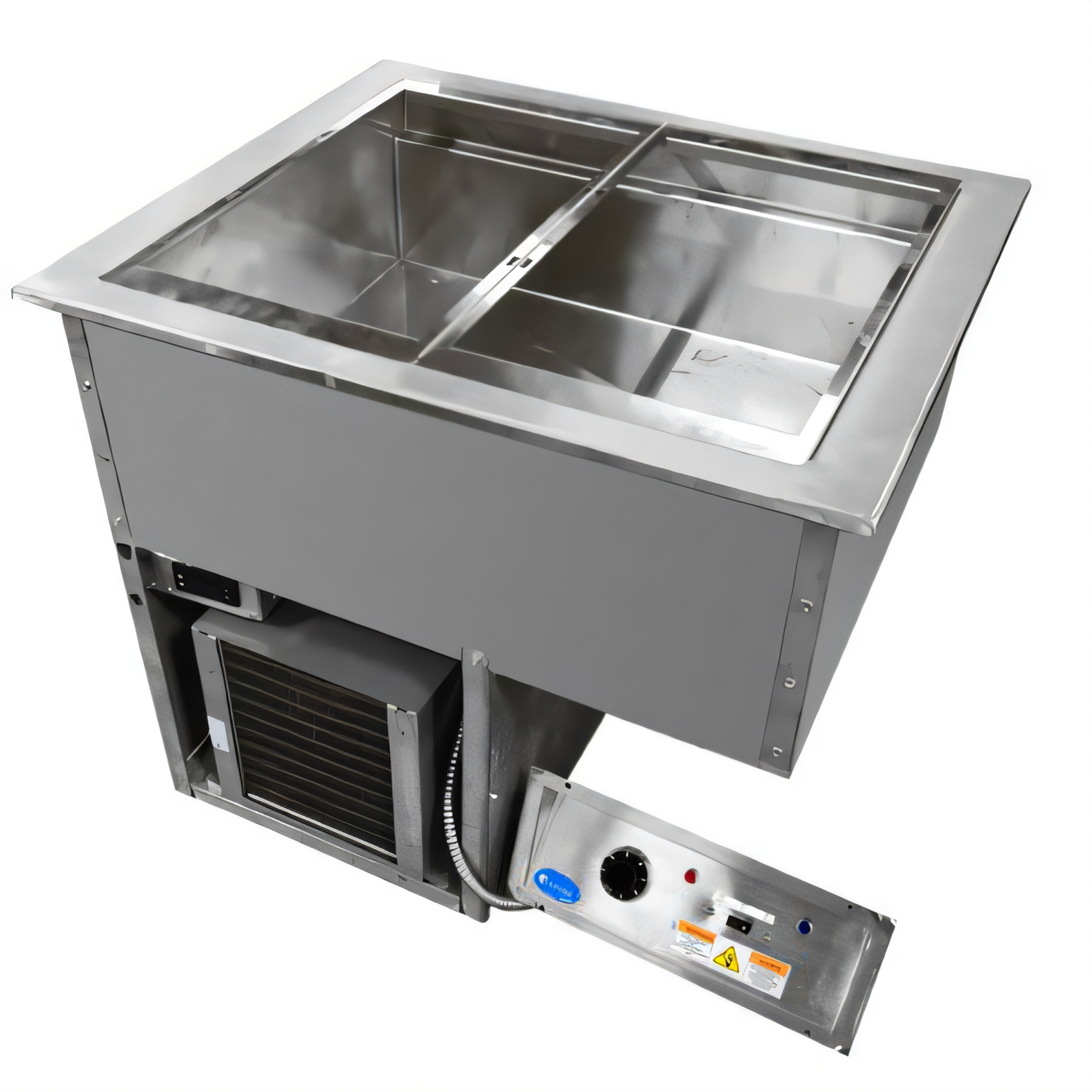

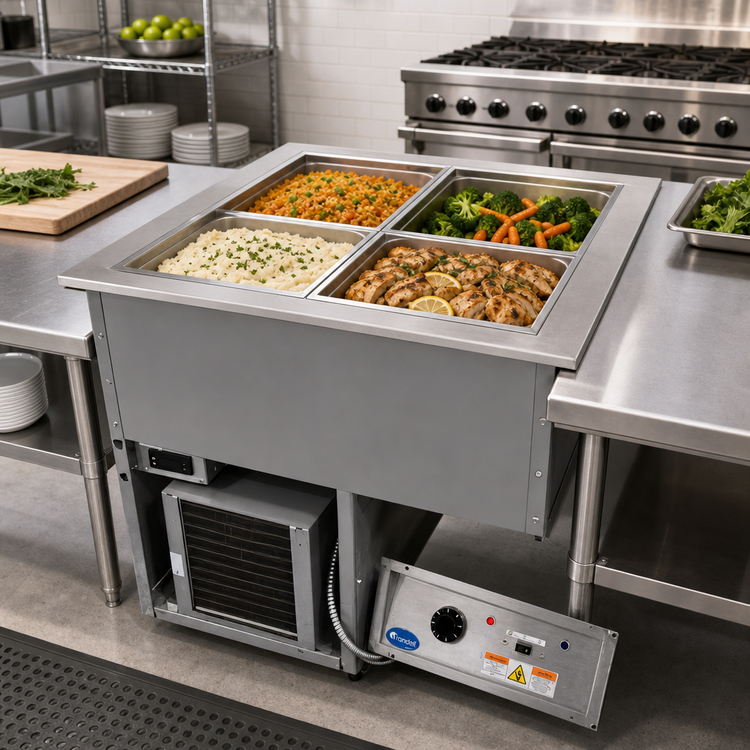

Randell RCHB-4-208-AF 4-Pan Drop-In Hot/Cold Food Well with Auto Water Fill

SKU: RCHB-4-208-AF
$30,374.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Randell Restaurant Equipment Steam Tables & Food Wells

Randell RCHB-4-208-AF 4-Pan Drop-In Hot/Cold Food Well with Auto Water Fill

4-Pan, 208V Heating, 120V Refrigeration, Auto Water Fill

Offer unparalleled flexibility with this single drop-in unit that effortlessly switches between hot and cold food holding, perfect for dynamic serving needs.

  • Versatile hot and cold operation in a single self-contained drop-in unit.
  • Accommodates (4) 12" x 20" full-size food pans for ample capacity.
  • Features automatic water fill for hot food well, simplifying operation.
  • Equipped with eco-friendly R-290 refrigeration system, meeting SNAP compliance.
  • Durable 18 gauge stainless steel construction ensures longevity and hygiene.
  • Thermostatic controls provide precise temperature management for both functions.

Overall Dimensions:

59.69"W x 26.13"D x 27.75"H

Product Weight:

170.0 lb

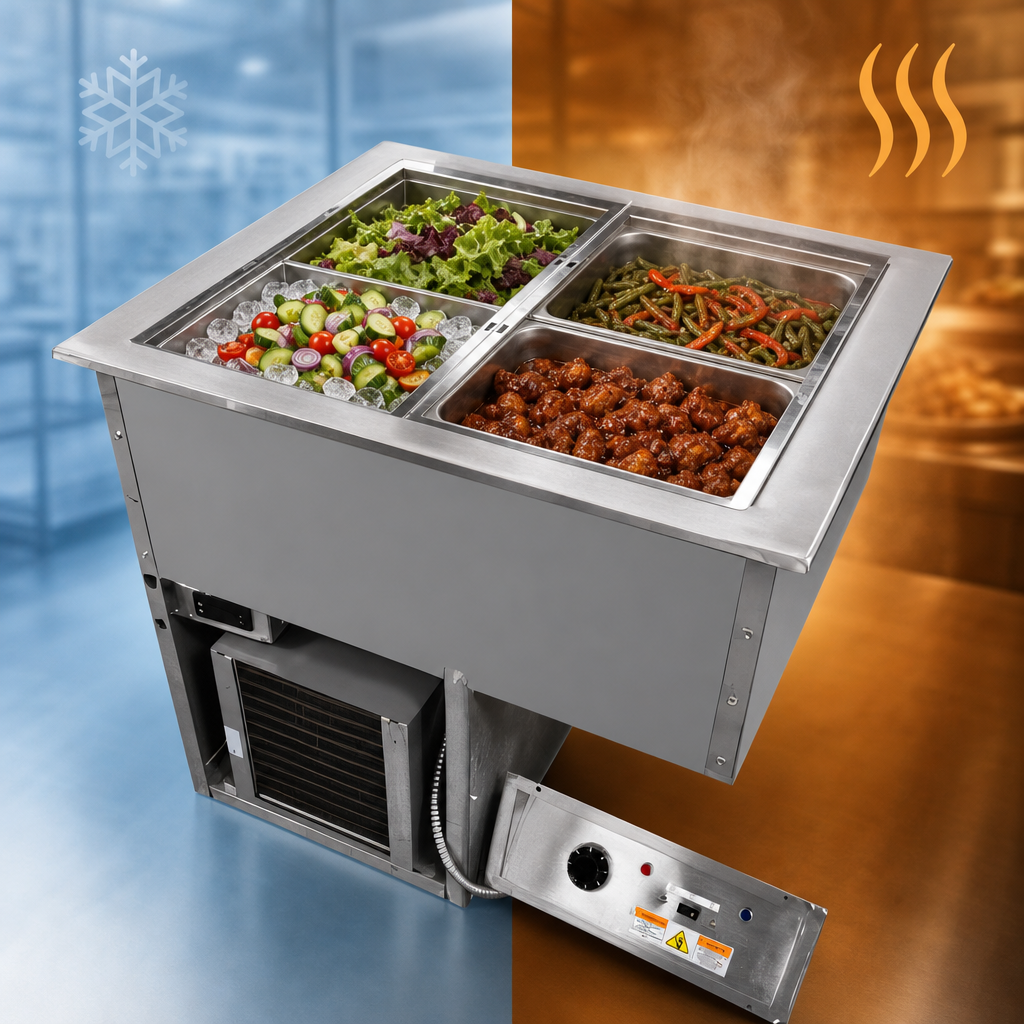

Combination Hot/Cold Unit

Functions as both a refrigerated cold pan and an electrically heated hot food unit, offering maximum versatility in a single drop-in well.

Auto Water Fill

Automatically fills the water bath for the hot food well, reducing manual oversight and ensuring consistent heating.

Self-Contained Refrigeration

Features a wrapped R-290 refrigeration system with electronic controls, providing efficient cooling while being environmentally safe and SNAP compliant.

Thermostatically Controlled Hot Well

Electrically heated open water bath tank for hot food holding is thermostatically controlled, meeting NSF Std. #4 requirements.

NSF Standards Compliance

Meets NSF Std. #7 for holding 41°F product temperatures in cold mode and NSF Std. #4 for hot food holding.

Durable Construction

Constructed with an 18 gauge stainless steel top and coved corner interior for easy cleaning and long-lasting durability, with a corrosion-resistant steel exterior.

Efficient Insulation

Insulated with CFC-free foamed-in-place polyurethane insulation for superior temperature retention.

Easy Installation

Designed for simple drop-in installation with an exclusive easy mount system, sliding duct, louver, and hold-down brackets. Controls are pre-wired to a remote panel for flexible counter mounting.

Type Drop-In Hot/Cold Combo Well
Style Electric
Installation Type Drop-In
Pan Capacity 4
Pan Size (4) 12 x 20 Inches
Heating Watts 3.3 kW
Heating Voltage 208 Volts
Heating Amps 15.9 Amps
Heating Phase 1-Phase
Refrigeration Horsepower 1/4 HP
Refrigeration Voltage 120 Volts
Refrigeration Amps 3.5 Amps
Refrigeration Phase 1-Phase
Hertz 60 Hz
Plug Type Hardwire Connection
Controls Thermostatic
Refrigerant Type R-290
Material 18 Gauge Stainless Steel Top & Interior, Corrosion Resistant Steel Exterior
Interior Finish Stainless Steel
Drain Connection Size 1 Inch
Water Connection Required
Water Inlet Size 3/4 Inch
Cutout Length 59-11/16 Inches
Cutout Width 26-1/8 Inches
Shipping Width 60 Inches
Shipping Depth 27 Inches
Shipping Height 28 Inches
Shipping Weight 170 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

Manufacturer's Warranty

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This unit is designed to hold four (4) full-size 12" x 20" food pans.
Yes, this model (RCHB-4-208-AF) includes an automatic water fill feature for the hot well and requires a 3/4" water inlet connection.
The heating element operates on 208 Volts, 1-Phase, 15.9 Amps (3.3 kW), while the refrigeration system requires 120 Volts, 1-Phase, 3.5 Amps (1/4 HP). Both require a hardwire connection.
The unit utilizes an environmentally safe R-290 refrigeration system, which is CFC-free and SNAP compliant, with zero ozone depletion potential (ODP) and low global warming potential (GWP).
Allow approximately 60 minutes for the unit to transition between hot and cold operating temperatures.
