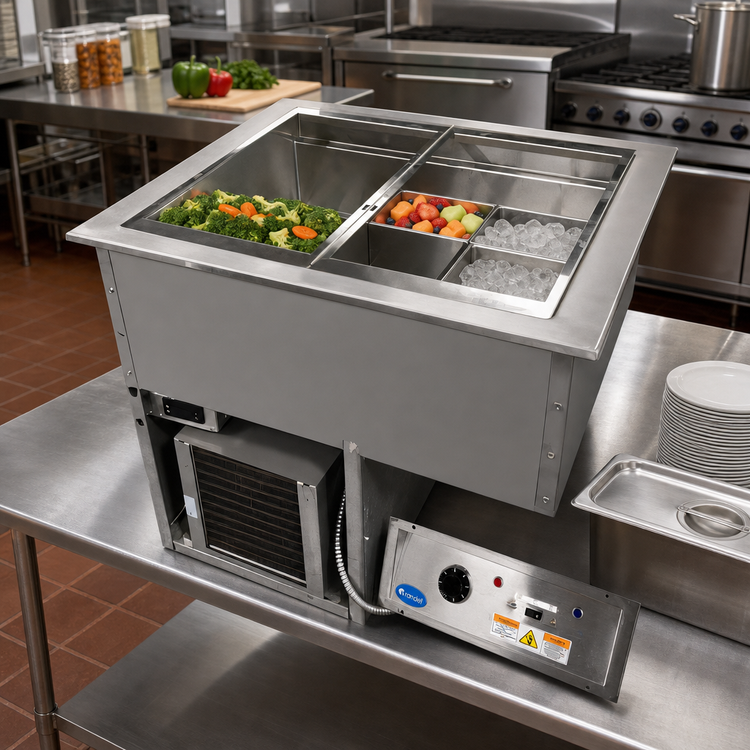

Randell RCHB-3-208 Drop-In Hot/Cold Combination Food Well, 3-Pan, 208V

Common Water Bath, Self-Contained R-290 Refrigeration, Thermostatic Controls

This 3-pan drop-in combo well gives buffet lines refrigerated cold holding and electric hot holding in a single stainless steel unit.

  • Drop-in hot/cold combo well for flexible buffet and serving-line holding.
  • Holds three 12 in. x 20 in. pans with a common water bath and pan supports.
  • Self-contained R-290 refrigeration with electronic control for precise cold temperatures.
  • Thermostatically controlled electric hot holding with simple hot/cold switch-over.
  • 18-gauge stainless steel top and interior with a corrosion-resistant steel exterior.
  • Includes a 1 in. drain with gate valve and is designed for a 42-1/2 in. W x 25 in. D cutout.

Overall Dimensions:

44.06"W x 26.13"D x 27.75"H

Product Weight:

135.0 lb

Dual Hot/Cold Operation

Switch between refrigerated cold holding and electrically heated hot holding in one common water bath unit.

Three-Pan Capacity

Sized for three 12 in. x 20 in. pans with recessed pan supports and adapter bars for service-line use.

Self-Contained R-290 Refrigeration

Wrapped refrigeration system with electronic control for precise cold holding and NSF Std. #7 performance at 41°F.

Thermostatic Hot Water Bath

Electrically heated open water bath with thermostatic control for reliable hot food holding to NSF Std. #4 requirements.

Stainless Steel Construction

Built with an 18-gauge stainless steel top and interior, corrosion-resistant steel exterior, and made in the USA.

Drain and Gate Valve

A 1 in. drain with gate valve is included to simplify draining and cleanup.

Drop-In Installation

Exclusive easy-mount design with sliding duct, louver, and hold-down brackets for counter installation.

Quick Mode Changeover

Allow approximately 60 minutes to transition between hot and cold operation.

Type Hot/Cold Combination Food Well
Style Combination
Installation Type Drop-In
Cooling Style Mechanically Cooled
Controls Rocker Switch and Thermostatic
Pan Capacity 3
Pan Size 12 Inches x 20 Inches
Refrigeration Type Self-Contained
Refrigerant Type R-290
Voltage 208 Volts
Amps 10.6 Amps
Watts 2.2 kW
Horsepower 1/4 HP
Hertz 60 Hz
Phase 1-Phase
Plug Type Hardwired
Material Stainless Steel
Interior Finish Stainless Steel
Finish Corrosion Resistant Steel Exterior
Drain Connection Required
Drain Connection Size 1 Inch
Water Connection Not Required
Cutout Size 42-1/2 Inches W x 25 Inches D
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 45 Inches
Shipping Depth 27 Inches
Shipping Height 28 Inches
Shipping Weight 135 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds three 12 in. x 20 in. pans.
It is hardwired; the heated section is rated at 2.2 kW on 208V/1-phase, and the refrigeration side draws 3.5 amps at 120V/1-phase.
The refrigeration system uses R-290.
The required cutout is 42-1/2 in. W x 25 in. D.
Yes, it includes a 1 in. drain with gate valve.
Allow approximately 60 minutes for transition between hot and cold operation.
