Randell RCHB-3-208-AF Drop-In Electric Hot/Cold Combo Food Well, 3-Pan, 208V, Auto Water Fill

SKU: RCHB-3-208-AF
$28,888.65
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

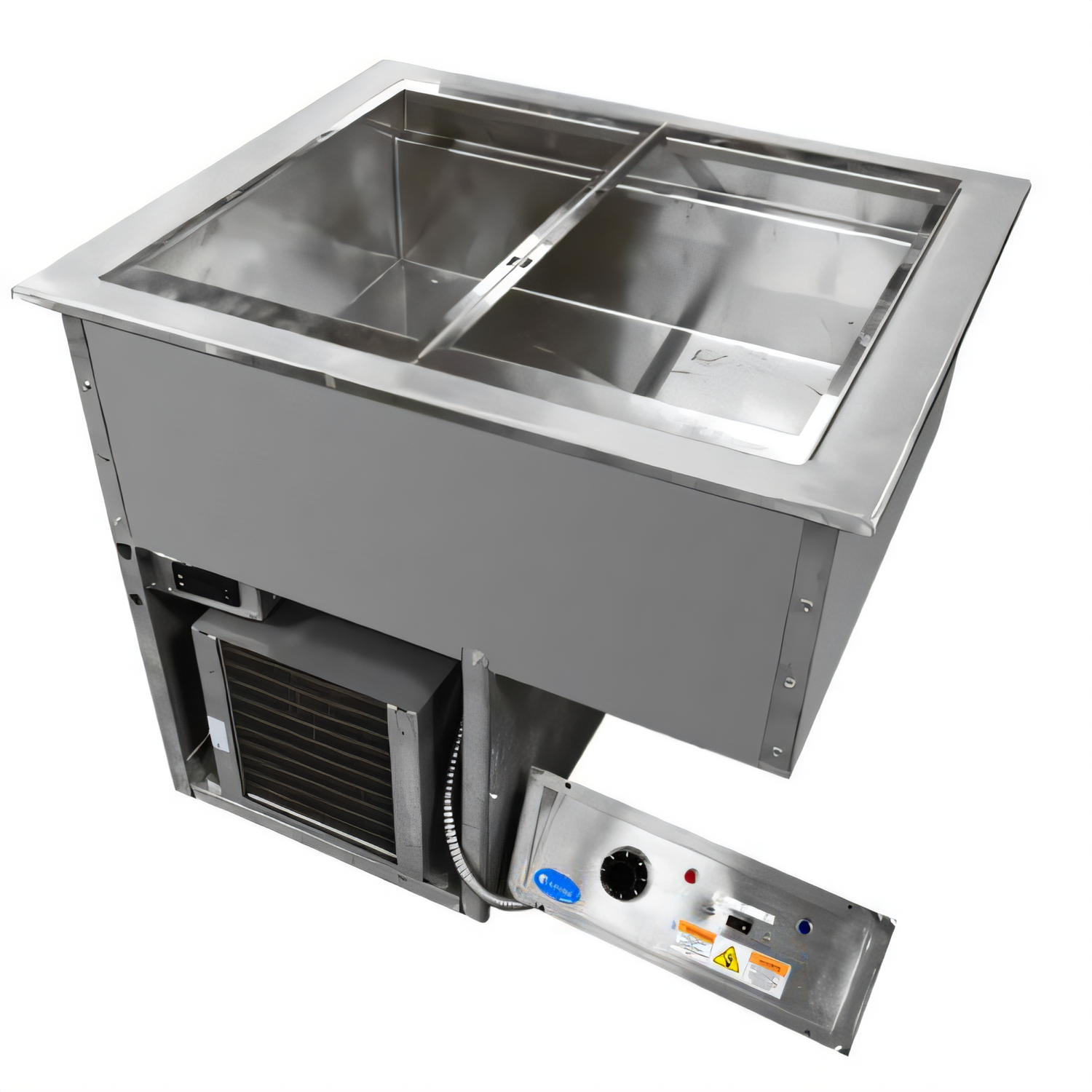

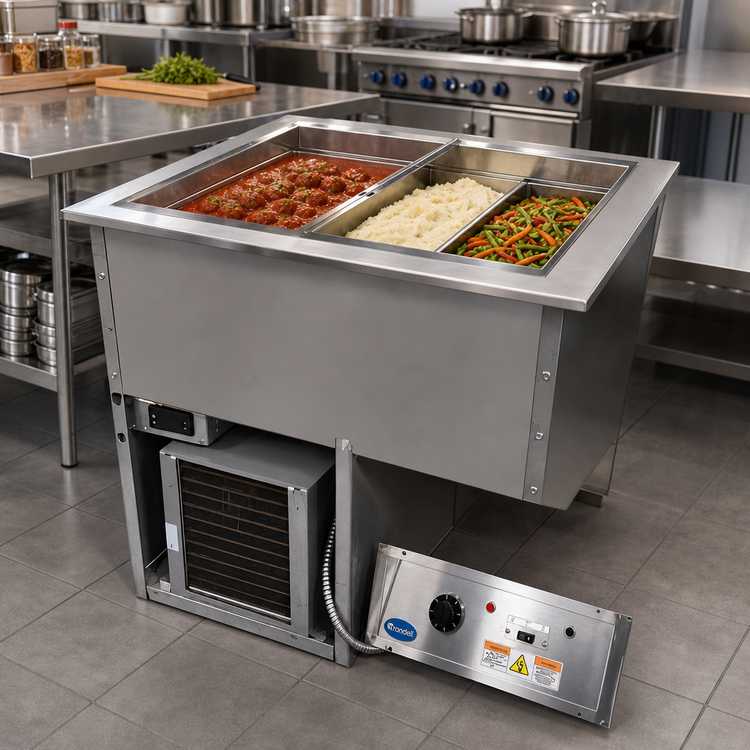

Randell RCHB-3-208-AF Drop-In Electric Hot/Cold Combo Food Well, 3-Pan, 208V, Auto Water Fill

Common Water Bath with Thermostatic Controls and R-290 Refrigeration

This drop-in combo well gives you hot and cold holding in one unit, with auto water fill and capacity for three 12 Inch x 20 Inch pans.

  • Combines a refrigerated cold pan and electrically heated hot water bath in one drop-in serving unit.
  • Sized for three 12 Inch x 20 Inch pans for buffet and serving line applications.
  • Auto water fill, 1-inch drain, and gate valve help simplify daily operation.
  • Self-contained R-290 refrigeration with electronic control supports cold holding.
  • Thermostatic hot-side controls help maintain consistent hot food temperatures.
  • 18-gauge stainless steel top and interior with a corrosion-resistant steel exterior for durability.

Overall Dimensions:

46.69"W x 26.13"D x 27.75"H

Product Weight:

145.0 lb

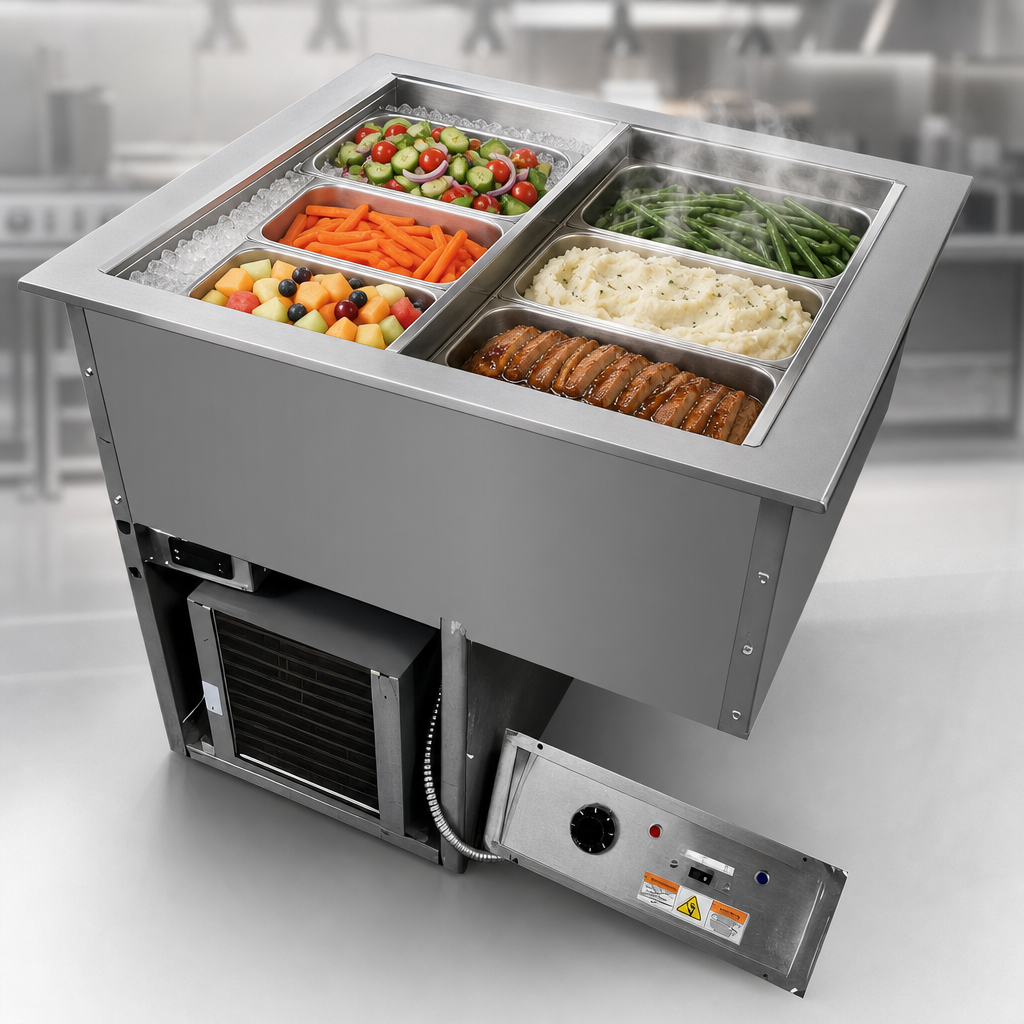

Dual Hot/Cold Operation

Provides refrigerated cold holding and electrically heated hot holding in one drop-in unit with switchable operation.

Auto Water Fill

Automatic water fill helps maintain the hot water bath level on the AF model.

Three-Pan Capacity

Designed to hold three 12 Inch x 20 Inch pans.

R-290 Self-Contained Refrigeration

Uses a self-contained wrapped refrigeration system with electronic temperature control.

Thermostatic Hot Control

The hot water bath is thermostatically controlled for reliable hot food holding.

Stainless Steel Construction

Built with an 18-gauge stainless steel top and interior plus a corrosion-resistant steel exterior.

Drain and Gate Valve

Includes a 1 Inch drain and gate valve for easy draining and cleanup.

Easy Mount Design

Easy-mount installation hardware and insulated construction support drop-in counter installation.

Type Hot/Cold Combo Food Well
Style Common Water Bath
Installation Type Drop-In
Controls Thermostatic
Pan Capacity 3
Pan Size 12 Inch x 20 Inch
Refrigeration Type Self-Contained
Refrigerant Type R-290
Voltage 208 Volts
Amps 10.6 Amps
Watts 2.2 kW
Horsepower 1/4 HP
Hertz 60 Hz
Phase 1-Phase
Plug Type Hardwired
Water Inlet Size 3/4 Inch
Drain Connection Size 1 Inch
Water Connection Required
Drain Connection Required
Material Stainless Steel
Interior Finish Stainless Steel
Finish Corrosion Resistant Steel Exterior
Country of Origin USA
Selling Unit Each
Units Per Case 1
Cutout Width 45-1/4 Inches
Cutout Depth 25 Inches
Shipping Width 47 Inches
Shipping Depth 27 Inches
Shipping Height 28 Inches
Shipping Weight 145 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Frequently Asked Questions

It is designed for three 12 Inch x 20 Inch pans.
Yes. It combines a refrigerated cold pan with an electrically heated hot water bath and includes a switch for hot or cold operation.
Yes, the RCHB-3-208-AF includes auto water fill.
The unit cutout size is 45-1/4 Inches W x 25 Inches D.
It uses R-290 refrigerant.
It includes a 1 Inch drain with gate valve.
