Randell RANFG HTD-6 Custom & Serving Serving Counters
Description
Randell RANFG HTD-6 Mobile Hot Food Table
86" W • 6-Well • Enclosed Base • Made in USAKeep your serving line moving and your entrées piping hot. The Randell RANFG HTD-6 combines six independently-controlled hot wells, a rugged stainless work surface and a one-piece fiberglass body into a fully mobile, inter-locking station that’s ready for the rigors of commercial foodservice.
Key Features

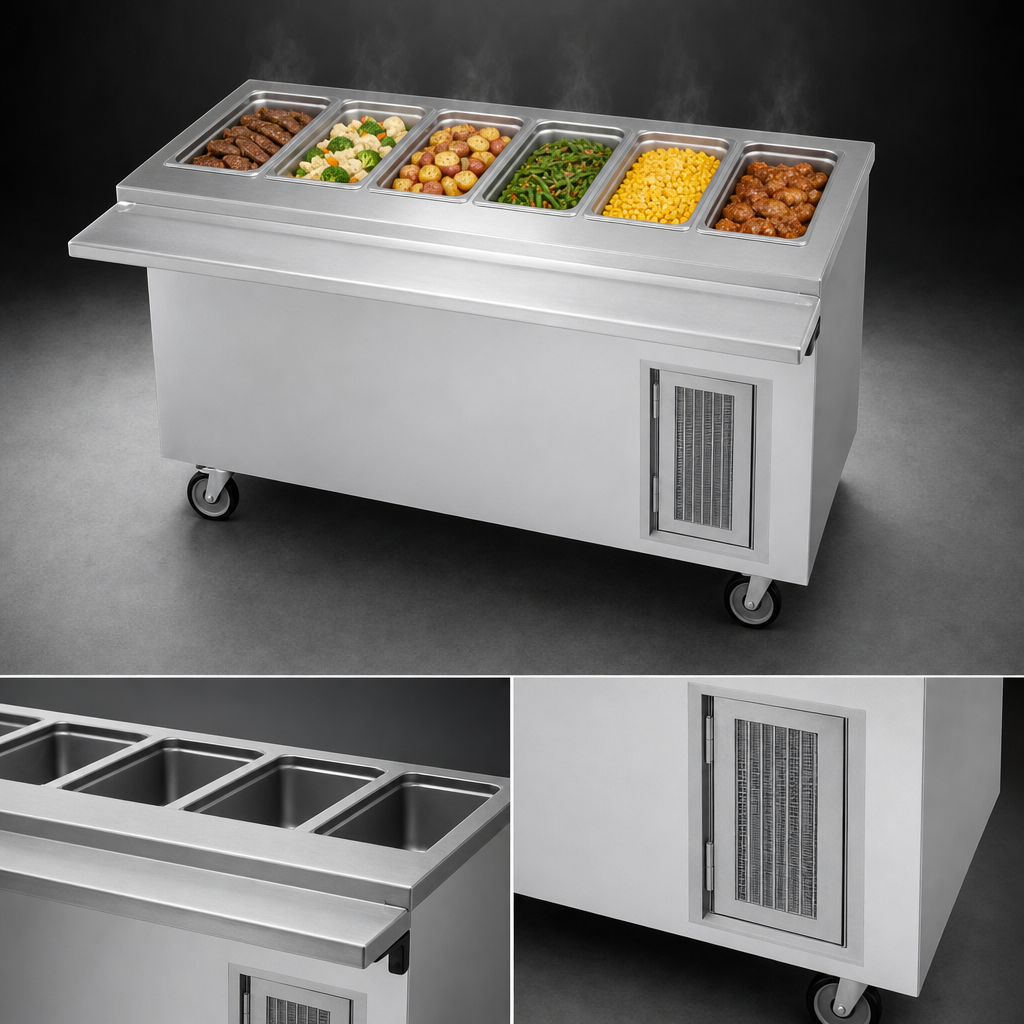

- Six 12" × 20" die-stamped wells—each with its own thermostatic dial for precise holding temps.

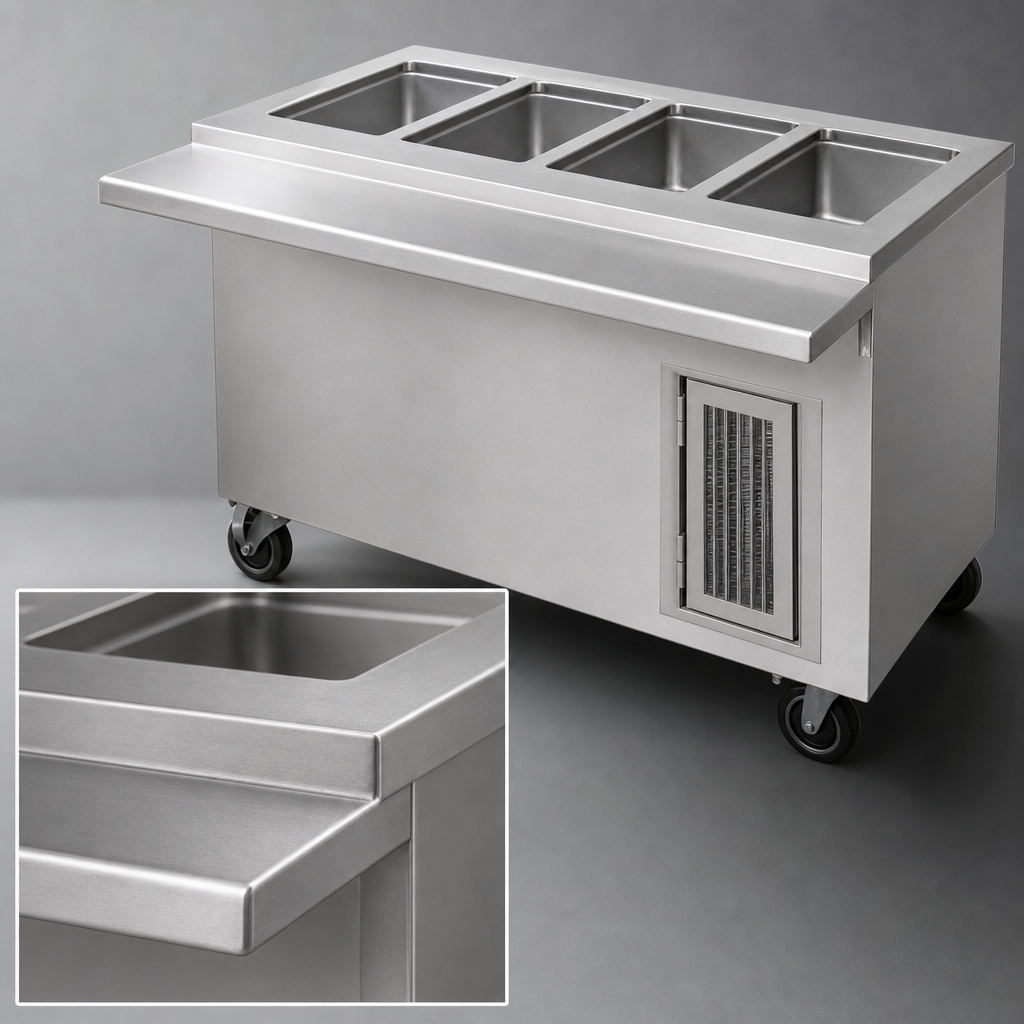

- One-piece 16 ga. stainless steel top with raised sanitary rim to catch spills.
- Durable, color-select fiberglass body reinforced with internal metal backers.
- Enclosed cabinet base hides plumbing & wiring while protecting components.
- Manifolded drains with 1" gate valve for quick, mess-free clean-out.
- 4 swivel casters (2 locking) plus spring-activated locks for line-up stability.
- 8' factory-installed cord & plug—no hardwiring required.
- NSF Std. 4 listed & cULus certified.
Why Operators Love It
- Modular design aligns perfectly with Randell salad bars, cashier stands and tray slides.
- Field-proven reliability backed by a 1-year parts & labor warranty (5-year optional).
- Made in the USA by Electrolux Professional Group for premium build quality and fast parts availability.
Specifications
| Model | RANFG HTD-6 (closed base) |
|---|---|
| Pan Capacity | 6 × 12" × 20" steam-table pans |
| Overall Dimensions | 86" W × 30" D × 35.5" H |
| Top Material | 16-gauge stainless steel |
| Body Material | Molded fiberglass (14 standard colors) |
| Base Style | Enclosed cabinet (non-heated) |
| Drain | Common 1" drain with gate valve |
| Casters | 4 swivel, 2 locking |
| Shipping Weight | Approx. 390 lb |
Electrical Options
| Voltage | Per-Well Wattage | Total Amps | NEMA Plug |
|---|---|---|---|
| 120 V / 1-ph | 500 W | 25 A | 5-50P |
| 208 V / 1-ph | 865 W | 24.95 A | 6-50P |
| 240 V / 1-ph | 1100 W | 27.5 A | 6-50P |
Amperage shown is for the base unit only. Add accessory loads (heat lamps, lighting, etc.) to determine total circuit requirement.
Popular Accessories (sold separately)
- Stainless steel or Corian® tray slides
- Single- or double-sided overshelves
- Food shields / sneeze guards
- Custom graphics & color-matched fiberglass body
- Electrical distribution raceway for multi-unit installations
Need fewer wells or heated storage? Explore the full Randell RANFG HTD series (2- to 6-well, open storage and heated base models) to build your complete serving line.
