Randell RANFG HTD-5B Custom & Serving Serving Counters
Description
Randell RANFG HTD-5B Mobile 5-Well Hot Food Table
72" Heated Base • Fiberglass Body • Made in USABuilt for high-volume cafeterias, buffets and catering lines, the Randell RANFG HTD-5B keeps five full-size pans of product at precise serving temperatures while offering a fully-heated storage cabinet below. Heavy-duty stainless steel where you need it, seamless fiberglass everywhere else—this is the industry-trusted combo of durability, mobility and food-safe performance.
Why You’ll Love It

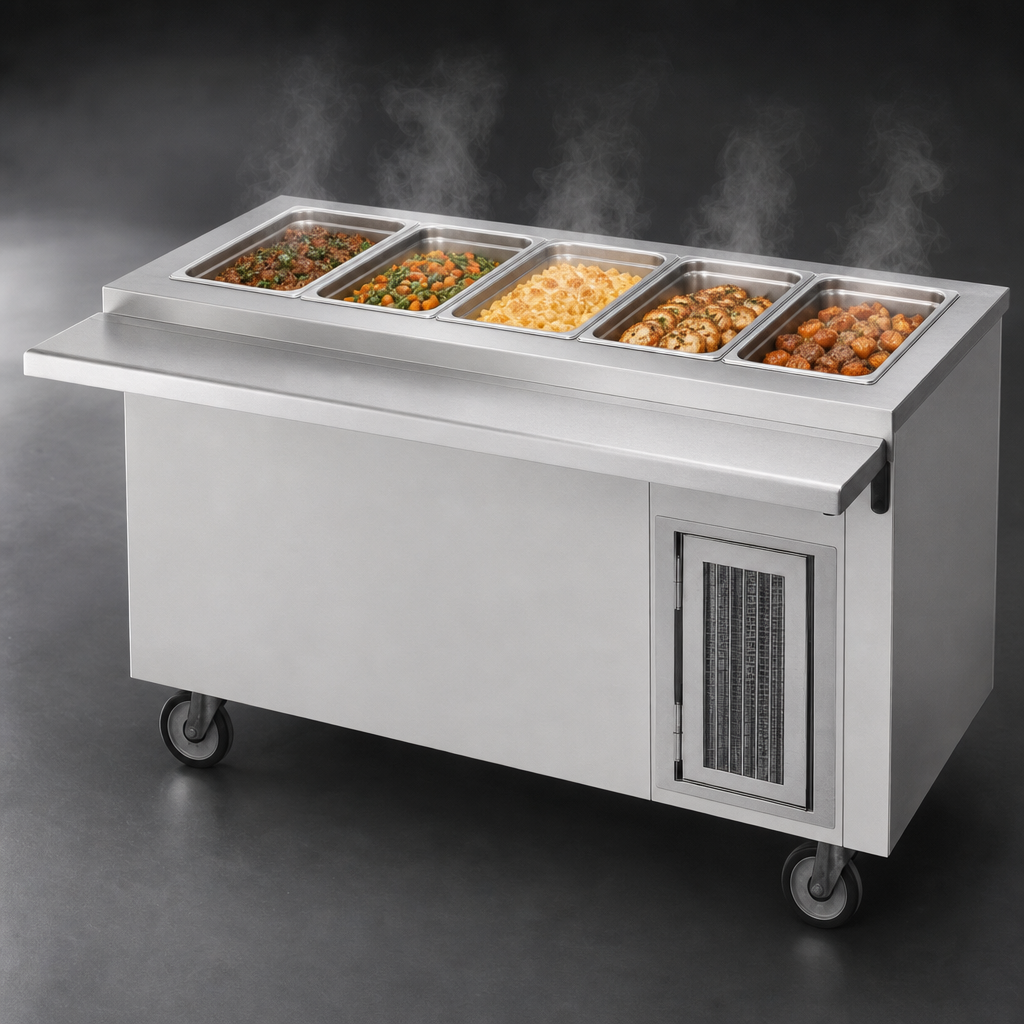

- Five individual 12" × 20" die-stamped wells with independent thermostatic controls for pinpoint temperature management.
- NSF-approved heated cabinet base (one chrome shelf per door) keeps back-up trays at the ready.
- 16-gauge stainless steel top with raised sanitary rims prevents drips and food debris from reaching the serving line.
- One-piece, color-through fiberglass body resists dents, chips and moisture infiltration.
- Manifolded drain system with 1" gate valve for quick clean-up at shift’s end.
- Four 4" swivel casters—two locking—deliver true plug-and-play mobility.
- Concealed spring-latch locking device lets you seamlessly join other Randell serving stations.
- 8 ft factory-installed cordset—no hard-wiring required.
At-a-Glance Specs
| Model | RANFG HTD-5B |
|---|---|
| Overall Dimensions (W × D × H) | 72" × 30" × 35.5" |
| Number / Size of Wells | 5 × 12" × 20" full-size |
| Base Type | Heated storage cabinet, hinged doors, 1 chrome shelf per door |
| Top Construction | One-piece 16-ga. stainless steel with 1-1/2" 90° nosing |
| Body Construction | One-piece molded fiberglass, color-through (multiple colors available) |
| Drainage | Individual well drains manifolded to common 1" gate valve |
| Electrical |
208 V / 60 Hz / 1 ph, 30.6 A, NEMA 6-50P (standard) 240 V / 60 Hz / 1 ph, 27.1 A, NEMA 6-50P (optional) |
| Shipping Weight | Approx. 350 lb |
| Certifications | NSF, cULus, Made in USA |
Standard Features
- Individual thermostat & indicator light for each well
- Factory-installed 8 ft cord & plug
- Common drain with front-mounted valve
- Four 4" swivel casters (2 locking)
- Spring-activated interlock for modular station lines
Factory Options & Accessories
- Overshelves or food shields
- Trayslides & condiment rail
- Graphics & custom finishes
- Corian or 14-ga. stainless tops
- Elementary-height body
- Electrical distribution system for multi-unit lines
Contact our team for lead-times, color swatches and full customization support.
Warranty
Includes 1-year parts & labor coverage from date of installation (or 3 months after shipment), backed by Randell’s nationwide service network. Optional extended plans available—ask your sales rep for details.
From coast-to-coast school cafeterias to high-end hospitality buffets, the Randell RANFG HTD-5B delivers the reliability, presentation and throughput that busy foodservice operations demand. Add it to your line and keep every plate hot—every time.
