Randell RANFG HTD-4S Custom & Serving Serving Counters
Description

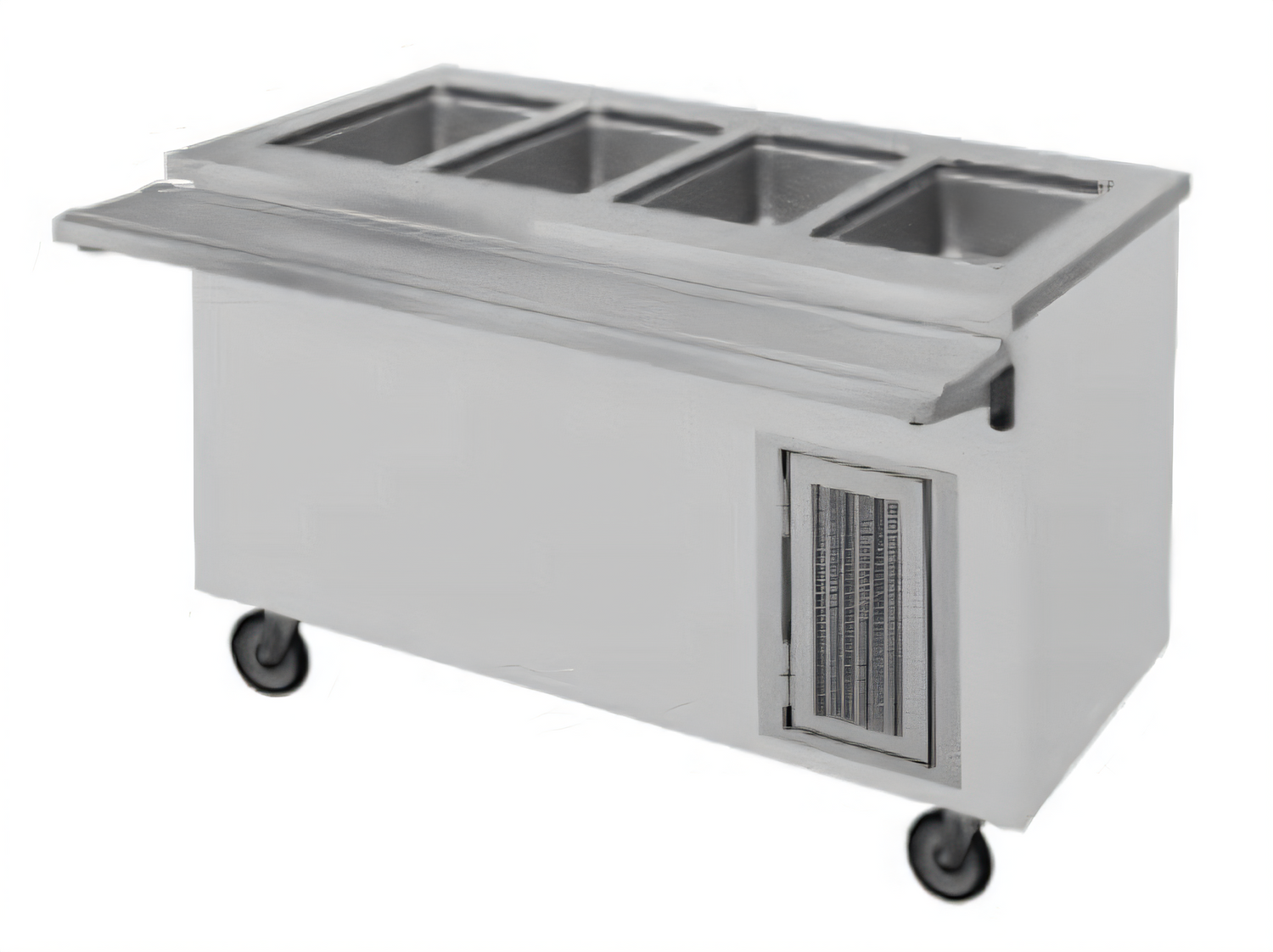

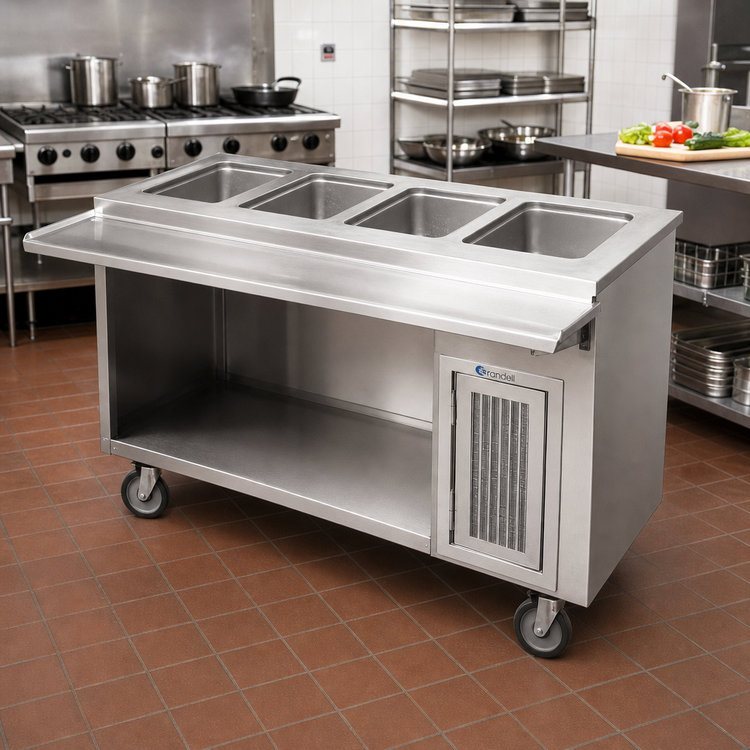

Randell RANFG HTD-4S 60" Mobile Hot Food Table
4-Well | Open Storage Base | Fiberglass BodyGive your serving line the professional edge with Randell’s USA-made HTD series. The RANFG HTD-4S combines a heavy-duty 16 ga. stainless top, four individually-controlled hot wells, and a durable one-piece fiberglass body on locking casters—everything you need to keep entrées, sides, and sauces safely held at the perfect temperature from kitchen to customer.
Key features & benefits
- Four 12" × 20" die-stamped wells with raised rims meet NSF 4 for safe holding.

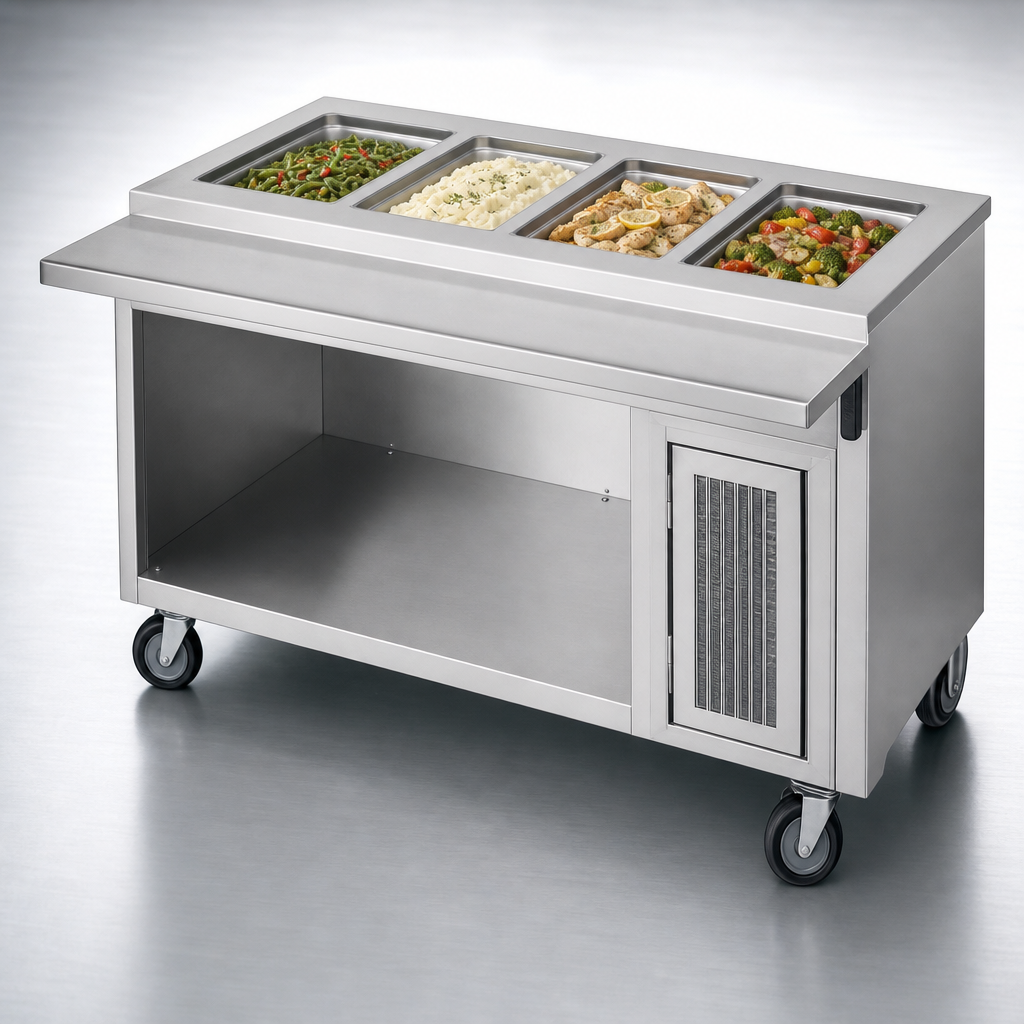

- Independent thermostatic controls & indicator lights for precise temperature management.
- Drains in every well are manifolded to a common 1" gate-valve for fast, mess-free cleanup.
- 16 ga. all-stainless work surface resists dents, corrosion, and daily wear.
- One-piece fiberglass body is reinforced with internal metal backers for unmatched durability.
- Open cabinet base with 22 ga. stainless undershelf keeps pans and utensils right where you need them.
- 4 × swivel casters (2 locking) provide effortless mobility and rock-solid stationing.
- Concealed spring-catch locking device lets you securely interlock with other Randell serving modules.
- 8' cordset with factory-installed NEMA plug—just roll it in, plug it in, and start serving.
- cULus listed, NSF certified, and proudly Made in the USA.
Technical specifications
| Model | RANFG HTD-4S (open base) |
|---|---|
| Overall dimensions | 60" W × 30" D × 35.5" H |
| Number / size of wells | 4 × 12" × 20" (full-size) |
| Well controls | 4 independent thermostats (500 W or 865 W / 1100 W options) |
| Electrical (single-phase) |
120 V / 16.7 A (500 W per well) — NEMA 5-30P 120 V / 36.7 A (1100 W per well) — NEMA 5-50P 208 V / 16.6 A (865 W per well) — NEMA 6-30P 208 V / 21.1 A (1100 W per well) — NEMA 6-30P 240 V / 18.3 A (1100 W per well) — NEMA 6-30P |
| Drain | Common 1" brass valve |
| Casters | 4 swivel (2 front locking) |
| Shipping weight | ≈ 260 lb (118 kg) |
| Construction | 16 ga. stainless top, one-piece fiberglass body, 22 ga. stainless undershelf |
| Compliance | NSF 4, cULus |
| Origin | Made in the USA |
Factory options & accessories
- Canopy, food shields, or single / double overshelves
- Stainless, Corian®, or 14 ga. tops
- Elementary-school height
- Hinged doors or locks for open base
- Custom graphics & color matched fiberglass (14 standard colors)
- Electrical distribution system & reduced-wattage elements
Consult your Randell representative for lead times & pricing on optional features.
Warranty
1-year parts & labor warranty included. Additional extended warranty programs are available—please contact Randell or your authorized service agent for details.
