Randell RANFG HTD-4 Custom & Serving Serving Counters
Description

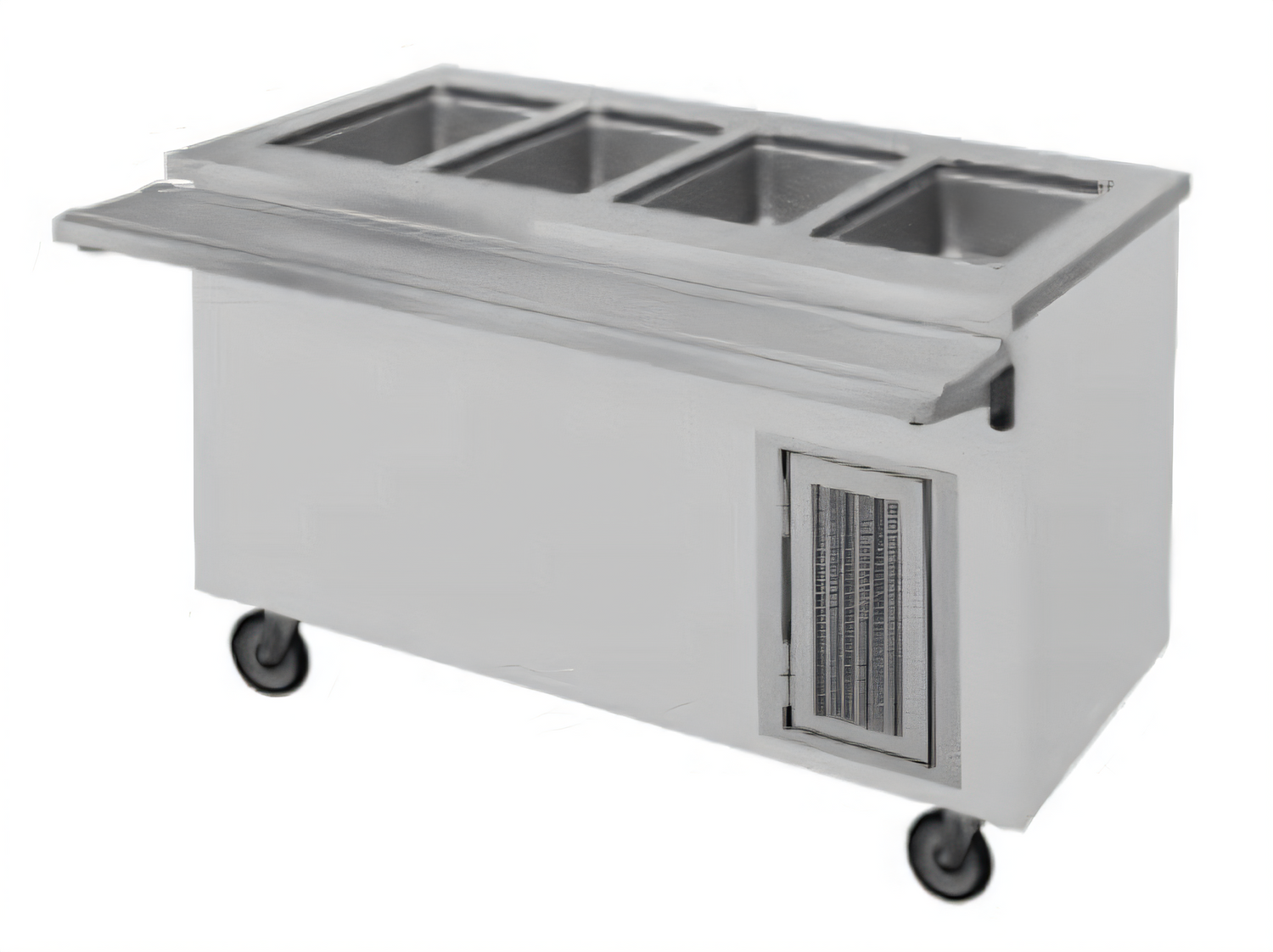

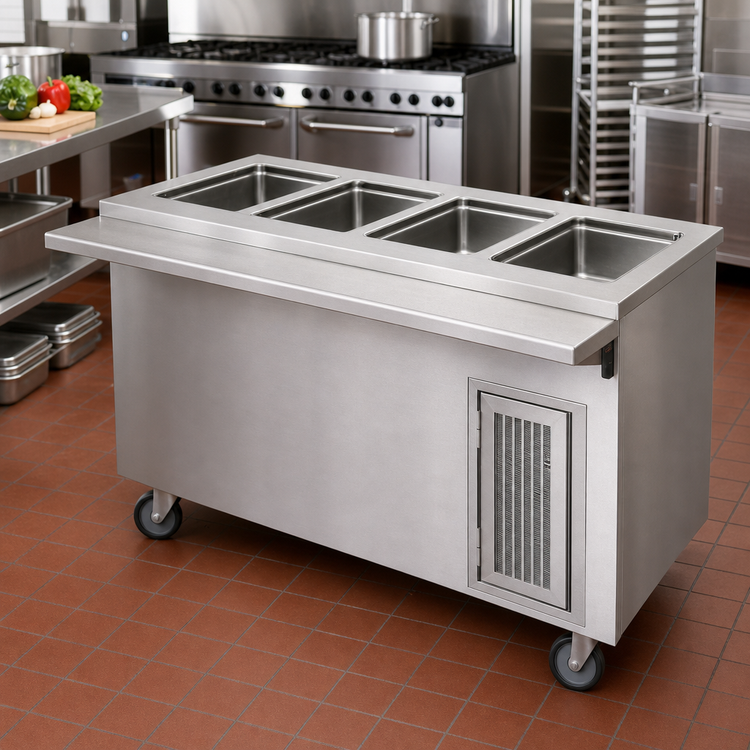

Randell RANFG HTD-4 Mobile Hot Food Table – 60" (4-Well)
Custom & Serving Line Station | Made in USAHold entrées, sides and sauces at perfect serving temperature—anywhere you need them. Built around Randell’s proven fiberglass body and 16-gauge stainless steel top, the RANFG HTD-4 combines rock-solid durability with precise independent heat control, all on a nimble, locking-caster base that integrates seamlessly into any modular serving line.
Why You’ll Love It
- Four 12" × 20" hot wells with individual thermostatic controls for menu-by-menu accuracy.

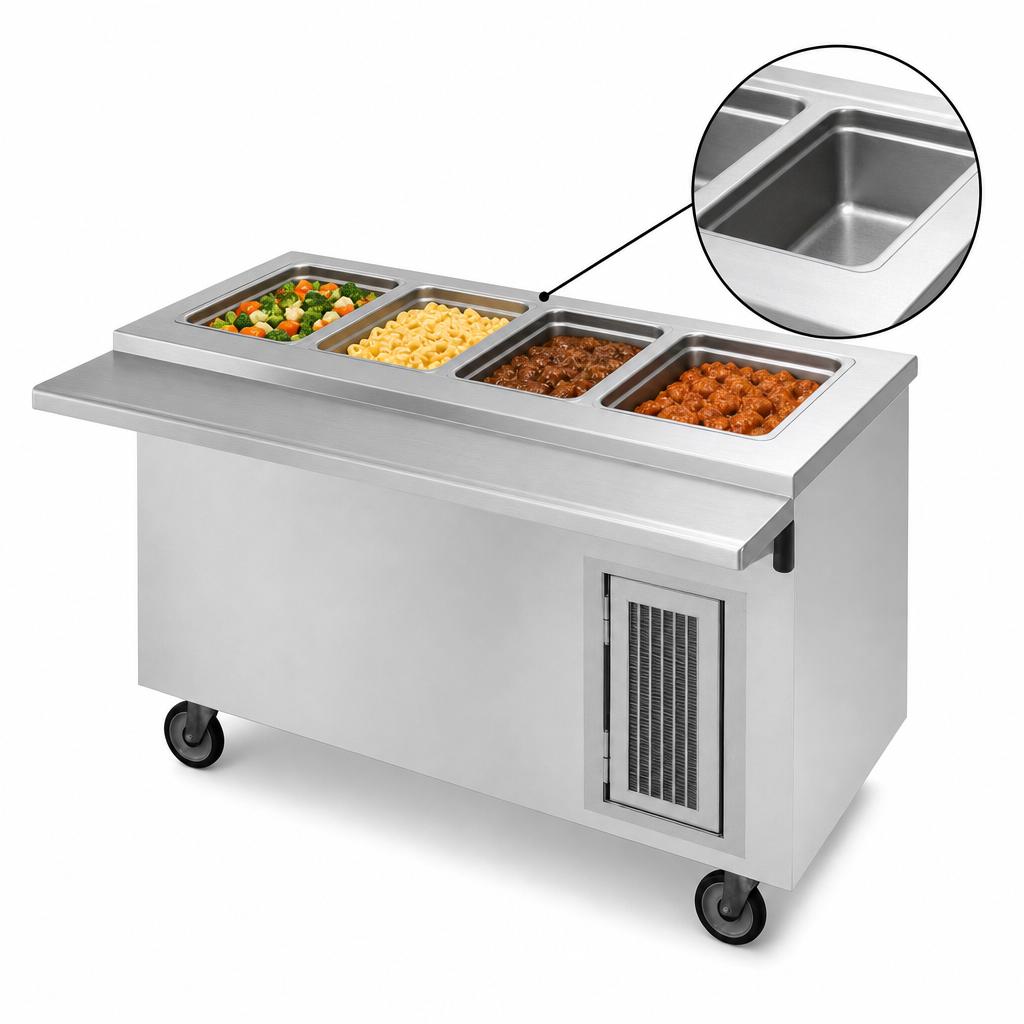

- Die-stamped raised rims contain spills and keep pans perfectly centered.
- One-piece fiberglass body—smooth, reinforced and easy to clean.
- Common 1" gate valve with manifolded drains for quick, mess-free emptying.
- Mobile design: 4 swivel casters (2 locking) plus spring-catch link-up latch to connect with other Randell stations.
- Enclosed cabinet base protects plumbing & electrical while maintaining a clean exterior look.
- 8' factory cord & plug; orderable in 120 V, 208 V or 240 V.
- NSF 4 & cULus listed; engineered and manufactured in the USA.
Perfect For
- School & university cafeterias
- Hospital, senior-living and healthcare feeding
- Corporate & industrial self-service lines
- Catering kitchens needing mobile hot holding
Technical Specifications
| Model | RANFG HTD-4 (closed base) |
|---|---|
| Pan Capacity | 4 × 12" × 20" full pans (or fractional equivalents) |
| Overall Size | 60" W × 30" D × 35.5" H |
| Top | 16-ga. stainless steel, 1½" nosing |
| Body | One-piece molded fiberglass (multiple color options available) |

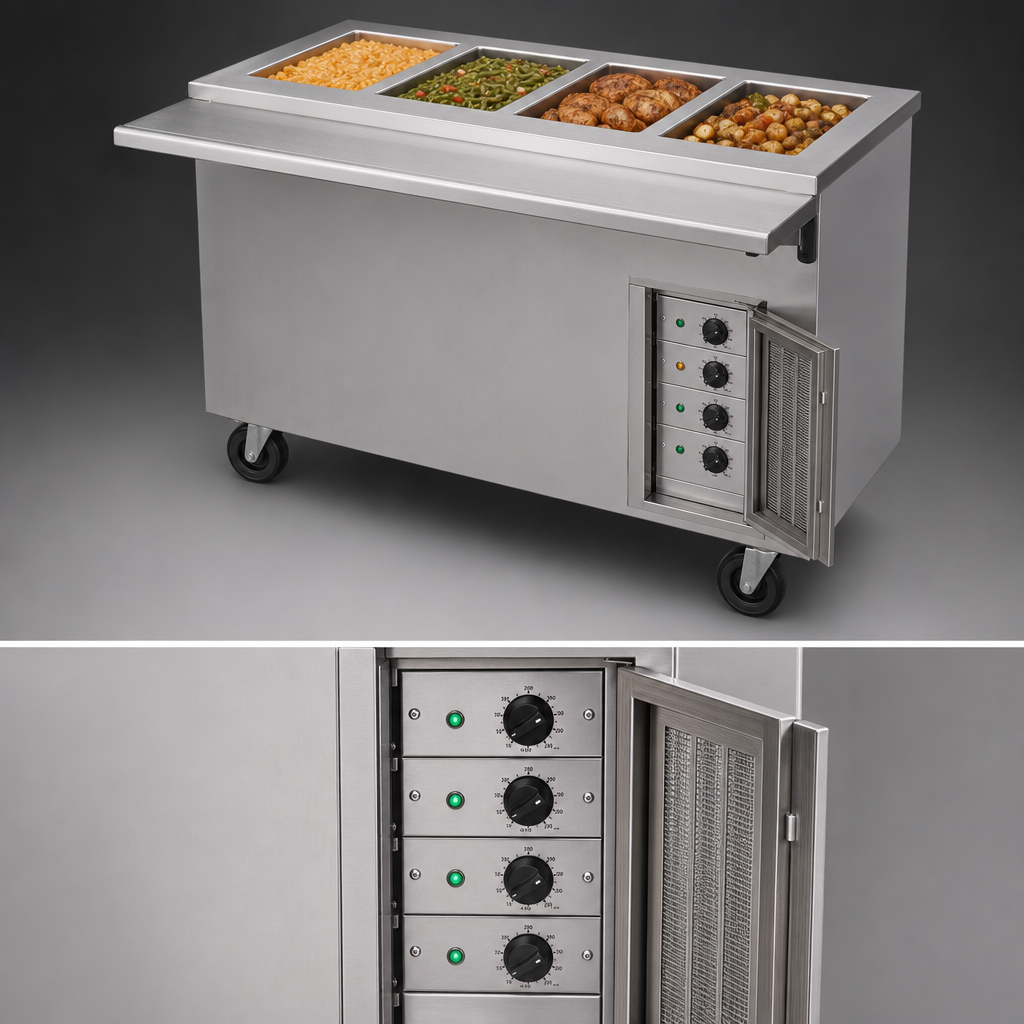

| Heat Control | Independent thermostats with illuminated ON/OFF indicators |
| Drainage | Individual well drains manifolded to common 1" valve |
| Mobility | (4) 5" swivel casters, 2 locking |
| Electrical |
120 V / 1 ph / 16.7 A — NEMA 5-30P 208 V / 1 ph / 36.7 A — NEMA 5-50P 240 V / 1 ph / 18.3 A — NEMA 6-30P |
| Shipping Weight | Approx. 260 lb (118 kg) |
| Certifications | NSF, cULus |
Looking for a specific color, graphics package, overshelves or food shields? Our team can help you configure a fully branded serving line.
