Randell RANFG HTD-3B Custom & Serving Serving Counters
Description

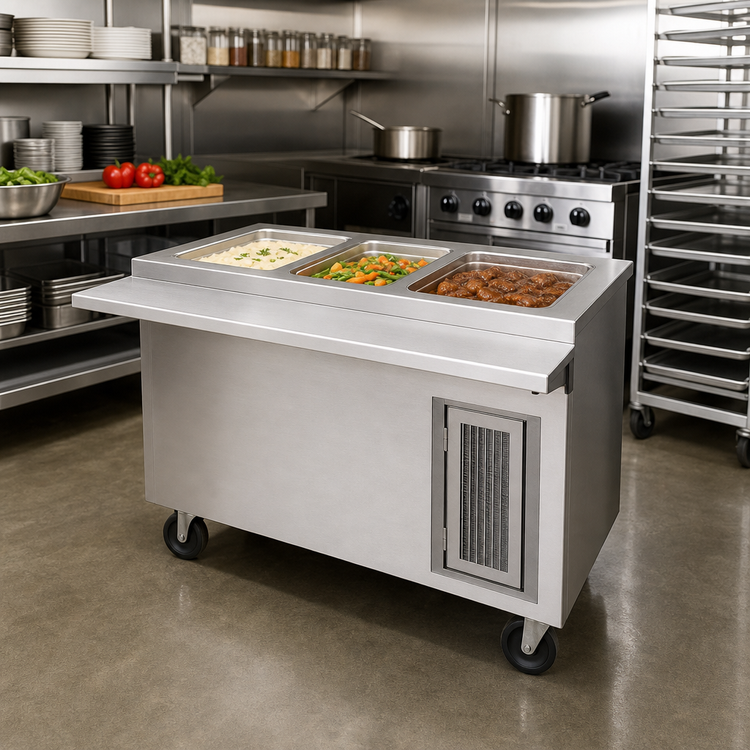

Randell RANFG HTD-3B Mobile 3-Well Hot Food Table with Heated Storage Base
48" L × 30" D × 35.5" H | Fiberglass Service Station | Made in USADesigned for high-volume cafeterias, catering lines and grab-and-go concepts, the Randell RANFG HTD-3B keeps menu items at safe, appetizing temperatures while providing a heated cabinet for back-up pans. The fully mobile unit rolls wherever service is needed and locks in place when you’re ready to plate.
Key Features

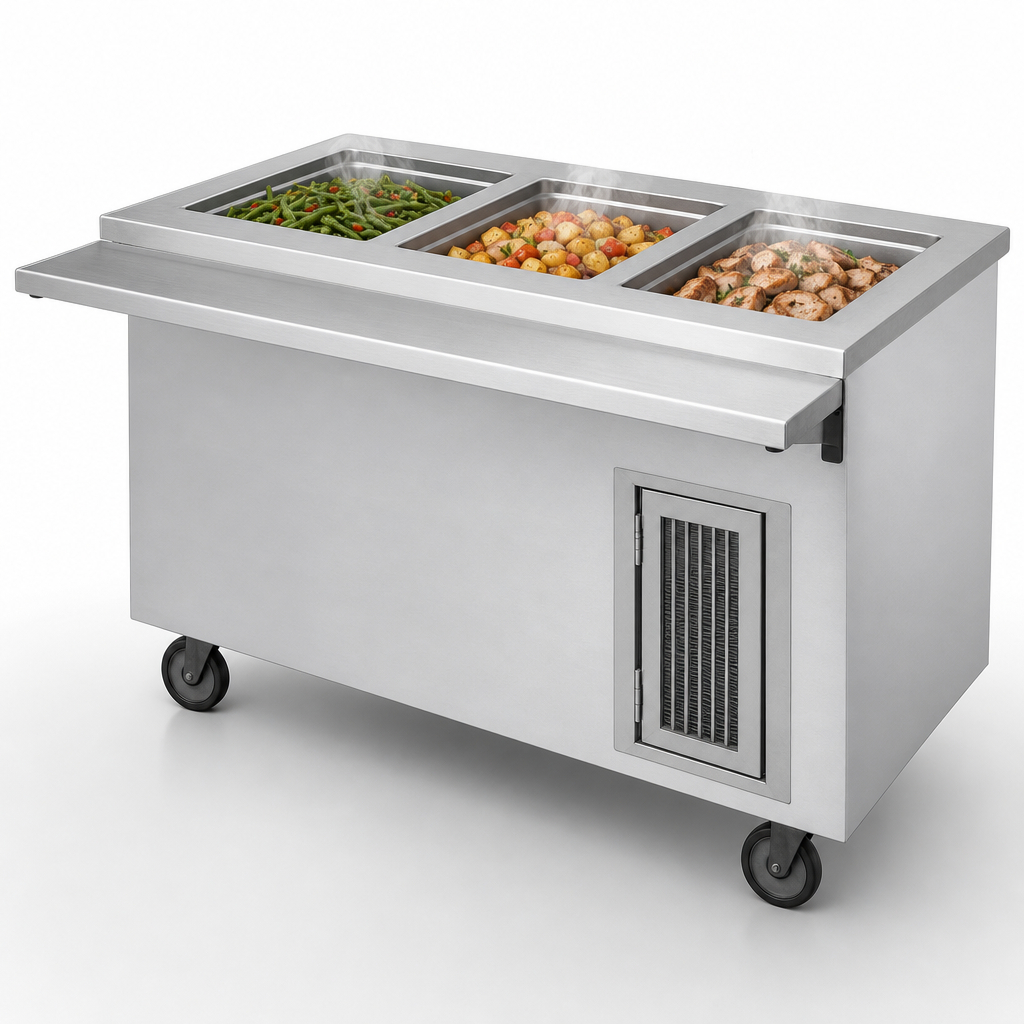

- Three 12" × 20" die-stamped hot wells, each with its own thermostat and indicator light.
- NSF-approved heated base with louvered hinged doors and chrome wire shelf (1 per door).
- One-piece 16 ga. stainless-steel top with 1-1/2" 90° nosing and raised sanitary rims.
- Durable, color-through fiberglass body reinforced with internal metal backers.
- Common 1" drain manifold with gate valve for fast, no-mess cleanup.
- Four swivel casters (2 locking) and concealed spring latch for quick line-up with other modules.
- 8' factory-wired cord & plug; multiple voltage/wattage options available.
- NSF 4 & cULus listed; built, tested and shipped from the USA.
Specifications
| Model | RANFG HTD-3B |
|---|---|
| Overall Dimensions | 48" L × 30" D × 35.5" H |
| Hot Wells | 3 × 12" × 20" (standard 6" deep pans) |
| Well Controls | Individual thermostats, pilot lights |
| Storage Base | Heated cabinet, hinged louvered doors, 1 chrome shelf |
| Top | One-piece 16 ga. stainless steel |
| Body | Molded fiberglass, metal-reinforced |
| Drain | Common 1" drain with gate valve |
| Casters | 4 swivel (2 locking) |
| Electrical (standard) | 120 V / 1 ph / 20.8 A, NEMA 5-30P, 500 W elements |
| Alternate Electrical | 120 V 35.8 A (5-50P) • 208 V 20.0 A (6-30P) • 240 V 17.9 A (6-30P) with 1100 W elements |
| Cord Length | 8 ft |
| Shipping Weight | ≈ 230 lb |
| Certifications | NSF 4, cULus |
Optional Accessories
- Overshelves & food shields
- Tray slides
- Canopy heat lamps
- Corian or 14 ga. stainless tops
- Custom graphics & color finishes
- Electrical distribution system
Note: Accessory heat lamps or display lighting will increase total amp draw. Verify available power before ordering.
