Randell RAN HTD-6 Custom & Serving Serving Counters
Description
Randell RAN HTD-6 Enclosed-Base 6-Well Hot Food Table
86" mobile electric serving station – Made in the USAKeep entrées at safe, appetizing temperatures while adding a professional look to your serving line. The Randell RAN HTD-6 combines a heavy-duty stainless top, individually controlled hot wells, and a fully enclosed cabinet base on casters—perfect for schools, hospitals, buffets, and catered events.
Key features & benefits

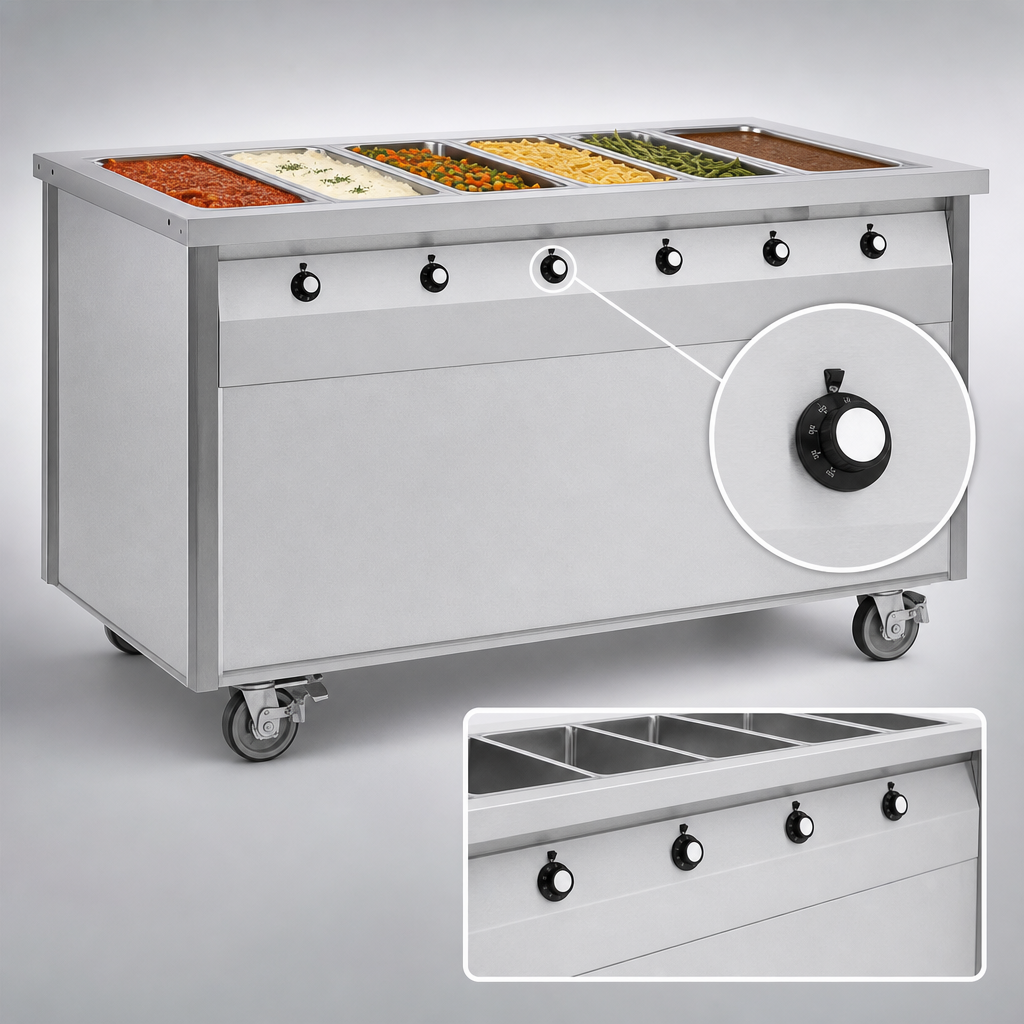

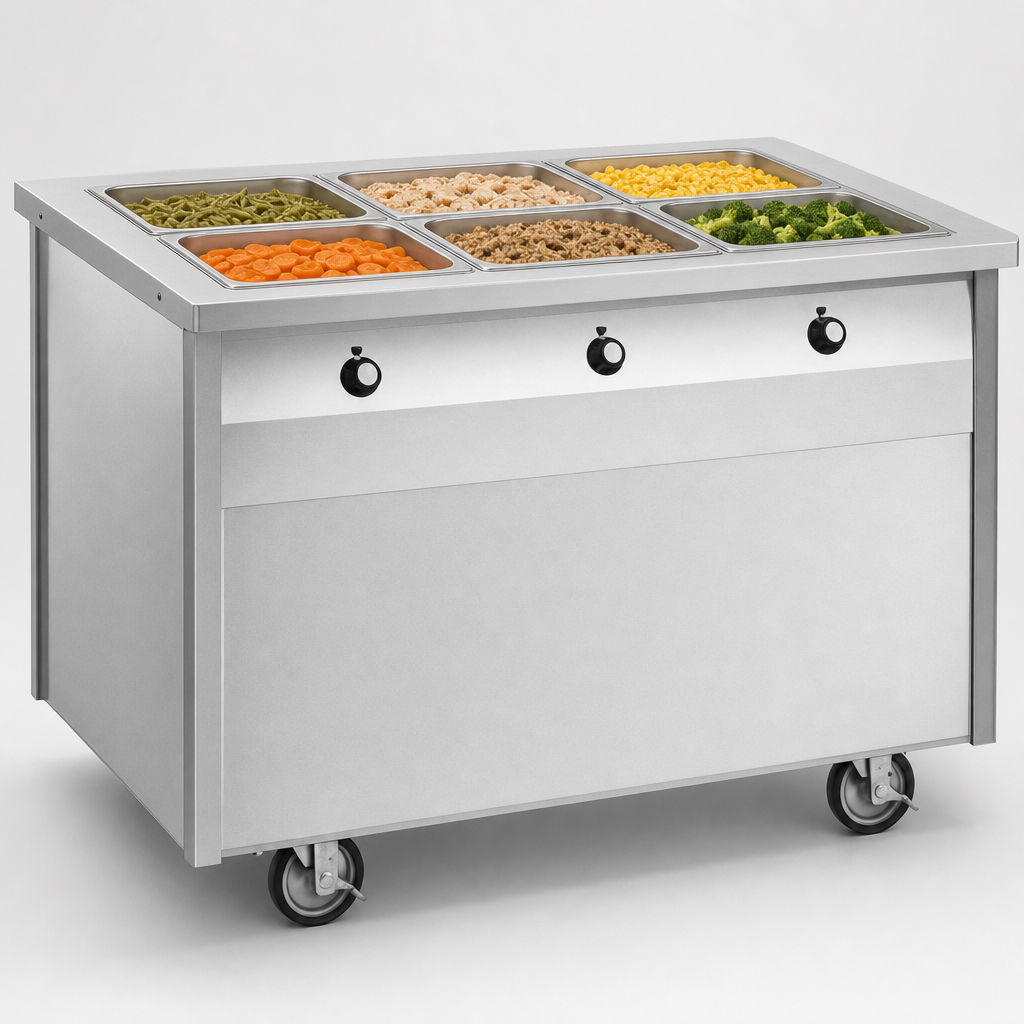

- Six 12" × 20" die-stamped hot wells with individual thermostatic controls for precise holding
- 16-gauge one-piece stainless steel top with 1½" sanitary rim—rugged, easy to clean, and NSF Std. #4 compliant
- Drains in every well manifolded to a common 1" gate-valve drain for quick, mess-free emptying
- Enclosed cabinet base with interchangeable laminate exterior panels (galvanized backing) to match any décor
- Six heavy-duty swivel casters (2 locking) deliver true plug-and-play mobility
- Concealed spring-activated locks let you securely join this unit to other Randell serving modules
- 8 ft cordset and factory-installed NEMA plug — simply wheel in and power up
- cULus listed, NSF certified, and proudly Made in the USA
Specifications
| Model | RAN HTD-6 (enclosed base) |
|---|---|
| Capacity | (6) 12" × 20" hot food wells |
| Overall dimensions (W × D × H) | 86" × 30" × 35-1/2" |
| Top construction | One-piece 16 ga stainless steel with raised, die-stamped openings |
| Base construction | Fully enclosed cabinet; laminate panels with galvanized steel backing |
| Controls | 6 independent thermostats with pilot lights (front removable panel) |
| Drain system | 1" manifolded drain & gate valve (rear corner) |
| Electrical (factory-wired) |
120 V / 25 A / 5-50P (500 W elements) 208 V / 24.95 A / 6-50P (865 W elements) 240 V / 27.5 A / 6-50P (1100 W elements) |
| Casters | (6) 4" swivel, 2 with brakes |
| Certifications | cULus, NSF |
| Shipping weight | ≈ 390 lb |
| Warranty | 1-year parts & labor (optional extensions available) |
Popular options & accessories*
- Overshelves or food shields
- Tray slides & solid-surface tops
- Graphics and powder-coated or stainless end panels
- Electrical distribution system for multi-unit lines
- Reduced-wattage elements
*Options ship separately and may affect overall amperage.
Specifications are subject to change without notice. Please consult the factory or an authorized Randell representative for the most current data.
