Randell  |  Custom & Serving  |  SKU: RAN HTD-5B

Randell RAN HTD-5B Custom & Serving Serving Counters

$9,068.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Randell RAN HTD-5B Mobile 5-Well Hot Food Table – 72"

Custom & Serving Series  |  Made in USA

Keep every entrée hot, fresh, and ready for service with Randell’s flagship 5-well serving station. The HTD-5B combines individually controlled steam wells with a full-size heated cabinet, giving you the holding capacity of two pieces of equipment in one mobile, modular unit.

Key Features

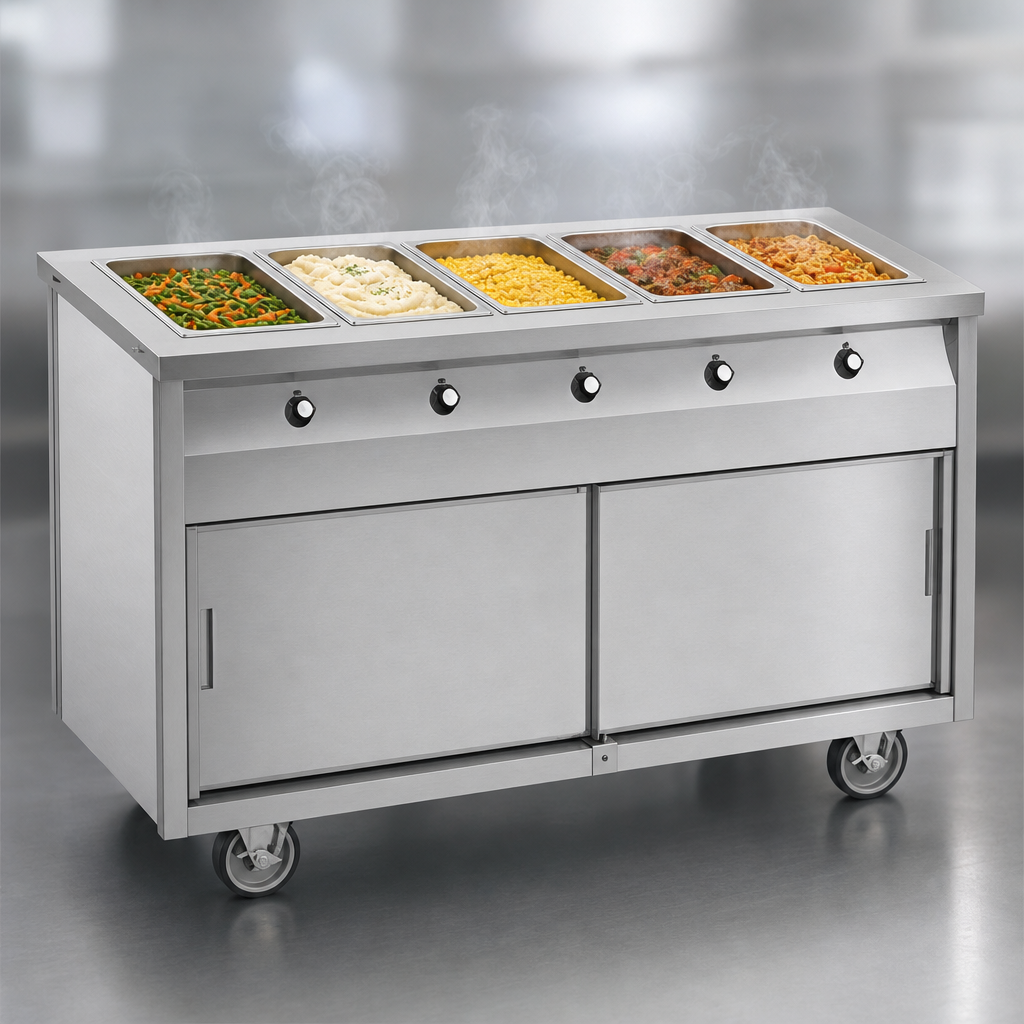

  • (5) 12" × 20" die-stamped hot wells — each with its own thermostat and power light
  • Heated storage base with (2) swing doors and a chrome shelf behind each door
  • One-piece 16-gauge stainless-steel top with 1-1/2" sanitary rim and concealed line-up lock
  • Drains on every well manifolded to a single 1" gate-valved drain for fast clean-up
  • Changeable laminate exterior panels with galvanized backing — customize your look anytime
  • (4) 5" swivel casters, two with brakes, for smooth and secure mobility
  • Factory-installed 8 ft cord & NEMA 6-50P plug — just roll in and power up
  • cULus & NSF Std. 4 certified for safe, code-compliant operation
Operational Advantages
  • Independent well controls let you hold soup, veg, and proteins at their own optimum temperatures.
  • Heated cabinet keeps back-up pans hot and ready, cutting reload time during rushes.
  • Modular locking device mates flush with other Randell serving modules to build a custom line.
  • USA-built quality backed by a full 1-year parts & labor warranty.
Specifications
Model RAN HTD-5B
Capacity (5) full-size 12" × 20" wells • 4" or 6" deep pans
Exterior Dimensions 72" W × 30" D × 35-1/2" H
Top Material 16-gauge stainless steel, one-piece
Base Type Heated cabinet, (2) doors, (1) chrome shelf per door
Controls 5 thermostats (wells) + 1 thermostat (cabinet)
Electrical 208 V / 30.61 A / NEMA 6-50P
240 V / 27.09 A / NEMA 6-50P • 1-phase
Drain Common 1" drain with gate valve
Casters (4) 5" swivel — (2) locking
Certifications cULus, NSF
Ship Weight ≈ 350 lb
Warranty 1-year parts & labor; optional extended coverage available
Electrical Note: Amp draw listed is for the base unit only. Add any accessory heat-lamp or lighting loads when sizing your circuit.

Looking for a different length, open storage, or refrigerated section? Explore the complete Randell HTD family or mix-and-match modules to create your ideal serving line.

Features & Specs

Manufacturer

Randell

Brand_name

Custom & Serving

Certifications

NSF, cULus, Made in USA

Height

35.5in

Width

72.0in

Depth

30.0in

Shipping Weight

350.0lbs

Working Height

35"

Pan Capacity

(5) pan

Base Finish

specify

Overall Width (side - side)

67" - 72"

Well Type

sealed well

Design

enclosed heated base

Type

mobile

Top Construction

stainless steel

Specifications

Hot Food Table, electric, 72"W x 30"D x 35-1/2"H, mobile modular, (5) 12" x 20" hot food wells with individual thermostatic controls, heated cabinet base with (2) hinged doors, (1) chrome shelf per door, 16 gauge stainless steel top, laminate exterior with galvanized backing, (4) swivel casters (2 with brakes), cULus, NSF, Made in USA
